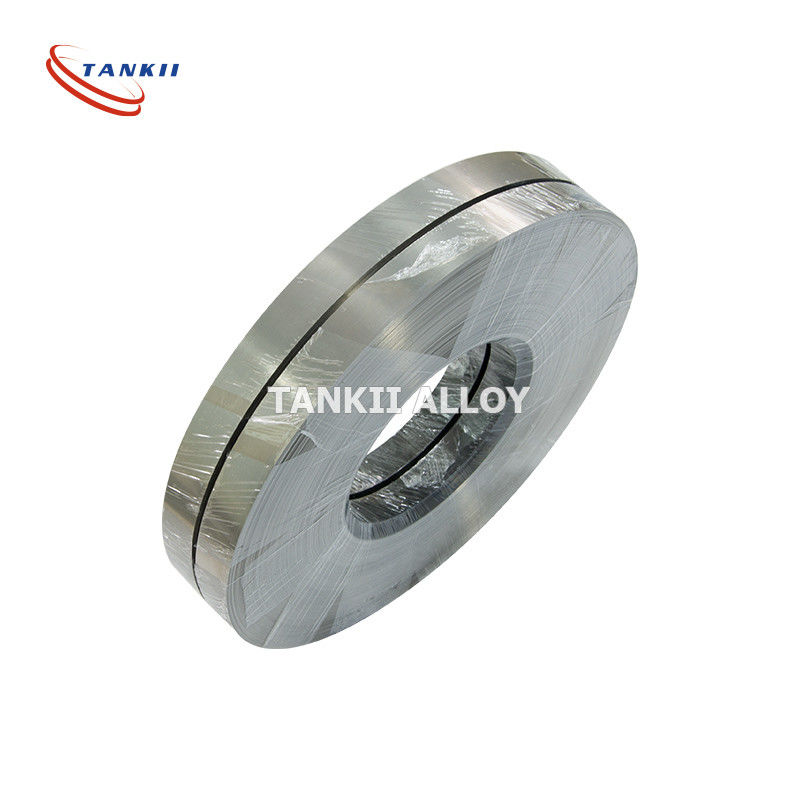

1.0*100 0Cr21Al6 FeCrAl Alloy Heating Resistance Strip Ribbon For Heating Elements

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001:2008

Model Number: 0Cr21Al6

Payment & Shipping Terms

Minimum Order Quantity: Negotiable

Price: To negotiate

Packaging Details: Spool, Coil, Carton, Wooden case with Plastic Film According to Client's Requirements

Delivery Time: 7-15 days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 20+TON+MONTH

Get Best Price
Contact Now
Specifications
Highlight:

high temperature wire

,

electrical heating wire

Size:
1.0*100
Condition:
Annealed Soft
Stock:
Available
Application:
Heating
Advantages:
High Resistance
Density:
7.25
Size:
1.0*100
Condition:
Annealed Soft
Stock:
Available
Application:
Heating
Advantages:
High Resistance
Density:
7.25
Description
1.0*100 0Cr21Al6 FeCrAl Alloy Heating Resistance Strip Ribbon For Heating Elements

1.0*100 0Cr21Al6 FeCrAl heating resistance strip ribbon in stock for heating elements


Resistance Alloy Wires is used for electrical heating element.
Widely used in metallurgy, industrial stoves, household appliances, machinery and electronics manufacturing industries do heat resistance material.

FeCrAl,a family of iron-chromium-aluminum alloys used in a wide range of resistance and high-temperature applications is also used in the form of resistance wires.
FeCrAl resistance electrothermal alloy has high resistivity, good surface oxidation resistance , and high strength at high temperature, good processing performance and weldability , can be widely used in gold , household appliances , machinery manufacturing industry as heating elements and electrical industry as resistance materials.


Standard Specification:

Grade Main chemical composition Hightest temperature ℃

Rrsistivity
µΩ.m

Melting point ℃ Tensile strength N/mm²

Elogation
%

Working life
h/℃

Magnetic
properties

  Cr Al Ni Fe
OCr21Al4 17-21 3-4 - - 1100 1.23±0.06 1500 750 ≥12 ≥80/1250 magnetic
OCr25Al5 23-26 4.5-6.5 - - 1250 1.42±0.07 1500 750 ≥12 ≥80/1300 magnetic
OCr21Al6Nb 21-23 5-7 - - 1350 1.43±0.07 1510 750 ≥12 ≥50/1350 magnetic
OCr27Al7Mo2 22-24 5-7 - - 1400 1.53±0.07 1520 750 ≥10 ≥50/1350 magnetic
KSC 26.8-27.8 6-7 - - 1350 1.44±0.05 1510 750 ≥16 ≥60/1350 magnetic
Cr20Ni80 20-23 - Rest ≤1.0 1200 1.09±0.05 1400 750 ≥20 ≥80/1200 Non-magnetic
Cr30Ni70 30 - Rest ≤1.0 1250 1.18±0.05 1380 750 ≥20 ≥50/1250 Non-magnetic
Cr15Ni60 15-18 - 55 Rest 1150 1.12±0.05 1390 750 ≥20 ≥80/1150 Non-magnetic
Cr20Ni35 18-21 - 35 Rest 1100 1.04±0.05 1390 750 ≥20 ≥80/1100 Weak magnetic
Cr20Ni30 20 - 32 Rest 1100 1.04±0.05 1390 750 ≥20 ≥80/1100 Weak magnetic




1.0*100 0Cr21Al6 FeCrAl Alloy Heating Resistance Strip Ribbon For Heating Elements 01.0*100 0Cr21Al6 FeCrAl Alloy Heating Resistance Strip Ribbon For Heating Elements 1
