Tankii Green / White / Black 20 Awg 24 Awg Thermocouple Extension Cable Type K With Ptfe Insulation

Tankii Green / White / Black 20 Awg 24 Awg Thermocouple Extension Cable Type K With Ptfe Insulation
Tankii Green / White / Black 20 Awg 24 Awg Thermocouple Extension Cable Type K With Ptfe Insulation Tankii Green / White / Black 20 Awg 24 Awg Thermocouple Extension Cable Type K With Ptfe Insulation Tankii Green / White / Black 20 Awg 24 Awg Thermocouple Extension Cable Type K With Ptfe Insulation Tankii Green / White / Black 20 Awg 24 Awg Thermocouple Extension Cable Type K With Ptfe Insulation

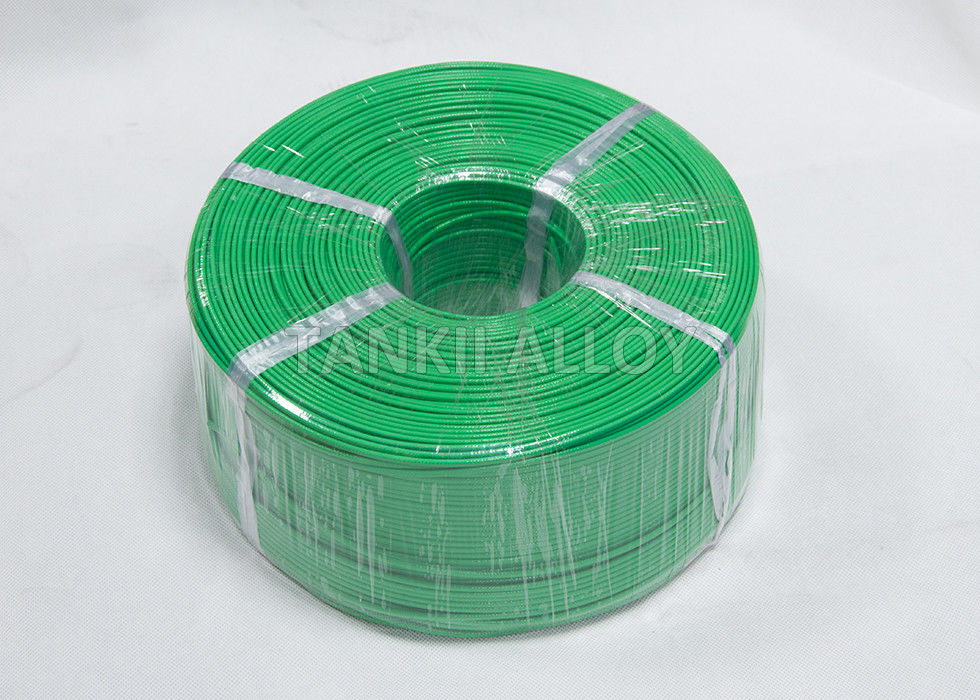

Large Image :  Tankii Green / White / Black 20 Awg 24 Awg Thermocouple Extension Cable Type K With Ptfe Insulation

Product Details:
Place of Origin: China
Brand Name: Tankii
Certification: ISO 9001
Model Number: Thermocouple cable
Payment & Shipping Terms:
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: 5000m/spool,2000m/spool ,customzied
Delivery Time: 5-30days
Payment Terms: T/T, Western Union
Supply Ability: 150000m/month

Tankii Green / White / Black 20 Awg 24 Awg Thermocouple Extension Cable Type K With Ptfe Insulation

Description
Color: Customzied Package: Coil
Temperature: Customzied Standard: ANSI
Type: K Insulation: PTFE/PVC/FIBERGLASS
High Light:

type k thermocouple wire

,

thermocouple cable k type

Tankii Green/White/Black 20 Awg 24 Awg Thermocouple Extension Cable Type K With Ptfe Insulation









Grade: Extension Grade or Thermocuple Grade
temperature range, deg. c -50... +400
type of coductor: K, J, T, E, N, S, R, KX, JX, TX, EX, NX, SX, RX
number of conductors: 1,2,3,4,6
Conductor type Strand or Solid
section area of each core, mm2 (Conductor Size AWG) 20, 24, 30, 32,36,40
material of insulation: fiberglass, PTFE, PTFE, PVC, silicone, kapton, etc
material of jacket: fiberglass, PTFE, PTFE, PVC, silicone, kapton, etc
shielding material: SSB mean Stainless Steel Braid (CUB mean Tinned Copper Braid)
color: ANSI, IEC, etc
quantity and lenght of coil, m(ft) 10*100m, 5*200m, 2*500m, 1*1000m, 3*1000ft, 1*2000ft,




Type K thermocouple wire has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:
(1) Alternatively oxidizing and reducing atmosphere.
(2) Atmosphere with sulphur gases.
(3) Long time in vacuum.
(4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.



Tankii Green / White / Black 20 Awg 24 Awg Thermocouple Extension Cable Type K With Ptfe Insulation 0Tankii Green / White / Black 20 Awg 24 Awg Thermocouple Extension Cable Type K With Ptfe Insulation 1Tankii Green / White / Black 20 Awg 24 Awg Thermocouple Extension Cable Type K With Ptfe Insulation 2
