Product Details
Place of Origin: China
Brand Name: Tankii
Certification: ISO9001
Model Number: 45CT
Payment & Shipping Terms
Minimum Order Quantity: Negotiable
Price: Negotiation
Packaging Details: carton，spool，coil
Delivery Time: depends on the quantity
Payment Terms: T/T, Western Union
Supply Ability: 2000kg / week
Name: |
45CT |
Material: |
NiCrTi Alloy |
Size: |
1.6mm 2.0mm 3.17mm |
Shape: |
Wire |
Color: |
Bright |
Delivery: |
Depends On Quantity |
Package: |
Coil Or Spool |
Name: |
45CT |
Material: |
NiCrTi Alloy |
Size: |
1.6mm 2.0mm 3.17mm |
Shape: |
Wire |
Color: |
Bright |
Delivery: |
Depends On Quantity |
Package: |
Coil Or Spool |

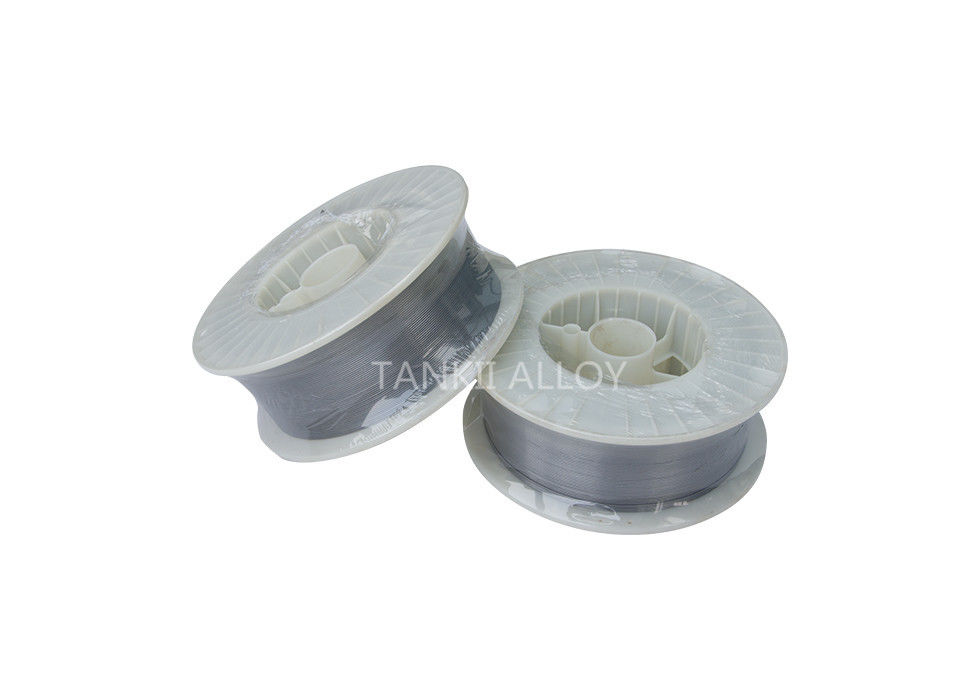

45 CT Thermal spray wire NiCrTi Alloy High Heat Wire Bright Color 1.6mm 2.0mm 3.17mm ISO9001
NiCrTi/45CT wire is a Nickel/Chrome/Titanium wire developed specifically for boiler applications. This second generation material replaces 06BXP and produces coatings which are extremely resistant to corrosive vanadium and sulfur gases in boiler atmospheres.
Typical Uses and Applications:
This material has proven very effective in providing long term protection to boiler tubes against high temperature sulfidation.
The wrought material is highly resistant to sulfur/vanadium atmospheres up to 1800°F.
Wrought material of this type has shown a 2 mil per year corrosion rate over a nine year period when used in the super heater section of boilers.
Coatings of 45CT wire applied to boiler tubes have shown virtually no loss of thickness or spalling after 24 months of service
Normal composition%
Cr |
Ni | C | Mn | Fe | S | Si | Cu | Ti | P | Other |
| 42-46 | Bal. | 0.01-0.1 | ≤0.2 | ≤0.5 | ≤0.015 | ≤0.2 | ≤0.5 | 0.3-1.0 | ≤0.02 | ≤0.5 |
Typical Deposit Characteristics
| Coating Harness | Coating Strength | Yield Strength | Elongation |
| 45 HRC | 48Mpa | 295Mpa | ≤22% |
| Specific heat capacity |
| Melting point (ºC) | 1450 |
| Max continuous operating temperature in air (ºC) | 1250 |
| Magnetic properties | non-magnetic |
