99.6% - 99.99% Super Pure Nickel Strip Foil Magnetic For Lithium Battery

Product Details

Place of Origin: China

Brand Name: TANKII

Certification: ISO,ROHS

Model Number: Pure Ni

Payment & Shipping Terms

Minimum Order Quantity: 20KG

Packaging Details: in roll, wooden case outside

Payment Terms: L/C, T/T, Western Union

Supply Ability: 10,000/Month

Get Best Price
Contact Now
Specifications
Highlight:

nickel 200 strip

,

nickel copper alloy

Application:
:Aviation / Ocean Industry
Ni (Min):
: 99.5% Min
Width:
: Up To 600mm Wide
Thickness:
: 0.002 To 2.50 Mm
Standard:
: ASTM B162
Sample Free:
:Available
Application:
:Aviation / Ocean Industry
Ni (Min):
: 99.5% Min
Width:
: Up To 600mm Wide
Thickness:
: 0.002 To 2.50 Mm
Standard:
: ASTM B162
Sample Free:
:Available
Description

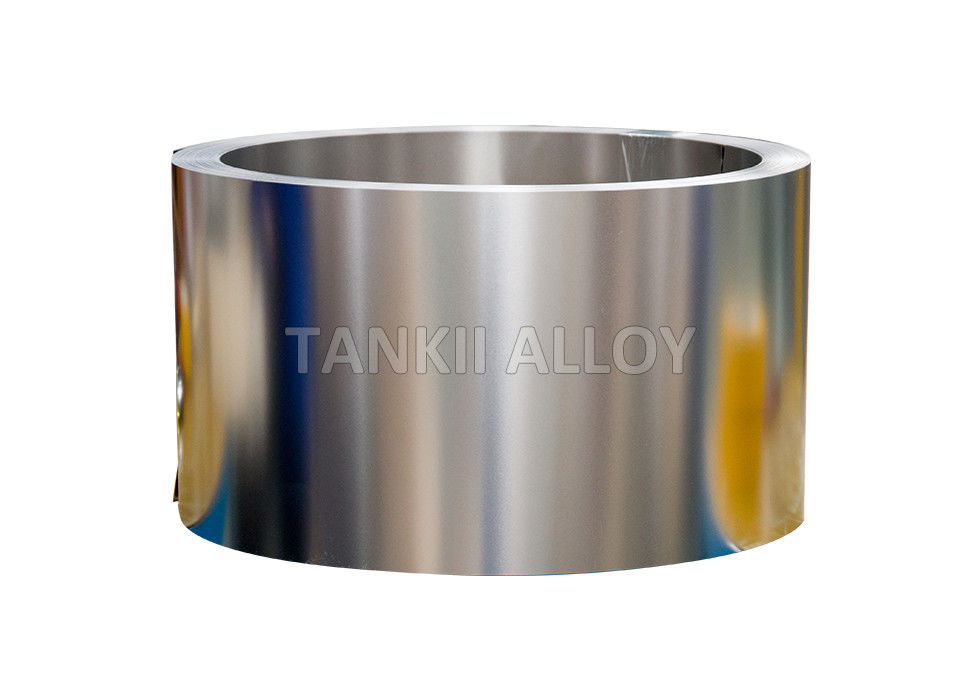

99.6% - 99.99% Super Pure Nickel Strip Foil Magnetic For Lithium Battery

99.6%-99.99% Super Pure Nickel Foil /strip/tape/coil/wire for Lithium Battery



Product Description

    Pure Nickel Strip is primarily used for chemical treatment, preservation and production of synthetic fiber materials. The Pure Nickel strip can be operated up to 600̊F.  It has outstanding magnetic properties and thermal and electrical conductivity.



Specification of Pure Nickel Strip:

Strip Size

Thickness – 0.005mm above, Width- 0.2mm above



Chemical Composition of Pure Nickel Strip:

Nickel

99.6%

Copper

0.25%

Iron

0.40%

Manganese

0.35%

Carbon

0.15%

Silicon

0.35%

Sulfur

0.01%





Physical properties of Pure Nickel Strip:

Density, g/cm3

8.89

Melting Range, °C

1435-1446

Specific Heat, J/kg•°C

456

Curie Temperature, °C

360



Nickel Strip Product Precision



Thickness

Thickness allowance

Burr height

Width scope and tolerance

2≤w<10

10≤w<50

50≤w<100

100≤w<150

150≤w<200

200≤w

0.02≤t<0.05

±0.003

0.005

±
0.05

±0.10

±0.15

±0.20

±0.30

±0.50

0.05≤t<0.1

±0.005

0.01

0.1≤t<0.2

±0.008

0.015

0.2≤t<0.3

±0.012

0.02

0.3≤t<0.4

±0.015

0.03

±
0.10

±0.15

±0.25

±0.50

±0.80

±1.00

0.4≤t<0.6

±0.025

0.05

0.6≤t<0.8

±0.030

0.06

±
0.30

±0.40

±0.50

±0.50

±0.80

±1.00

0.8≤t<1.0

±0.040

1.0≤t<1.2

±0.050

0.08

±
0.50

±0.50

±0.80

±1.00

±1.00

±1.50

1.2≤t<1.4

±0.060

1.4≤t<1.7

±0.070

0.10

1.7≤t<2.0

±0.080





Properties of Pure Nickel Strip:

  1.  Higher electrical conductance
  2.  Raised Curie Temperature
  3.  Superior Magnetostrictive Properties
  4.  Excellent thermal conductivity



Applications of Nickel 200 Strip:

  1.  Manufacturing artificial synthetic fibers.
  2.  Chemical Treatment and Preservation.
  3.  Aerospace Industry.
  4.  Cathode tap
  5.  Cell connector
