0.12mm Thickness 0cr13al4 Strip 310mm Width Heating Resistance Strip

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001

Model Number: 0Cr13Al4

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: 7-20 usd / kg

Packaging Details: spool or coil

Delivery Time: 5-35 days

Payment Terms: T/T, Western Union

Supply Ability: 10000 ton / month

Get Best Price
Contact Now
Specifications
Highlight:

electrical heating wire

,

high temperature wire

Name:
Fecral 0Cr13Al4 Ribbon Fecral Alloy Strip For Home Automation Heat Elements
Material:
Fecral 0Cr13Al4 Ribbon
Color:
Grey
Delivery:
Depends On The Quantity
Surface:
Bright
Name:
Fecral 0Cr13Al4 Ribbon Fecral Alloy Strip For Home Automation Heat Elements
Material:
Fecral 0Cr13Al4 Ribbon
Color:
Grey
Delivery:
Depends On The Quantity
Surface:
Bright
Description
0.12mm Thickness 0cr13al4 Strip 310mm Width Heating Resistance Strip
0.12mm thickness 0cr13al4 strip 310mm width Heating Resistance strip For Etching e-cigarette on stock


Specification



Grade: 1Cr13AL4, 0Cr15AL5, 0Cr23AL5, 0Cr25AL5, 0Cr21AL6Nb0Cr27AL7Mo2


Size: Wire: 0.15~10mm


Bar: 12~120mm



Alloy Nomenclature Performance 1Cr13Al4 0Cr25Al5 0Cr21Al6 0Cr23Al5 0Cr21Al4 0Cr21Al6Nb 0Cr27Al7Mo2
Main Chemical composition Cr 12.0-15.0 23.0-26.0 19.0-22.0 20.5-23.5 18.0-21.0 21.0-23.0 26.5-27.8
Al 4.0-6.0 4.5-6.5 5.0-7.0 4.2-5.3 3.0-4.2 5.0-7.0 6.0-7.0
Re opportune opportune opportune opportune opportune opportune opportune
Fe Rest Rest Rest Rest Rest Rest Rest
            Nb0.5 Mo1.8-2.2
Max. continuous service temp. of element(°C) 950 1250 1250 1250 1100 1350 1400
Resistivity at 20ºC(μΩ·m) 1.25 1.42 1.42 1.35 1.23 1.45 1.53
Density(g/cm3) 7.4 7.1 7.16 7.25 7.35 7.1 7.1
Thermal conductivity(KJ/m·h·ºC) 52.7 46.1 63.2 60.2 46.9 46.1 --
Coefficient of lines expansion(α×10-6/ºC) 15.4 16 14.7 15 13.5 16 16
Melting point approx.( ºC) 1450 1500 1500 1500 1500 1510 1520
Tensile strength(N/mm2) 580-680 630-780 630-780 630-780 600-700 650-800 680-830
Elongation at rupture(%) >16 >12 >12 >12 >12 >12 >10
Variation of area(%) 65-75 60-75 65-75 65-75 65-75 65-75 65-75
Repeat Bending frequency(F/R) >5 >5 >5 >5 >5 >5 >5
Hardness(H.B.) 200-260 200-260 200-260 200-260 200-260 200-260 200-260
continuous service time(Hours/ ºC) -- ≥80/1300 ≥80/1300 ≥80/1300 ≥80/1250 ≥50/1350 ≥50/1350
Micrographic structure Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite
Magnetic properties Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic



Description
With the characteristics of high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature. It is mainly used in electric ceramic cooktop, industrial furnace.

Usage
It is mainly used in electric locomotive, diesel locomotive, metro vehicle and high speed moving car etc brake system brake resistor, electric ceramic cooktop, industrial furnace.

Features
Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.

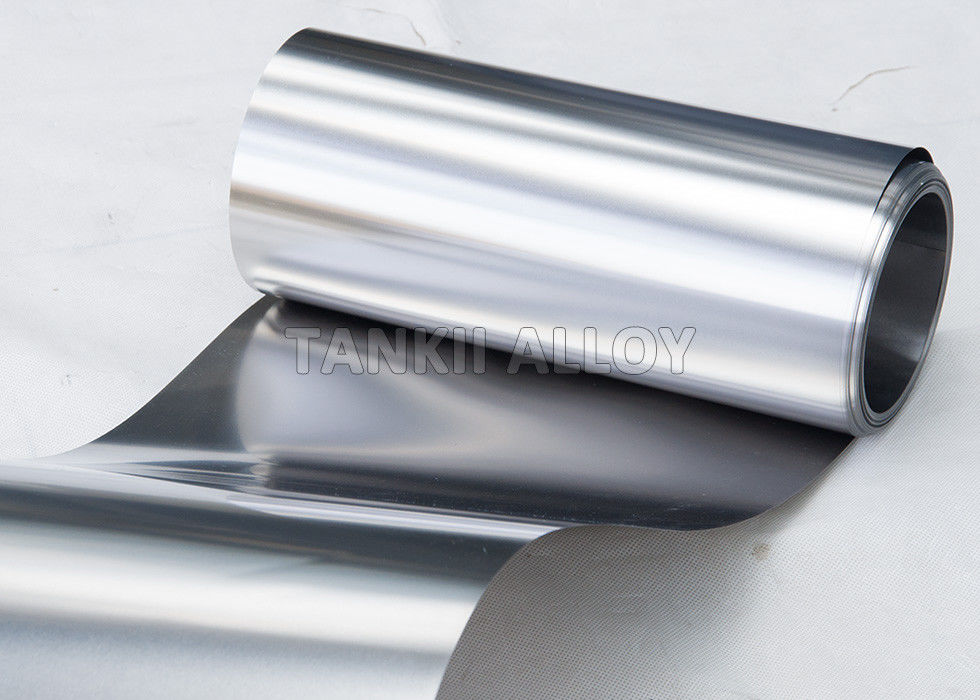

0.12mm Thickness 0cr13al4 Strip 310mm Width Heating Resistance Strip 00.12mm Thickness 0cr13al4 Strip 310mm Width Heating Resistance Strip 1
