Product Details
Place of Origin: Shanghai
Brand Name: Tankii
Certification: ISO 9001
Model Number: 45ct
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: Negotiation
Packaging Details: CASE,BOX
Delivery Time: 5-30 DAYS
Payment Terms: Western Union, T/T, L/C,
Supply Ability: 20 TON / month
Product Name: |
45ct |
Shape: |
Wire |
Certificate: |
IOS 9001 |
Material: |
NiCr Alloy |
Color: |
Silver Grey |
Type: |
Thermal Spray Wire |
Product Name: |
45ct |
Shape: |
Wire |
Certificate: |
IOS 9001 |
Material: |
NiCr Alloy |
Color: |
Silver Grey |
Type: |
Thermal Spray Wire |

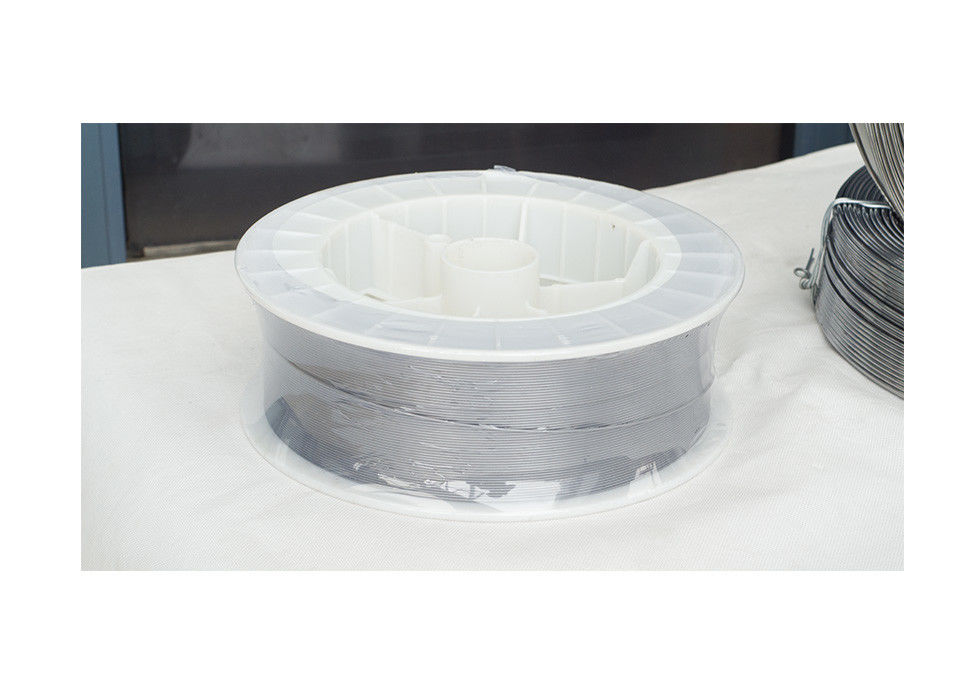

Nickel Alloy 45CT Coating wire spraying wire For Tube Oxidation
1.Introduction:
NiCrTi/45CT wire is a Nickel/Chrome/Titanium wire developed specifically for boiler applications. This second generation material replaces 06BXP and produces coatings which are extremely resistant to corrosive vanadium and sulfur gases in boiler atmospheres.
2.Typical Uses and Applications:
This material has proven very effective in providing long term protection to boiler tubes against high temperature sulfidation. The wrought material is highly resistant to sulfur/vanadium atmospheres up to 1800°F. Wrought material of this type has shown a 2 mil per year corrosion rate over a nine year period when used in the super heater section of boilers. Coatings of 45CT wire applied to boiler tubes have shown virtually no loss of thickness or spalling after 24 months of service (as of this writing).
Product Details
Chemical composition:
Nominal composition |
Cr% |
Ni +Ti% |
Min |
45 |
/ |
Max |
/ |
Bal. |
Mechanical Properties
| Coating Hardness | HRC 30-35 |
| Bonding Strength | 48.26 N/mm2 |
| Deposit Rate | 10 lbs/hr/100A |
| Condition | Solid Wire |
| Diameter | 1.6mm(14 ga),2.0mm,3.175mm |
| Package Size | 10kg,15kg,or up to client’s demand |
Standard Sizes & Packing:
Diameter |
Packing |
Wire Weight |
1/16 (1.6mm) |
D 300 Spool |
15kg((33 lb)/spool |
Other sizes can produced based on customers' requirement.
