Electrical Heating NiCrFe Alloy Wire Cr20Ni30 Nikrothal 40 Heating Resistance Wire

Electrical Heating NiCrFe Alloy Wire Cr20Ni30 Nikrothal 40 Heating Resistance Wire
Electrical Heating NiCrFe Alloy Wire Cr20Ni30 Nikrothal 40 Heating Resistance Wire Electrical Heating NiCrFe Alloy Wire Cr20Ni30 Nikrothal 40 Heating Resistance Wire Electrical Heating NiCrFe Alloy Wire Cr20Ni30 Nikrothal 40 Heating Resistance Wire Electrical Heating NiCrFe Alloy Wire Cr20Ni30 Nikrothal 40 Heating Resistance Wire Electrical Heating NiCrFe Alloy Wire Cr20Ni30 Nikrothal 40 Heating Resistance Wire Electrical Heating NiCrFe Alloy Wire Cr20Ni30 Nikrothal 40 Heating Resistance Wire

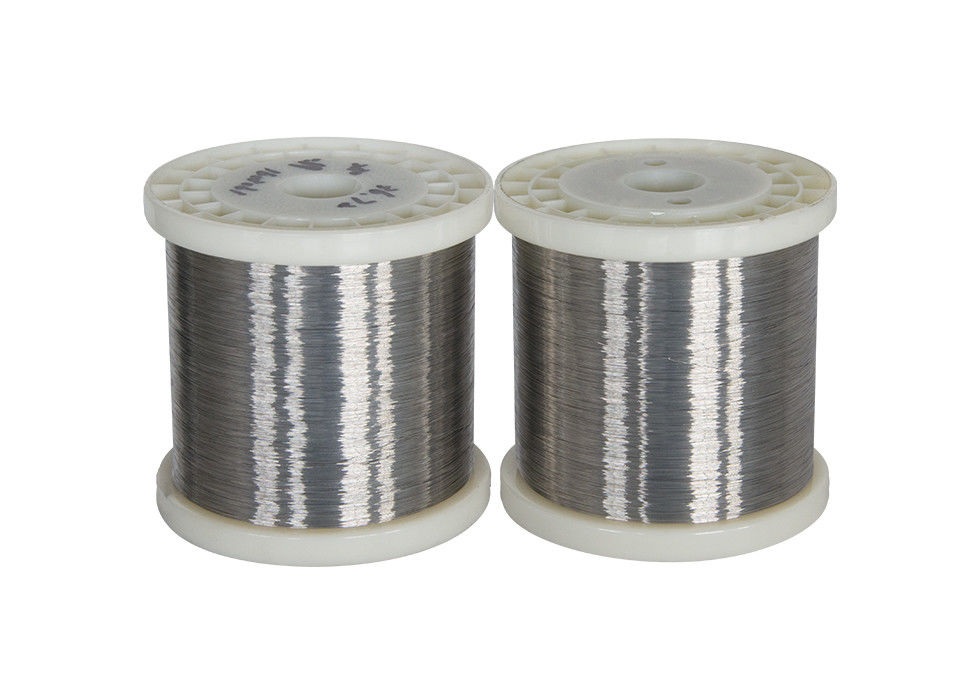

Large Image :  Electrical Heating NiCrFe Alloy Wire Cr20Ni30 Nikrothal 40 Heating Resistance Wire

Product Details:
Place of Origin: Shanghai China
Brand Name: TANKII
Certification: SGS
Model Number: Ni80
Payment & Shipping Terms:
Minimum Order Quantity: 20Kg
Price: USD 20-35 KG
Packaging Details: Wooden case
Delivery Time: 7-12 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300Tons per month

Electrical Heating NiCrFe Alloy Wire Cr20Ni30 Nikrothal 40 Heating Resistance Wire

Description
Sample: Small Order Accepted Color: Silver Gray
Temper: Soft,1/4hard,1/2hard,hard,T-hard HS Code: 7506200000
Packing: Waterproof Paper, Weave Bag, Wooden Case Size: 140x0.5mm
High Light:

nickel alloys

,

nichrome wire

,

nichrome resistance wire

NiCrFe Alloy Wire Cr20Ni30 Nikrothal 40 High Temperature Heating Resistance Wire


1.Nickel chrome wire Strip Bar includes: Cr25Ni20,Cr20Ni35,Cr15Ni60,Cr20Ni80 etc.

2.FeCrAl wire strip includes:
OCr13Al4,OCr19Al3,OCr21Al4,OCr20Al5,OCr25Al5,OCr21Al6,OCr21Al6Nb,OCr27Al7Mo2.
3.Copper Nickel wire Strip includes:
CuNi1,CuNi2,CuNi5,CuNi8,CuNi10,CuNi14,CuNi19,CuNi23,CuNi30,CuNi34,CuNi44.
4.Constantan Strip includes: CuNi44 CuNi45 CuNi40.
5.Manganin Strip: 6J8,6J12,6J13.

Deliveried surface conditions:
Bright annealed
Oxidized
Pickled
Enameled / PVC insulation

Fecral/Nichrome alloy size:
Wire:0.018mm-10mm
Ribbon:0.05*0.2mm-2.0*6.0mm
Strip:0.5*5.0mm-5.0*250mm
Bar:10-100mm



Ni80Cr20 composition%

C P S Mn Si Cr Ni Al Fe Other
Max
0.03 0.02 0.015 0.60 0.75~1.60 20.0~23.0 Bal. Max 0.50 Max 1.0 -





Alloy Nomenclature Performance Cr20Ni80 Cr30Ni70 Cr15Ni60 Cr20Ni35 Cr20Ni30
Main Chemical Ni Rest Rest 55.0-61.0 34.0-37.0 30.0-34.0
Cr 20.0-23.0 28.0-31.0 15.0-18.0 18.0-21.0 18.0-21.0
Fe ≤1.0 ≤1.0 Rest Rest Rest
Max. continuous service temp. of element(ºC) 1200 1250 1150 1100 1100
Resistivity at 20ºC (μΩ·m) 1.09 1.18 1.12 1.0 1.04
Density(g/cm3) 8.40 8.10 8.20 7.90 7.90
Thermal conductivity (KJ/m·h·ºC) 60.3 45.2 45.2 43.8 43.8
Coefficient of lines expansion(α×10-6/ºC) 18.0 17.0 17.0 19.0 19.0
Melting point approx.( ºC) 1400 1380 1390 1390 1390
Elongation at rupture(%) >20 >20 >20 >20 >20
Micrographic structure austenite austenite austenite austenite austenite
Magnetic properties nonmagnetic nonmagnetic Weak magnetic Weak magnetic Weak magnetic


FeCrAl  Chemical composition

Alloy material Chemical composition %
C P S Mn Si Cr Ni Al Fe
max(≤)
1Cr13Al4 0.12 0.025 0.025 0.7 ≤1.00 12.5-15.0 ---- 3.5-4.5 Rest
0Cr15Al5 0.12 0.025 0.025 0.7 ≤1.00 14.5-15.5 ---- 4.5-5.3 Rest
0Cr25Al5 0.06 0.025 0.025 0.7 ≤0.60 23.0-26.0 ≤0.60 4.5-6.5 Rest
0Cr23Al5 0.06 0.025 0.025 0.7 ≤0.60 20.5-23.5 ≤0.60 4.2-5.3 Rest
0Cr21Al6 0.06 0.025 0.025 0.7 ≤1.00 19.0-22.0 ≤0.60 5.0-7.0 Rest
0Cr21Al4 0.06 0.025 0.025 0.7 ≤1.00 21.0-23.0 ≤0.60 3.0-5.2 Rest
0Cr21Al6Nb 0.05 0.025 0.025 0.7 ≤0.60 21.0-23.0 ≤0.60 5.0-7.0 Rest
0Cr27Al7Mo2 0.05 0.025 0.025 0.7 ≤0.40 26.5-27.8 ≤0.60 6.0-7.0 Rest


Main advantage and application
It widely used in surtur and sulfide environment and producing industrial electric
furnace, household electrical appliance and far infrared ray device.





Electrical Heating NiCrFe Alloy Wire Cr20Ni30 Nikrothal 40 Heating Resistance Wire 0
