K J S Type Thermocouple Extension Cable High Accuracy ANSI Standard

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO 9001

Model Number: Thermocouple cable

Payment & Shipping Terms

Minimum Order Quantity: 200 m

Price: Negotiation

Packaging Details: 5000m/spool,2000m/spool ,customzied

Delivery Time: 5-30days

Payment Terms: T/T, Western Union

Supply Ability: 200000m/month

Get Best Price
Contact Now
Specifications
Highlight:

high temperature thermocouple cable

,

type k thermocouple wire

,

thermocouple cable k type

Name:
Type J Extension Cable
Shape:
Solid
Color:
Red AND YELLOW
Type:
K,J,E,T
Package:
Coil
Temperature:
Customzied
Standard:
ANSI
Name:
Type J Extension Cable
Shape:
Solid
Color:
Red AND YELLOW
Type:
K,J,E,T
Package:
Coil
Temperature:
Customzied
Standard:
ANSI
Description
K J S Type Thermocouple Extension Cable High Accuracy ANSI Standard

thermocouple extension Cable Type K J S Insulation Fiber Glass / PVC / PFA ANSI standard





Grade: Extension Grade or Thermocuple Grade
temperature range, deg. c -50... +400
type of coductor: K, J, T, E, N, S, R, KX, JX, TX, EX, NX, SX, RX
number of conductors: 1,2,3,4,6
Conductor type Strand or Solid
section area of each core, mm2 (Conductor Size AWG) 20, 24, 30, 32,36,40
material of insulation: fiberglass, PTFE, PTFE, PVC, silicone, kapton, etc
material of jacket: fiberglass, PTFE, PTFE, PVC, silicone, kapton, etc
shielding material: SSB mean Stainless Steel Braid (CUB mean Tinned Copper Braid)
color: ANSI, IEC, etc
quantity and lenght of coil, m(ft) 10*100m, 5*200m, 2*500m, 1*1000m, 3*1000ft, 1*2000ft,




NiCr-NiSi /NiAl (Type K) thermocouple wire finds the widest use in all basemetal thermocouple, at temperature above 500 °C.


Type K thermocouple wire has strong resistance to oxidation than other base metal thermocouples. It has high EMF against Platinum 67, excellent temperature accuracy, sensitivity and stability, with a low cost. It is recommended for oxidizing or inert atmospheres, but cannot be used directly in the following cases:
(1) Alternatively oxidizing and reducing atmosphere.
(2) Atmosphere with sulphur gases.
(3) Long time in vacuum.
(4) Low oxidizing atmosphere such as hydrogen and carbon monoxide atmosphere.

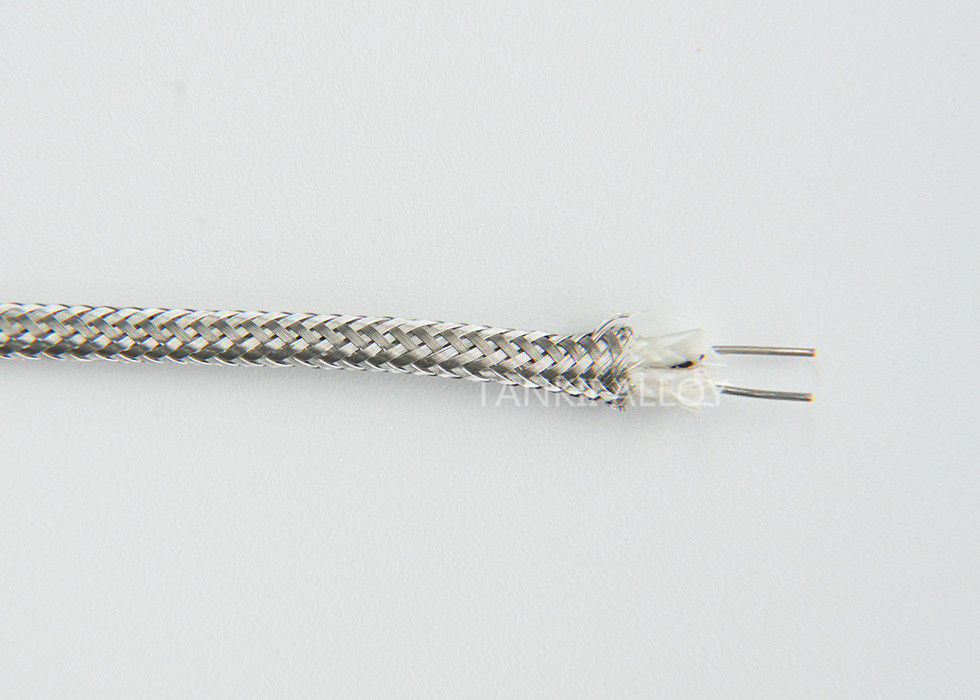

K J S Type Thermocouple Extension Cable High Accuracy ANSI Standard 0
