Product Details
Place of Origin: China Mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: K
Payment & Shipping Terms
Minimum Order Quantity: 50kg
Price: USD30~35/kg
Packaging Details: Standard exoprt package
Delivery Time: About 20 days after getting the payment
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 1000Ton per year
Material: |
K |
Surface: |
Bright |
Thickness: |
Above 0.1mm |
Leading Time: |
5~20 Days As Per The Order Qty |
Item: |
K Type Thermocouple Alloy Strip 0.3mm*25mm Chromel Alumel Strip With Bright Surface Used For Flat Pin Spade Terminal |
Ribbons:: |
0.05*0.2-2.0*6.0mm |
Key Word: |
Thermocouple Strip |
Material: |
K |
Surface: |
Bright |
Thickness: |
Above 0.1mm |
Leading Time: |
5~20 Days As Per The Order Qty |
Item: |
K Type Thermocouple Alloy Strip 0.3mm*25mm Chromel Alumel Strip With Bright Surface Used For Flat Pin Spade Terminal |
Ribbons:: |
0.05*0.2-2.0*6.0mm |
Key Word: |
Thermocouple Strip |
K Type Thermocouple Alloy Strip 0.3mm*25mm Chromel Alumel Strip With Bright Surface Used For Flat Pin Spade Terminal
Quick Description
A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.
Thermocouple alloys have been engineered for use between the point of sensor and the cold junction compensation (cjc) where the signal is received and measured.
Thermocouple strips are available in either round wire or flat ribbons, produced to customer specification.
Our products conform to the standards of IEC584.
| Tankii Product | Thickness Range | Width Range | Specification | Available Grades |
| Thermocouple Strip |
From 0.05mm(flat wire) From 0.1mm (strip) |
up to 200mm |
As per ASTM E230 As per IEC 584-3 |
Type K Type T Type N |
Application in Themrocouple connector:
Contacts in connects:
Usage as Thermocouple Spade

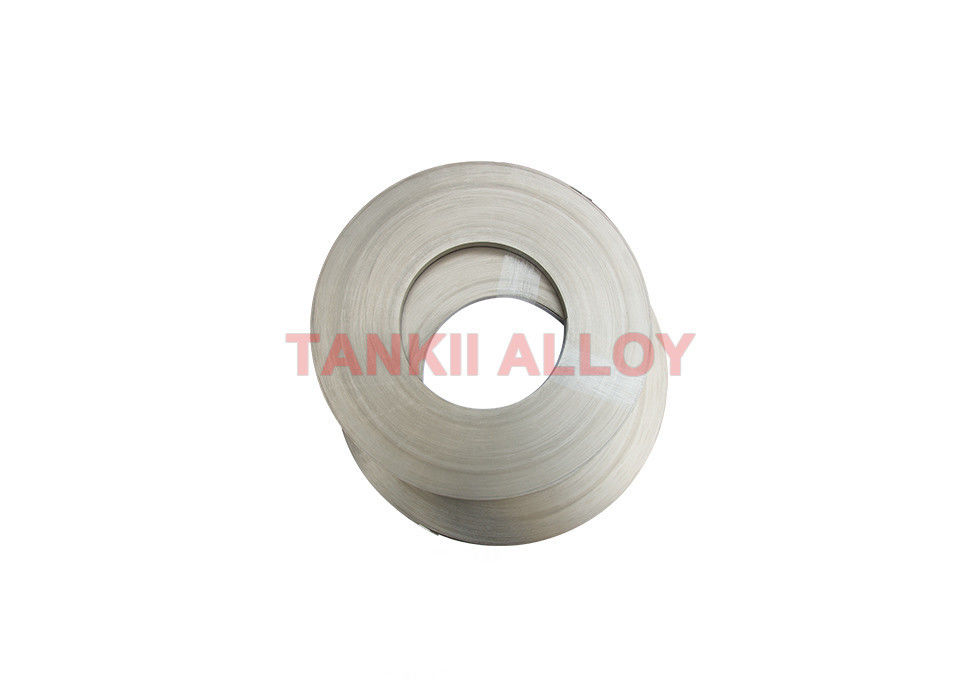

Product picture:
