Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001: 2008
Model Number: Ni80Cr20
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: Negotiated
Packaging Details: Spool, carton, plywod case with plastic film as clients required
Delivery Time: 7-12 DAYS
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 200+TON+MONTH
Density: |
7.9 |
Finish: |
Bright, Annealed/ Oxidised |
Certificate: |
ISO, ROHS |
Thickness: |
As Required |
Available Sample: |
Yes |
Working Temperature: |
1100 |
Density: |
7.9 |
Finish: |
Bright, Annealed/ Oxidised |
Certificate: |
ISO, ROHS |
Thickness: |
As Required |
Available Sample: |
Yes |
Working Temperature: |
1100 |

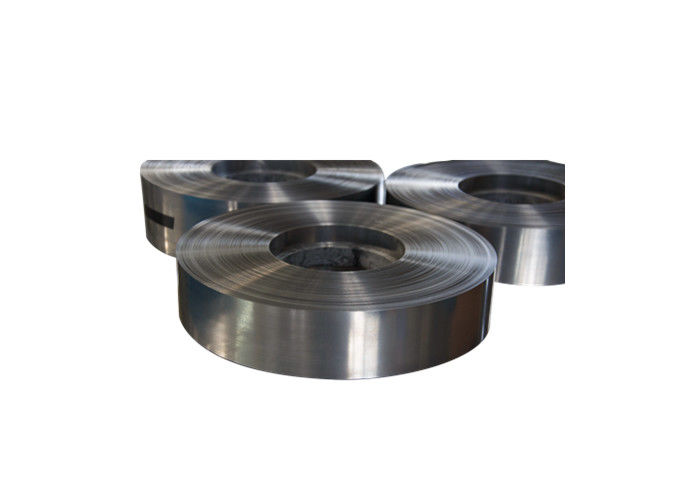

0.5*80mm Quality Supplier Ni60Cr15 Bright/ Oxidised Strip/ Coil Strip for Precision Resistors
The selection of electric heating materiales depends on inherent resistance to the current flow to produce heat. Copper wire doesn’t produce sufficiently heat when conducts electricity. Hence for an alloy as wire, rod, strip or ribbon to treat as an electric heating element it should oppose the flow of electricity.
Generally common steels and alloys like stainless steel prevent the electricity flow. This property term is known as resistivity. In North America, the tradition is to use ohms per circular mil ft to describe resistivity and this term has been following in the data. The technically suitable designation would be ohm.cmil/ft or ohm times circular mils per foot. In European countries, common unit of resistivity is ohm mm² per m.
NiCr 60:15 is a nickel-chromium-iron resistance alloy with heat resisting strength at high temperatures. This alloy is used in numerous domestic appliances and industrial resistors.
Condition of Supply
NiCr 60:15 is supplied in the following conditions:
Cold Drawn
Cold Drawn, Annealed.
Nominal Composition
| Nickel% | Chromium% | Iron% | Carbon | Manganese |
| 60 | 15 | Balance | 0.08 max | 1 max |
Specifications
| British Standard | Werkstoff Nr | ASTM | UNS Designation |
| - | 2.4667 | B 344 | N06004 |
Size Range
Wires: 10.0 mm diameter to 0.122mm diameter
Strips: width: 8 mm-80 mm, thickness: 2.5 mm-0.1 mm
Ribbons: width: 1 mm-6mm, thickness: 1 mm-0.1 mm
Typical Physical Properties
| Temp. Coeff. Of Resistance Km x 10-6/°C |
Specific Resistance microhm-cm (20°C) |
Density gm/cm3 |
Linear Expansion Coeff. X 10-6 /°C |
| 170 (20-500 °C) | 112 | 8.2 | 17 (20-1000°C) |
Typical Tensile Strength and elongation
| Annealed | |
| UTS | 600-900 N/mm2 |
| Elongation | >20 |
