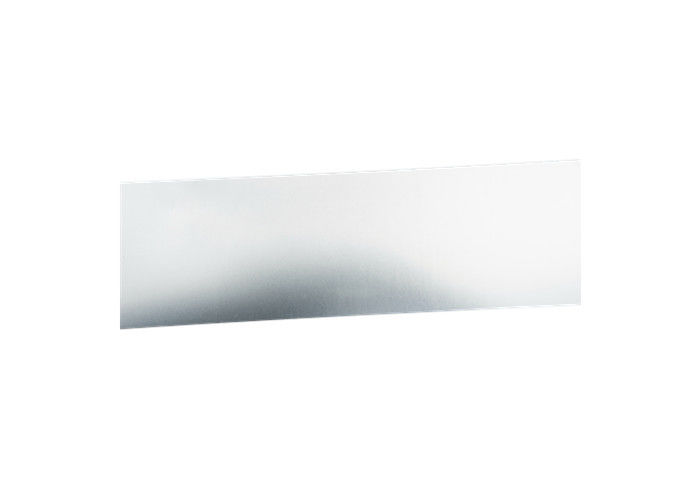

Nikrothal 40 Nicr Alloy Strip High Temperature Electric Resistance Strip

Name: Nikrothal 40 Nicr Alloy Strip High Temperature Electric Resistance Strip
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Ni35Cr20
Price: 300.00 USD
Availability: InStock

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: ISO9001:2015

Model Number: Ni35Cr20

Payment & Shipping Terms

Minimum Order Quantity: 20kg

Price: To negotiate

Packaging Details: Spool, carton, plywod case with plastic film as clients required

Delivery Time: 7-12 days

Payment Terms: L/C, T/T, Western Union, Paypal

Supply Ability: 200+TON+MONTH

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                      nickel alloys, nichrome wire


Material:	Nickel Chromium	Nickel Purity:	35%
Advantage:	Good Corrosion Resistance, High Temperature Resistance	Size:	As Clients Required
Min Elongation:	20%	Powder Or Not:	Not

Material:	Nickel Chromium
Nickel Purity:	35%
Advantage:	Good Corrosion Resistance, High Temperature Resistance
Size:	As Clients Required
Min Elongation:	20%
Powder Or Not:	Not

Description

Nikrothal 40 Nicr Alloy Strip High Temperature Electric Resistance Strip

Nikrothal 40 High Temperature Electric Resistance Strip Ni35% Alloy Strip

Product Description

Resistance Strip heating wire and strip in iron-chromium-aluminum (FeCrAl) alloys and nickel-chromium (NiCr) alloys for manufacturing of electric heating elements.

Using Newlite Industry alloys instead of NiCr alloys result in both weight-saving and longer element life.

Product forms and size ranges:

Round wire: 0.10-12 mm
Ribbon (flat wire): thickness: 0.023-0.8 mm Width: 0.038-4 mm
Width/thickness ratio max 40, depending on alloy and tolerance
Strip: thickness 0.10-5 mm, width 5-200 mm
Other sizes are available on request

C	P	S	Mn	Si	Cr	Ni	Al	Fe	Other
Max
0.12	0.025	0.025	0.70	Max 1.0	13.0~15.0	Max 0.60	4.5~6.0	Bal.	-

Mechanical Properties

Max Continuous Service Temp	980ºC
Resisivity at 20ºC	1.28 ohm mm2/m
Density	7.4 g/cm3
Thermal Conductivity	52.7 KJ/m@h@ºC
Coefficient of Thermal Expansion	15.4×10-6/ºC
Melting Point	1450ºC
Tensile Strength	637~784 Mpa
Elongation	Min 12%
Section Variation Shrink Rate	65~75%
Repeatedly Bend Frequency	Min 5 times
Continuous Service Time	-
Hardness	200-260HB
Micrographic Structure	Ferrite
Magnetic Property	Magnetic

Temperature Factor of Electrical Resistivity

20ºC	100ºC	200ºC	300ºC	400ºC	500ºC	600ºC	700ºC	800ºC	900ºC	1000ºC
1	1.005	1.014	1.028	1.044	1.064	1.090	1.120	1.132	1.142	1.150

Features
Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.

Packing detail
Spool, coil, wooden case(as per client's requirement)

Products and services
1). Pass: ISO9001 certification, and SO14001cetification;
2). Fine after-sale services;
3). Small order accepted;
4). Stable properties in high temperature;
5). Fast delivery.
