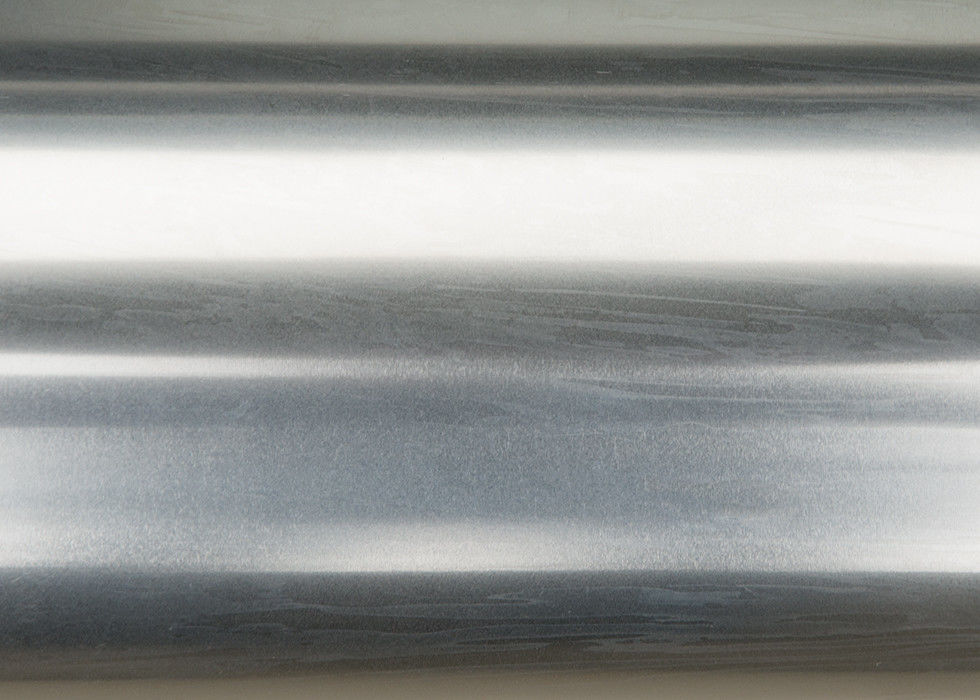

0.15×200mm 99.96% 1/2 hard Electrolytic Pure Nickel Strip Ni200 For Lithium Ion Battery

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO RoHS AISI ASTM GB

Model Number: Ni200

Payment & Shipping Terms

Minimum Order Quantity: 2Kg

Price: USD156/Kg

Packaging Details: carton or wooden case

Delivery Time: 5-10 working days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 100Tons/Month

Get Best Price
Contact Now
Specifications
Highlight:

nickel 200 strip

,

nickel copper alloy

Size:
0.005-0.02x1300mm
Chemical Composition:
Nickel
Purity:
Over 99.6%
The Highest Use Temperature:
1300C
Sample:
Free
Density:
8.9
Resisivity:
1.33
Craft:
Electrolysis
Surface:
Both Bright Or Oxidated
Trade Term:
FOB, EXW, CIF
Type:
Ni200,Ni201, N02201
Application:
For Lithium Ion Battery
Size:
0.005-0.02x1300mm
Chemical Composition:
Nickel
Purity:
Over 99.6%
The Highest Use Temperature:
1300C
Sample:
Free
Density:
8.9
Resisivity:
1.33
Craft:
Electrolysis
Surface:
Both Bright Or Oxidated
Trade Term:
FOB, EXW, CIF
Type:
Ni200,Ni201, N02201
Application:
For Lithium Ion Battery
Description
0.15×200mm 99.96% 1/2 hard Electrolytic Pure Nickel Strip Ni200 For Lithium Ion Battery

0.15×200mm 99.96% 1/2 hard Electrolytic Pure Nickel Strip Ni200 For Lithium Ion Battery


It has good mechanical strength,corrosion-resistant and heat-resistance strength.

It is widely used in electric apparatus,chemical machinery,good processing equipment,rechargeable batteries, cellular Phone, power tools, camcorders and so on.



Chemical Composition

Grade Element Composition/%
Ni+Co Mn Cu Fe C Si Cr S
Ni201 ≥99.0 ≤0.35 ≤0.25 ≤0.30 ≤0.02 ≤0.3 ≤0.2 ≤0.01
Ni200 ≥99.0 /≤0.35 ≤0.25 ≤0.30 ≤0.15 ≤0.3 ≤0.2 ≤0.01



Propertis

Density Melting point Coefficient of expansion Modulus of rigidity Modulus of elasticity Electrical resistivity
Ni200 8.9g/cm3 1446°C 13.3 µm/m °C (20-100°C) 81kN/mm2 204kN/mm2 9.6μW• cm
Ni201 1446°C 13.1µm/m °C(20-100°C) 82kN/mm2 207kN/mm2 8.5μW• cm



Diameter(mm) Tolerance(mm) Diameter(mm) Tolerance(mm)
0.03-0.05 ±0.005 >0.50-1.00 ±0.02
>0.05-0.10 ±0.006 >1.00-3.00 ±0.03
>0.10-0.20 ±0.008 >3.00-6.00 ±0.04
>0.20-0.30 ±0.010 >6.00-8.00 ±0.05
>0.30-0.50 ±0.015 >8.00-12.0 ±0.4



Specification of Cold-drawing Strip Type



Thickness(mm) Tolerance(mm) Width(mm) Tolerance(mm)
0.05-0.10 ±0.010 5.00-10.0 ±0.2
>0.10-0.20 ±0.015 >10.0-20.0 ±0.2
>0.20-0.50 ±0.020 >20.0-30.0 ±0.2
>0.50-1.00 ±0.030 >30.0-50.0 ±0.3
>1.00-1.80 ±0.040 >50.0-90.0 ±0.3
>1.80-2.50 ±0.050 >90.0-120.0 ±0.5
>2.50-3.50 ±0.060 >120.0-250.0 ±0.6
