Product Details:
|
| Material: | Ni: 29% Co:18% | Shape: | Wire, Strip, Sheet, Rod |
|---|---|---|---|
| Thickness: | 0.05-5mm | Width: | 400mm |
| Resistivity: | 0.48 μΩ·m | Standard: | UNS K94610 |
| High Light: | electrical heating wire,high temperature wire |
||

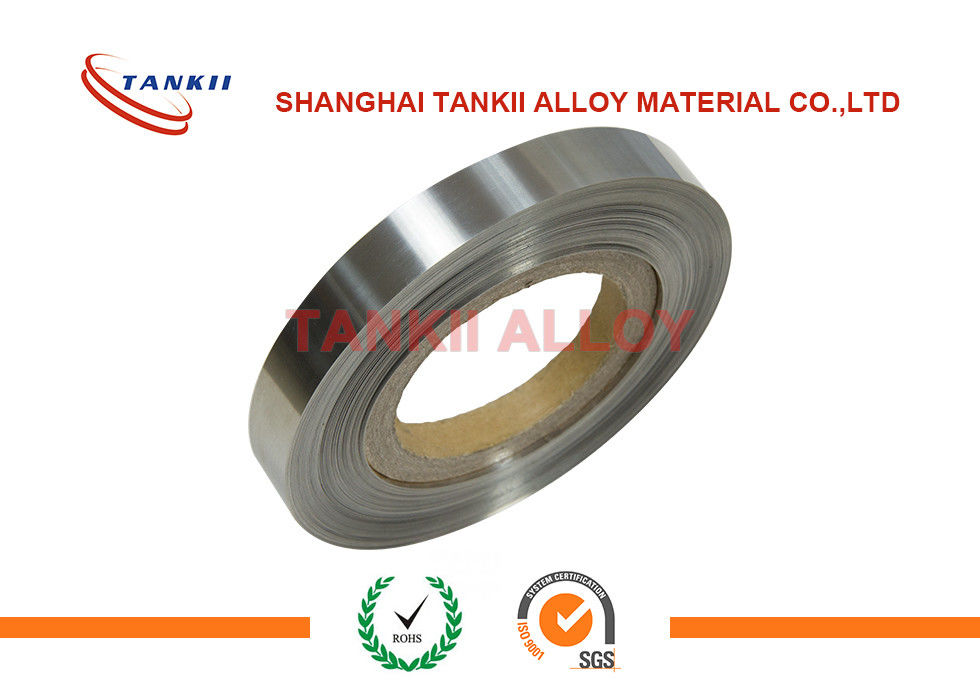

Ni29Co18 Kovar Expansion Alloy Strip Fe Ni Co Alloy for Sealing Glass Elements of Vacuum Relays
Description
Kovar is a nominal 29%Ni-17%Co-54%Fe alloy that is a well-known glass-sealing alloy suitable for sealing to hard glasses. Kovar has a nominal expansion coefficient of approximately 5 ppm/°C and inflection temperature of ~450 °C (840 °F).
Kovar (ASTM F15) has been used for making hermetic seals with the harder Pyrex glasses and ceramic materials. This alloy has found wide application in power tubes, microwave tubes, transistors, and diodes. In integrated circuits, it has been used for the flat pack and the dual-in-line package.
Chemical Composition
| Grade | C% | P% | S% | Mn% | Si% | Cu% | Cr% | Mo% | Ni% | Co% | Fe% | |
| Kovar | Max 0.03 | Max 0.020 | Max 0.020 | Max 0.50 | Max 0.30 | Max 0.20 | Max 0.20 | Max 0.20 | 28.5-29.5 | 16.8-17.8 | Bal. |
Specifications
| Grade | UNS | Werkstoff Nr. | ASTM | ||
| Kovar | K94610 | 1.3981 | F15 | ||
Physical Properties
| Grade | Density | Melting Point |
| Kovar | 8.17 g/cm3 | 1449°C |
Mechanical Properties
| Grade | Tensile Strength N/mm² | ||||
| Soft | 1/4 Hard | 1/2 Hard | 3/4 Hard | Full Hard | |
| Kovar Strip | <570 | 520-630 | 590-700 | 600-770 | >700 |
| Kovar Wire | <585 | 585-725 | 655-795 | 725-860 | >860 |
Coefficient of Expansion
| Alloy | Linear Coefficient of Thermal Expansion ā,10-6/℃ | |||||||
| 20-200℃ | 20-300℃ | 20-400℃ | 20-450℃ | 20-500℃ | 20-600℃ | 20-700℃ | 20-800℃ | |
| Kovar | 5.9 | 5.3 | 5.1 | 5.3 | 6.2 | 7.8 | 9.2 | 10.2 |
Size Range
Kovar Wire: ￠0.1mm-￠9mm
Kovar Bar: ￠11mm-￠200mm
Kovar Strip: 75-110mm*0.15-22mm.
Invar 36, also known as FeNi36, is iron-nickel alloys have low coefficients of expansion over only a rather narrow range of temperature. It has a low coefficient of expansion from cryogenic temperatures to about 260℃. In the dry air at home temperature, invar 36 has good resistance to corrosion. But in moist air, it may go corrosion.
Invar 36 is suitable for the applications who require low coefficient of expansion, such as production, storage and transportation of liquid gas, temperature regulation devices working below 200℃, aperture mask, unit frameworks working below -200℃ and so on.
Chemical Composition
| Grade | C% | Si% | P% | S% | Mn% | Ni% | Fe% |
| Invar 36 | Max 0.05 | Max 0.30 | Max 0.020 | Max 0.020 | 0.20-0.60 | 35.0-37.0 | Bal. |
Specifications
| Grade | UNS | Werkstoff Nr. | Strip/Sheet |
| Invar 36 | K93600 | 1.3912 | ASTM B388/B753 |
Physical Properties
| Grade | Density | Melting Point |
| Invar 36 | 8.1 g/cm3 | 1430°C |
Coefficient of Expansion
| Alloy |
Linear Coefficient of Thermal Expansion ā,10-6/℃ |
|||||
| 20-50℃ | 20-100℃ | 20-200℃ | 20-300℃ | 20-400℃ | 20-500℃ | |
| Invar 36 | 0.6 | 0.8 | 2.0 | 5.1 | 8.0 | 10.0 |
Size Range
Invar 36 wire, bar, rod, strip, forging, plate, sheet, tube, fastener and other standard forms are available.
