0.01-0.8mm Nickel Chromium NiCr 8020 Annealed Soft Strip Resistohm 80 For Resistor

0.01-0.8mm Nickel Chromium NiCr 8020 Annealed Soft Strip Resistohm 80 For Resistor
0.01-0.8mm Nickel Chromium NiCr 8020 Annealed Soft Strip Resistohm 80 For Resistor 0.01-0.8mm Nickel Chromium NiCr 8020 Annealed Soft Strip Resistohm 80 For Resistor 0.01-0.8mm Nickel Chromium NiCr 8020 Annealed Soft Strip Resistohm 80 For Resistor 0.01-0.8mm Nickel Chromium NiCr 8020 Annealed Soft Strip Resistohm 80 For Resistor

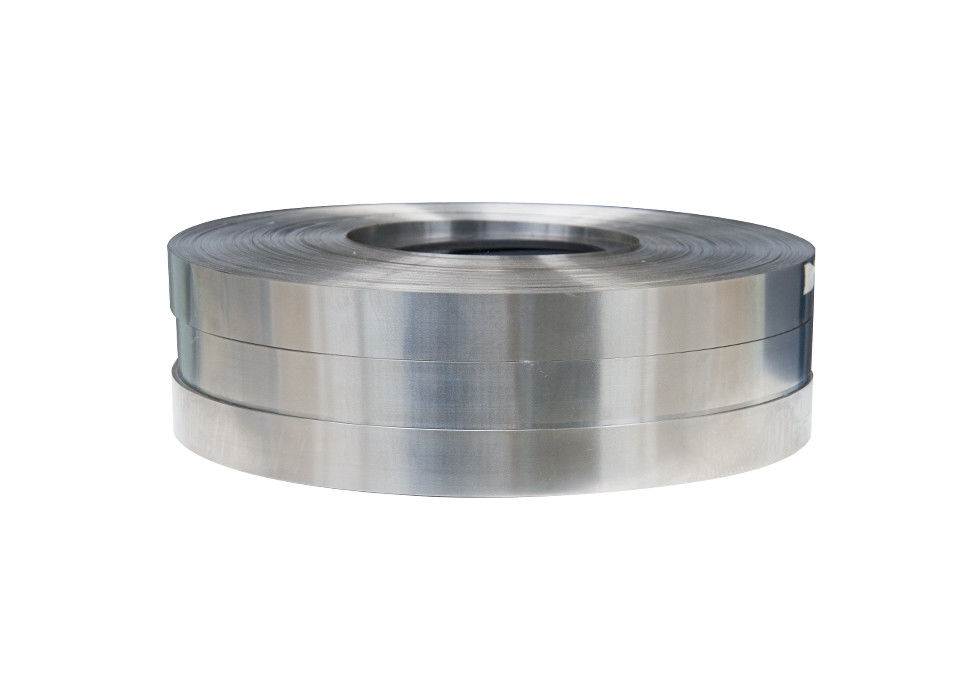

Large Image :  0.01-0.8mm Nickel Chromium NiCr 8020 Annealed Soft Strip Resistohm 80 For Resistor

Product Details:
Place of Origin: Shanghai
Brand Name: Tankii
Certification: Rohs, SGS
Model Number: Ni80Cr20
Payment & Shipping Terms:
Minimum Order Quantity: 20kg
Price: Negotiable
Packaging Details: Wooden case, pallet
Delivery Time: 7~30 working days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 3000T/Year

0.01-0.8mm Nickel Chromium NiCr 8020 Annealed Soft Strip Resistohm 80 For Resistor

Description
Material: NiCr Package: Wooden Case
Specification: 0.01-0.8mm Coefficient Of Lines Expansion: 18 α×10-6/℃
Elongation At Rupture: >20 % Melting Temperature :: 1400 ℃
Forging Temperature :: 1250 - 100 °C Annealing Temperature :: 870 - 1040 °C
Tensile Strength: 400 - 770 Electrical Resistance: 1175 Ohm·m
High Light:

nichrome resistance wire

,

nichrome wire

Nickel Chromium NiCr8020 Annealed Soft Strip Resistohm 80 0.01-0.8mm for Resistor Application

Product: Nichrome Strip/Nichrome Tape/Nichrome Sheet/Nichrome Plate

Grade: Ni80Cr20/Resistohm 80/Chromel A

Chemical Composition: Nickel 80%, Chrome 20%

Resistivity: 1.09 ohm mm2/m

Condition: Bright, Annealed, Soft

Surface: BA, 2B, polished

Dimension: Width 1~470mm, Thickness 0.005mm~7mm


Nickel chrome Ni80Cr20 Electrical resistivity of alloy main technical performance

brand Cr Ni Al Fe C P S Mn Si
Ni80Cr20 20.0~23.0 Remain ≤0.5 ≤1 0.08 0.02 0.15 0.60 0.75~1.6



brand Use Resistivity at 20℃ Density Melting point (approx.) Features Thermal conductivity
Ni80Cr20 Resistance materials 1.09 μΩ·m 8.4 g/cm³ 1400 ℃ High resistivity 60.3 KJ/m·h·℃


Mechanical properties



brand Test temperature/ºC time/h
Ni80Cr20 1200 80





0.01-0.8mm Nickel Chromium NiCr 8020 Annealed Soft Strip Resistohm 80 For Resistor 0
