Product Details:
|
| Surface: | Bright | Craft: | Cold Rolled |
|---|---|---|---|
| Characteristics: | High Resistivity, Good Oxidation Resistance | The Highest Use Temperature: | 1200c |
| Resisivity: | 1.09 | Density: | 8.4 |
| Sample: | Free | Shape: | Wire/Ribbon Wire |
| Type: | Ni80cr20,Ni80,Alloy A,Resistohm 80,Cronix 80 | Trade Term: | FOB, EXW, CIF |
| Application: | Electronic Cigarettes | Size: | 0.1*0.4/0.1*0.3/0.1*0.2 |
| High Light: | nichrome resistance wire,nichrome wire |
||

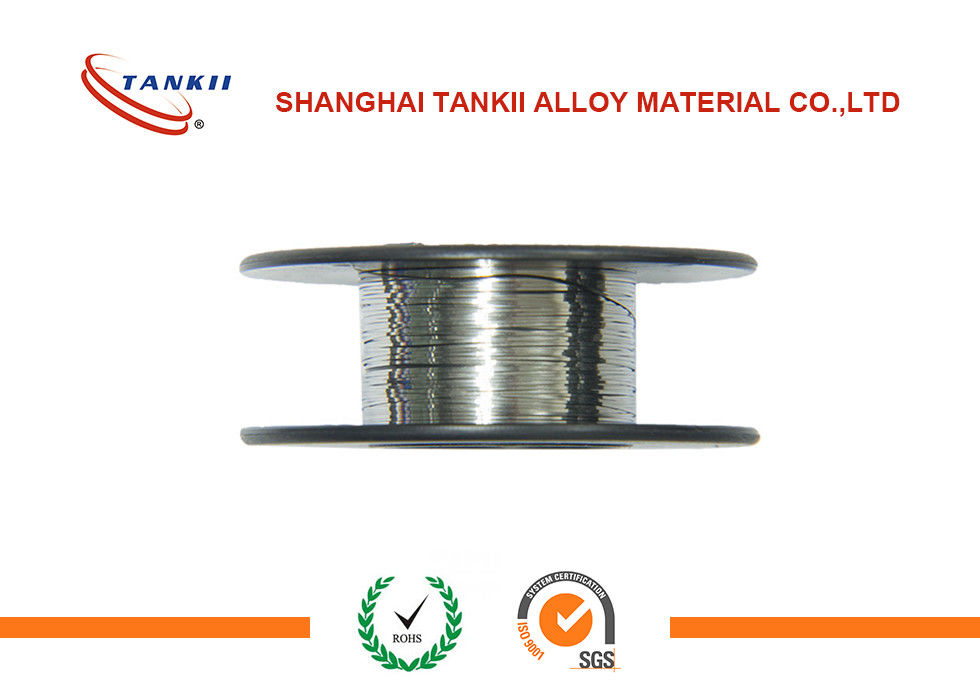

0.1mm*0.2mm Ni80Cr20 resistance heating ribbon wire for electronic cigarettes
Applications
Nichrome wire heating elements are widely used for making electric heating elements in home appliances and OCr25AL5 Electric Heating Alloy/Fecral Wire
industrial furnaces. Typical applications are electronic cigarettes,flat irons, ironing machines, water heaters, plastic moulding dies, spiral resistance heating wire
soldering irons, metal sheathed tubular elements and cartridge elements.
Product features
Heat resisting, heat up fast, long service life, the resistance is stable, Small power deviation, screw pitch
is symmetry after be stretched, be widely used in Small electric furnace, muffle, oven, t
ubular electric heating element, household appliances.We can design as customer's needs.
We specialized in manufacturing heating resistance alloy for years,
the main products cover
NiCr series: Cr20Ni80,Cr30Ni70,Cr15Ni60,Cr20Ni35,Cr20Ni30
FeCrAl series:1Cr13Al4,1Cr15Al5,0Cr21Al4,0Cr21Al6,0Cr23Al5,0Cr25Al5,0Cr21Al6Nb,0Cr27Al7Mo2 etc.
CuNi series:CuNi1,CuNi2,CuNi6,CuNi8,CuNi10,CuNi19,CuNi23,CuNi30,CuNi34,CuNi44.
serious: many of our customer buy Awg 20 24 26 28 wire for e-cig.
Process:
Wire: Material preparation→melting→re-melting→forging→hot rolling→heat treatment→surface treatment→drawing(rolling)→finish heat treatment→inspection→package→warehouse
Strip:Material preparation→melting(vacuum,medium frequency)→electroslag→lathe-forging→planing→hot rolling→annealing→polish by high pressurewater→rolling→degrease→annealing→welding→rolling→edge shearing→annealing→slitting→inspection→package
when you order wire, please tell me wire material ( ocr25al5 or cr20ni80 ), please also tell me wire diameter you need, because different diameter have different price.
regular size
Wire: 0.018mm-10mm
| Alloy Nomenclature Performance | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| Main Chemical | Ni | Rest | Rest | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
| Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
| Fe | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
| Max. continuous service temp. of element(ºC) | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Resistivity at 20ºC (μΩ.m) | 1.09 | 1.18 | 1.12 | 1.0 | 1.04 | |
| Density(g/cm3) | 8.40 | 8.10 | 8.20 | 7.90 | 7.90 | |
| Thermal conductivity (KJ/m.h.ºC) | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of lines expansion(α×10-6/ºC) | 18.0 | 17.0 | 17.0 | 19.0 | 19.0 | |
| Melting point approx.( ºC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Elongation at rupture(%) | >20 | >20 | >20 | >20 | >20 | |
| Micrographic structure | austenite | austenite | austenite | austenite | austenite | |
| Magnetic properties | nonmagnetic | nonmagnetic | Weak magnetic | Weak magnetic | Weak magnetic | |
