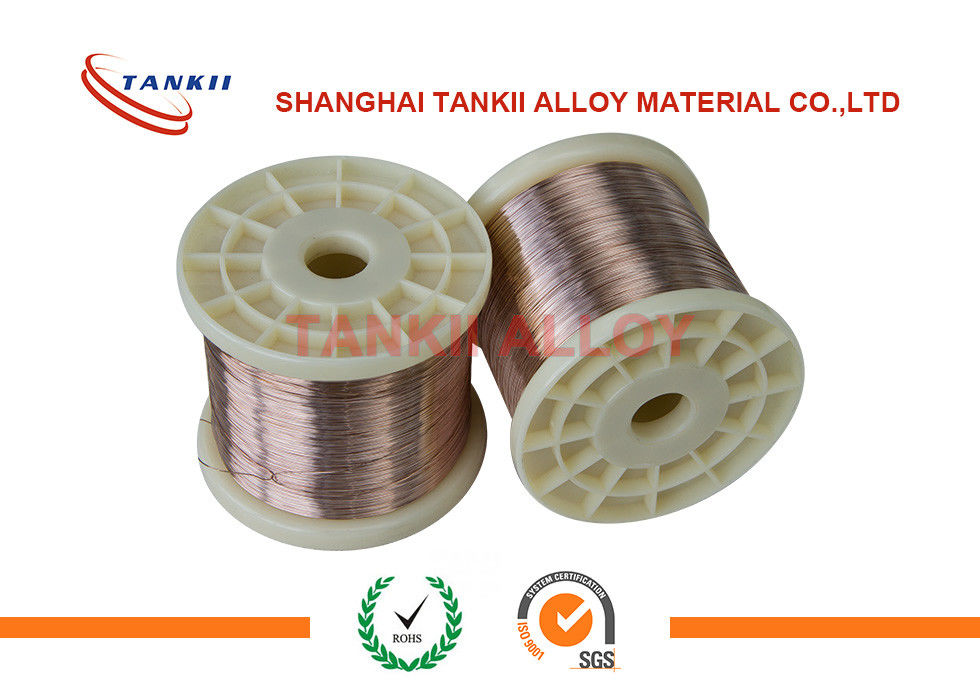

CuNi6 Resistance Heating Wire For Electrical Heating Mats/Snow Melting Cable

CuNi6 Resistance Heating Wire For Electrical Heating Mats/Snow Melting Cable
CuNi6 Resistance Heating Wire For Electrical Heating Mats/Snow Melting Cable CuNi6 Resistance Heating Wire For Electrical Heating Mats/Snow Melting Cable CuNi6 Resistance Heating Wire For Electrical Heating Mats/Snow Melting Cable CuNi6 Resistance Heating Wire For Electrical Heating Mats/Snow Melting Cable

Large Image :  CuNi6 Resistance Heating Wire For Electrical Heating Mats/Snow Melting Cable

Product Details:
Place of Origin: Chian
Brand Name: Tankii
Certification: ISO RoHS AISI ASTM GB
Model Number: 0cr13al4,alloy 750 stablohm 750,0cr23al5,0cr25al5,, 0cr15al5, 0cr20al5,0cr21al6
Payment & Shipping Terms:
Minimum Order Quantity: 20Kg
Price: USD 20/Kg
Packaging Details: Wooden Pallet, Wooden Case, Spool
Delivery Time: 10-15 woking days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200Tons/Month

CuNi6 Resistance Heating Wire For Electrical Heating Mats/Snow Melting Cable

Description
Packing: Case Craft: Cold Rolled
Characteristics: High Resistivity, Good Oxidation Resistance Sample: Free
Shape: Strip/Wire/Ribbon/Pipe/Sheet/Bar/Foil Surface: Bright
The Highest Use Temperature: 200c Density: 8.9
Resisivity: 0.1
Highlight:

copper and nickel alloy

,

alloy of copper and nickel

CuNi6 Resistance Heating Wire for Electrical Heating Mats/Snow Melting Cable


As a big manufacturer and exporter in China on the line of electric resistance alloy, we can supply all kinds of electric resistance alloy wire and strips (resistance steel wire and strips),
General Description
Due to has high tensile strength and increased resistivity values, TANKII copper nickel alloy wires are the first choice for applications as resistance wires. With the different nickel amount in this product range, the characteristics of the wire can be chosen according to your requirements. Copper nickel alloy wires are available as bare wire, or enamelled wire with any insulation and self-bonding enamel. Furthermore, litz wire made of enamelled copper nickel alloy wire are available.
Features
1. Higher resistance than copper
2. High tensile strength
3. Good bending proof performance
Application
1. Heating applications
2. Resistance wire
3. Applications with high mechanical requirements
Characteristic Resistivity ( 200C μΩ.m) Max.working Temperature ( 0C) Tensile Strength (Mpa) Melting point (0C) Density ( g/cm3) TCR x10-6/ 0C (20~600 0C) EMF vs Cu (μV/ 0C) (0~100 0C)
Alloy Nomenclature
NC020(CuNi14) 0.2 300 ≥310 1115 8.9 <30 -28

Copper Nickel Resistance Alloy-CuNi10
Chemical Content, %
Ni Mn Fe Si Cu Other ROHS Directive
Cd Pb Hg Cr
10 0.3 - - Bal - ND ND ND ND

Mechanical Properties
Max Continuous Service Temp 250ºC
Resisivity at 20ºC 0.15±5%ohm mm2/m
Density 8.9 g/cm3
Thermal Conductivity 50 (Max)
Melting Point 1100ºC
Tensile Strength,N/mm2 Annealed,Soft 210~370 Mpa
Tensile Strength,N/mm2 Cold Rolled 420~740 Mpa
Elongation(anneal) 25%(Min)
Elongation(cold rolled) 2% (Min)
EMF vs Cu, μV/ºC (0~100ºC) -25
Micrographic Structure austenite
Magnetic Property Non

Application of CuNi10
CuNi10 low resistance heating alloy is widely used in low-voltage circuit breaker, thermal overload relay, and other low-voltage electrical product. It is one of the key materials of the low-voltage electrical products. The materials produced by our company have the characteristics of good resistance consistency and superior stability. We can supply all kinds of round wire, flat and sheet materials.

Mechanical Properties

Type

Electrical resistivity

(20degreeΩ

mm²/m)

temperature coefficient of resistance

(10^6/degree)

Dens

ity

g/mm²

Max. temperature

(°c)

Melting point

(°c)

CuNi1 0.03 <1000 8.9 / 1085
CuNi2 0.05 <1200 8.9



200

1090
CuNi6 0.10 <600 8.9 220 1095
CuNi8 0.12 <570 8.9 250 1097
CuNi10 0.15 <500 8.9 250 1100
CuNi14 0.20 <380 8.9 300 1115
CuNi19 0.25 <250 8.9 300 1135
CuNi23 0.30 <160 8.9 300 1150
CuNi30 0.35 <100 8.9 350 1170
CuNi34 0.40 -0 8.9 350 1180
CuNi40 0.48 ±40 8.9 400 1280
CuNi44 0.49 <-6 8.9 400 1280

Cu Ni Alloy Wire/strip (CuNi1/CuNi2/CuNi5/CuNi6/CuNi8/CuNi10/CuNi14/CuNi19, CuNi23, CuNi34, CuNi40/CuNi44/CuNi45

Cu Ni Alloy Wire/strip (CuNi1/CuNi2/CuNi5/CuNi6/CuNi8/CuNi10/CuNi14/CuNi19, CuNi23, CuNi34, CuNi40/CuNi44/CuNi45
Cu Ni Alloy Wire/strip (CuNi1/CuNi2/CuNi5/CuNi6/CuNi8/CuNi10/CuNi14/CuNi19, CuNi23, CuNi34, CuNi40/CuNi44/CuNi45
Cu Ni Alloy Wire/strip (CuNi1/CuNi2/CuNi5/CuNi6/CuNi8/CuNi10/CuNi14/CuNi19, CuNi23, CuNi34, CuNi40/CuNi44/CuNi45
