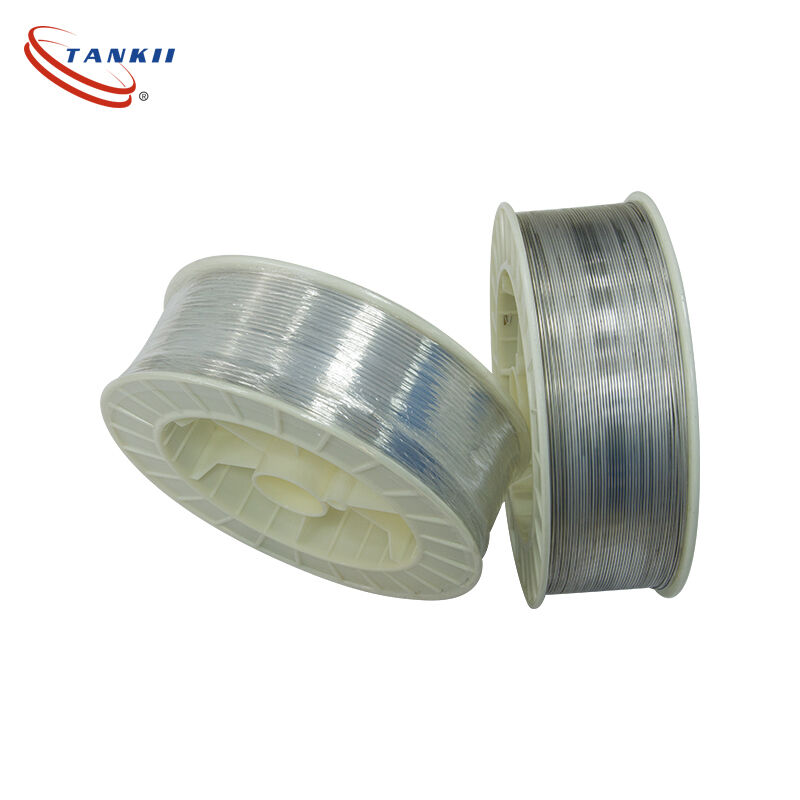

Ni95Al5 Thermal Spray Wire / 955 Nickel-Aluminum Bond Coat Wire

Name: Ni95Al5 Thermal Spray Wire / 955 Nickel-Aluminum Bond Coat Wire
Brand: Shanghai Tankii Alloy Material Co.,Ltd
SKU: Ni95Al5
Price: 27.00 USD
Availability: InStock

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001

Model Number: Ni95Al5

Payment & Shipping Terms

Minimum Order Quantity: 15Kg

Price: 25-30USD/Kg

Packaging Details: case

Delivery Time: 10-15days

Payment Terms: T/T,Western Union,D/P,D/A,L/C

Supply Ability: 500tons/Month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:

Model Number:	Ni95Al5 / NiAl-955 / TAFA 75B	Material:	Nickel-Aluminum Alloy
Application:	Thermal Spray, Bond Coat, Anti-corrosion, High-temp Protection	Diameter:	1.6 Mm / 2.0 Mm (±0.05 Mm)
Elongation:	40 %	Melting Point:	1 390 °C
Working Temperature:	1 300 °C (max)	Standard:	AMS 4778, ASTM B833, ISO 14919
Packaging:	15 Kg DIN 300 Plastic Spool, Vacuum Foil, Carton, Pallet

Model Number:	Ni95Al5 / NiAl-955 / TAFA 75B
Material:	Nickel-Aluminum Alloy
Application:	Thermal Spray, Bond Coat, Anti-corrosion, High-temp Protection
Diameter:	1.6 Mm / 2.0 Mm (±0.05 Mm)
Elongation:	40 %
Melting Point:	1 390 °C
Working Temperature:	1 300 °C (max)
Standard:	AMS 4778, ASTM B833, ISO 14919
Packaging:	15 Kg DIN 300 Plastic Spool, Vacuum Foil, Carton, Pallet

Description

Ni95Al5 Thermal Spray Wire / 955 Nickel-Aluminum Bond Coat Wire

Product Name
Ni95Al5 Thermal Spray Wire / 955 Nickel-Aluminum Bond Coat Wire

Grade / Equivalent
NiAl 955, Ni95Al5, TAFA 75B, PMET 885, MEC 885

Wire Chemistry (wt %)
Ni ≥ 95 | Al 4-5 | C ≤ 0.02 | Mn ≤ 0.2 | Si ≤ 0.2 | Fe ≤ 0.5 | O ≤ 0.005 | Others ≤ 0.5

Available Diameters & Tolerance
1.6 mm (-0 / +0.05 mm) | 2.0 mm (-0 / +0.05 mm)
Other sizes on request.

Typical Physical & Spray Properties

Density: 8.83 g cm⁻³
Elongation: 40 %
Max. service temperature: 1 300 °C (short-term 1 390 °C)
As-sprayed hardness: 200-260 HV
Bond strength on mild steel: ≥ 55 MPa
Oxide content after spraying: ≤ 3 %
Surface finish: bright, smooth, free of draw-marks

Key Coating Characteristics
✔ Ultra-dense microstructure, porosity < 2 %
✔ Self-bonding to most iron & nickel-base substrates (no intermediate layer required)
✔ Forms in-situ Al₂O₃ scale → excellent high-temperature oxidation & corrosion resistance
✔ Outstanding thermal-shock & scuff resistance

Recommended Spray Parameters (Arc-Spray)
Voltage: 30-34 V | Current: 120-180 A | Air pressure: 0.55-0.65 MPa
Stand-off distance: 150-200 mm | Traverse speed: 200-400 mm s⁻¹

Main Applications

Bond coat for ceramic top-coats (ZrO₂, Al₂O₃, Cr₂O₃) on gas-turbine blades, piston rods, boiler tubes
Corrosion-resistant under-layer for chemical pump shafts, fan impellers, marine propellers
Restoration of worn glass-moulds, forging dies, paper dryer rolls
EMI shielding & conductive coatings in electronic housings

Packaging Options

15 kg / 25 kg plastic spool (DIN 300) + vacuum foil + export carton
50-250 kg steel coil, PE-wrapped + wooden pallet
Custom labelling & bar-coding available

Standards Conformance
AMS 4778, ASTM B833, ISO 14919, GB/T 30566

Shelf Life & Storage
5 years in original unopened packaging; store < 25 °C, RH < 60 %, away from acids & sulphur.

MOQ & Lead Time
15 kg; 3-5 days ex-factory for ≤ 500 kg, 7-10 days for ≤ 2 t.

HS Code
7505.22.00
