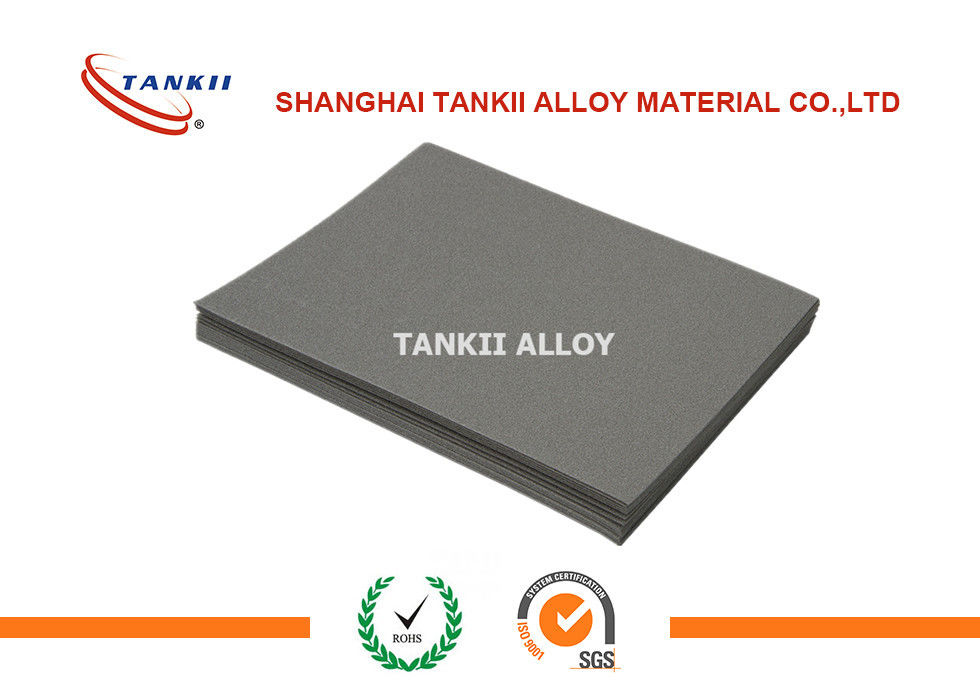

Ni Fe Foam 1.6x240 Mm Pure Nickel Strip Battery / Continuous Nickel Foam

Product Details

Place of Origin: Shanghai China

Brand Name: TANKII

Certification: SGS

Model Number: Foam nickel

Payment & Shipping Terms

Minimum Order Quantity: 10 Square meter

Price: negotiable

Packaging Details: Carton, Wooden Pallet,

Delivery Time: 7-12days

Payment Terms: L/C, T/T, Western Union, paypal, etc

Supply Ability: 1000,000.00 Square Meter per Month

Get Best Price
Contact Now
Specifications
Highlight:

nickel foil

,

nickel 200 strip

Material:
Pure Nickel
Surface:
Silver Gray
Thickness:
0.2 - 2.0mm
Width:
960 Max
Shape:
Roll, Sheet
Porosity:
>96%
Packing:
Carton And Wooden Pallet
Ppi:
90-120
Material:
Pure Nickel
Surface:
Silver Gray
Thickness:
0.2 - 2.0mm
Width:
960 Max
Shape:
Roll, Sheet
Porosity:
>96%
Packing:
Carton And Wooden Pallet
Ppi:
90-120
Description
Ni Fe Foam 1.6x240 Mm Pure Nickel Strip Battery / Continuous Nickel Foam



Ni Fe Foam,1.6x240 mm, battery nickel foam,continuous nickel foam with best price made in China​



Normally in roll or in pieces, as per the buyer's request.

Application



1. battery electrode materials, particular for the Ni-MH battery which rechargeable batteries used in notebook computers, mobile phones, electric scooter, electric bicycles, hybrid electric vehicles, electric tools, high-grade toys.



2. electric catalyst for molten carbonate fuel cell, bipolar plate modified materials for the proton exchange membrane fuel cell (PEMFC), electrode relay feeder of solid oxide fuel cell (SOFC), electrode material in electrolytic ( such as in the environmental of water electricity agents).



3. Catalyst carrier of the car catalyst converters, catalytic combustion, diesel vehicle smoke purifier.



4. filter material, deal with magnetic flux conductor in the fluid particles.



5. hydrogen-storage medium, heat exchange medium and so on.





Composition(wt%) Cu C Si Fe S Ni+Co
≤0.010 ≤0.050 ≤0.005 ≤0.030 ≤0.008 Balance



PERFORMANCE INDEX



ITEM CONTINUOUS NICKEL FOAM THICK NICKEL FOAM
THICKNESS (0.3~2.5)±0.05mm (2.6~12)±0.05mm
PPI 90~120 20~80
SURFACE DENSITY (250~1800)±30g/M2 (400~3000)±30g/M2
TENSILE STRENGTH (VERTICAL)≥130n/CM2 (HORIZONTAL)≥100n/CM2
ELONGATION

(VERTICAL)≥5%

(HORIZONTAL)≥12%


POROSITY ≥96% ≥96%
WIDTH (30~960)±0.5mm (50~960)±0.5mm
SPLICE FREQUENCY 200m≤4 junction largest length 1000mm
RATIO RESISTANCE ≤5X10-6 ≤5X10-6







1.Full set of lithium battery materials,including :

LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.



2.Full set of lithium battery equipments,for example:

mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.



3.Full set of lithium battery technology.

we can design the laboratory and production line,according to customer's request.
