Product Details
Place of Origin: Shanghai China
Brand Name: TANKII
Certification: SGS
Model Number: NIckel foam
Payment & Shipping Terms
Minimum Order Quantity: 10 Square meter
Price: negotiable
Packaging Details: Carton, Wooden Pallet,
Delivery Time: 7-12days
Payment Terms: L/C, T/T, Western Union, paypal, etc
Supply Ability: 1000,000.00 Square Meter per Month
Material: |
Pure Nickel |
Surface: |
Silver Gray |
Thickness: |
1.6mm |
Width: |
960 Max |
Shape: |
Roll, Sheet |
Porosity: |
>96% |
Material: |
Pure Nickel |
Surface: |
Silver Gray |
Thickness: |
1.6mm |
Width: |
960 Max |
Shape: |
Roll, Sheet |
Porosity: |
>96% |

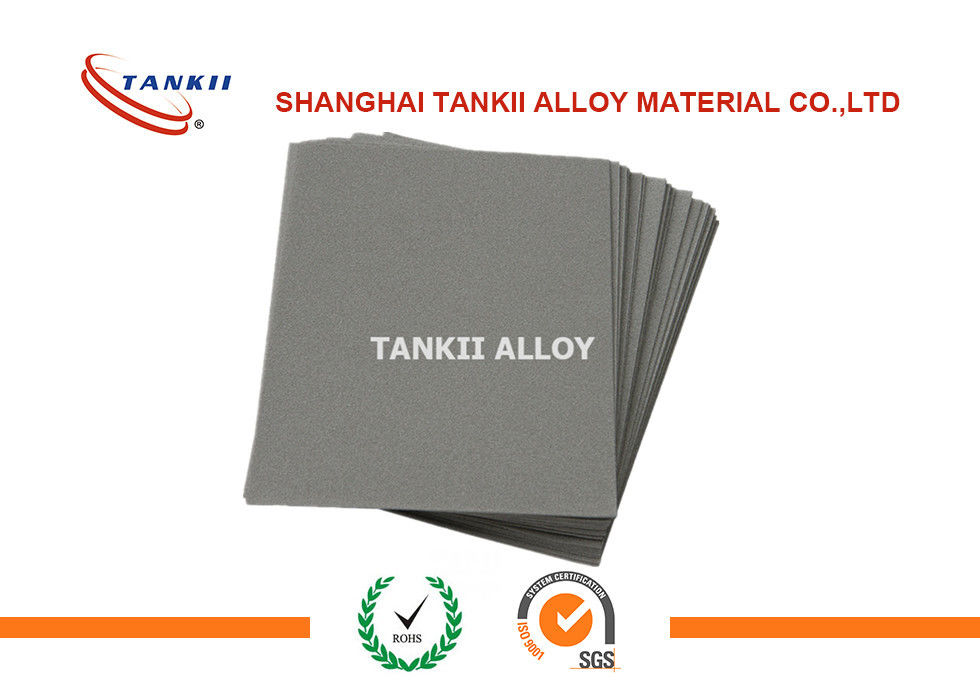

Foam Ni 1.6x250x350mm Nickel Foam 9996 sheet for Ni Mh battery anode electrode
PERFORMANCE INDEX
| ITEM | CONTINUOUS NICKEL FOAM | THICK NICKEL FOAM |
| THICKNESS | (0.3~2.5)±0.05mm | (2.6~12)±0.05mm |
| PPI | 90~120 | 20~80 |
| SURFACE DENSITY | (250~1800)±30g/M2 | (400~3000)±30g/M2 |
| TENSILE STRENGTH | (VERTICAL)≥130n/CM2 (HORIZONTAL)≥100n/CM2 | |
| ELONGATION |
(VERTICAL)≥5% (HORIZONTAL)≥12% |
|
| POROSITY | ≥96% | ≥96% |
| WIDTH | (30~960)±0.5mm | (50~960)±0.5mm |
| SPLICE FREQUENCY | 200m≤4 junction | largest length 1000mm |
| RATIO RESISTANCE | ≤5X10-6 | ≤5X10-6 |
Application Direction
1. battery electrode materials, particular for the Ni-MH battery which rechargeable batteries used in notebook computers, mobile phones, electric scooter, electric bicycles, hybrid electric vehicles, electric tools, high-grade toys.
2. electric catalyst for molten carbonate fuel cell, bipolar plate modified materials for the proton exchange membrane fuel cell (PEMFC), electrode relay feeder of solid oxide fuel cell (SOFC), electrode material in electrolytic ( such as in the environmental of water electricity agents).
3. Catalyst carrier of the car catalyst converters, catalytic combustion, diesel vehicle smoke purifier.
4. filter material, deal with magnetic flux conductor in the fluid particles.
5. hydrogen-storage medium, heat exchange medium and so on.
1.Full set of lithium battery materials,including :
LiMn2O4,LTO,LiNiMnCoO2(NMC),LiCoO2,Graphite(MCMB)and other cathode&anode battery materials;Aluminum foil,copper foils,battery separator,etc.
2.Full set of lithium battery equipments,for example:
mixing machine --coating machine--oven--rolling machine--welding machine--slitting / cutiing machine --winding machine--sealed machine,etc.
3.Full set of lithium battery technology.
we can design the laboratory and production line,according to customer's request.
