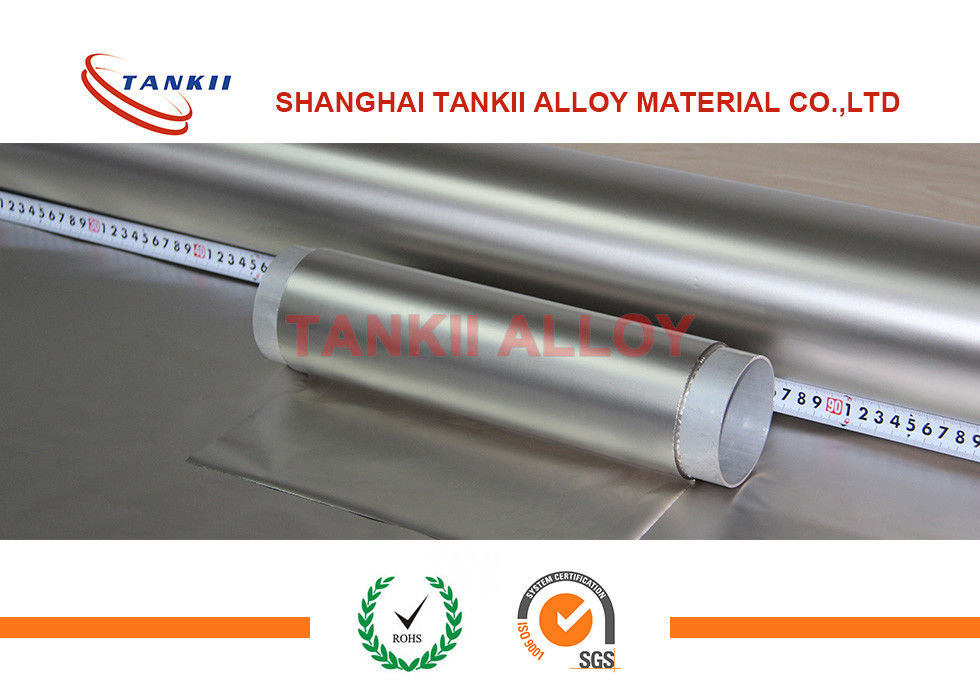

99.96% Electrolytic Pure Nickel Foil Ni200 5μM-20μM For Lithium Ion Battery

Certification
China Shanghai Tankii Alloy Material Co.,Ltd certification
China Shanghai Tankii Alloy Material Co.,Ltd certification
Customer Reviews
Perfect cables and bare wires. During the COVID-19 period, you sent us masks as gift, again, thanks a lot for your friendship during these difficult times!

—— Lorenzo Crisetig

Good supplier of Thermocouple wire, short leadting time and fast shipment. It's worth cooperating with Tankii alloy.

—— Vand***

Qualified products. We may place more orders to TANKII

—— Edward***

I bought thermocouple wire from Selina, she is a very responsible lady,Tankii's products quality is pretty good.

—— Jain**

Quick response with professional service on alloy wires. I trust tankii alloy.

—— Crist***

I'm Online Chat Now

99.96% Electrolytic Pure Nickel Foil Ni200 5μM-20μM For Lithium Ion Battery

99.96% Electrolytic Pure Nickel Foil Ni200 5μM-20μM For Lithium Ion Battery
99.96% Electrolytic Pure Nickel Foil Ni200 5μM-20μM For Lithium Ion Battery 99.96% Electrolytic Pure Nickel Foil Ni200 5μM-20μM For Lithium Ion Battery 99.96% Electrolytic Pure Nickel Foil Ni200 5μM-20μM For Lithium Ion Battery 99.96% Electrolytic Pure Nickel Foil Ni200 5μM-20μM For Lithium Ion Battery

Large Image :  99.96% Electrolytic Pure Nickel Foil Ni200 5μM-20μM For Lithium Ion Battery

Product Details:
Place of Origin: China
Brand Name: Tankii
Certification: ISO RoHS AISI ASTM GB
Model Number: Ni200
Payment & Shipping Terms:
Minimum Order Quantity: 2Kg
Price: USD156/Kg
Packaging Details: carton or wooden case
Delivery Time: 5-10 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 100Tons/Month

99.96% Electrolytic Pure Nickel Foil Ni200 5μM-20μM For Lithium Ion Battery

Description
Size: 0.005-0.02x1300mm Chemical Composition: Nickel
Purity: Over 99.6% The Highest Use Temperature: 1300C
Sample: Free Density: 8.9
Resisivity: 1.33 Craft: Electrolysis
Surface: Both Bright Or Oxidated Trade Term: FOB, EXW, CIF
Type: Ni200,Ni201, N02201
High Light:

nickel 200 strip

,

nickel copper alloy

5μm-20μm, Electrolytic Pure Nickel Foil Ni200 / 99.6% Sheet Pure Foil Strip for lithium ion battery



It is widely used in electric apparatus,chemical machinery,good processing equipment,rechargeable batteries, cellular Phone, power tools, camcorders and so on.



It has good mechanical strength,corrosion-resistant and heat-resistance strength.



Chemical Composition

Grade Element Composition/%
Ni+Co Mn Cu Fe C Si Cr S
Ni201 ≥99.0 ≤0.35 ≤0.25 ≤0.30 ≤0.02 ≤0.3 ≤0.2 ≤0.01
Ni200 ≥99.0 /≤0.35 ≤0.25 ≤0.30 ≤0.15 ≤0.3 ≤0.2 ≤0.01



Propertis

Density Melting point Coefficient of expansion Modulus of rigidity Modulus of elasticity Electrical resistivity
Ni200 8.9g/cm3 1446°C 13.3 µm/m °C (20-100°C) 81kN/mm2 204kN/mm2 9.6μW• cm
Ni201 1446°C 13.1µm/m °C(20-100°C) 82kN/mm2 207kN/mm2 8.5μW• cm







Diameter(mm) Tolerance(mm) Diameter(mm) Tolerance(mm)
0.03-0.05 ±0.005 >0.50-1.00 ±0.02
>0.05-0.10 ±0.006 >1.00-3.00 ±0.03
>0.10-0.20 ±0.008 >3.00-6.00 ±0.04
>0.20-0.30 ±0.010 >6.00-8.00 ±0.05
>0.30-0.50 ±0.015 >8.00-12.0 ±0.4



Specification of Cold-drawing Strip Type



Thickness(mm) Tolerance(mm) Width(mm) Tolerance(mm)
0.05-0.10 ±0.010 5.00-10.0 ±0.2
>0.10-0.20 ±0.015 >10.0-20.0 ±0.2
>0.20-0.50 ±0.020 >20.0-30.0 ±0.2
>0.50-1.00 ±0.030 >30.0-50.0 ±0.3
>1.00-1.80 ±0.040 >50.0-90.0 ±0.3
>1.80-2.50 ±0.050 >90.0-120.0 ±0.5
>2.50-3.50 ±0.060 >120.0-250.0 ±0.6



99.96% Electrolytic Pure Nickel Foil Ni200 5μM-20μM For Lithium Ion Battery 0
