Nichrome Ribbon Ni35Cr20 Electric Heating Resistance Ribbon For LED Display Heat Elements

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO 9001

Model Number: Ni35Cr20

Payment & Shipping Terms

Minimum Order Quantity: 100kg

Price: 15-26usd / kg

Packaging Details: wooden case

Delivery Time: 5-60days

Payment Terms: T/T, Western Union

Supply Ability: 20000/month

Get Best Price
Contact Now
Specifications
Highlight:

nichrome resistance wire

,

nichrome wire

Name:
Nichrome Ribbon
Spool:
Customized
Surface:
Bright
Color:
Gray
Size:
Customized
Name:
Nichrome Ribbon
Spool:
Customized
Surface:
Bright
Color:
Gray
Size:
Customized
Description
Nichrome Ribbon Ni35Cr20 Electric Heating Resistance Ribbon For LED Display Heat Elements

Nichrome ribbon Ni35Cr20 Electric Heating Resistance ribbon for LED display heat elements

Grade: Cr20Ni80,Cr30Ni70,Cr15Ni60,Cr20Ni35,Cr20Ni30

Chemical composition andPropertes:

Propertes/Grade Cr20Ni80 Cr30Ni70 Cr15Ni60 Cr20Ni35 Cr20Ni30
Main Chemical Composition(%) Ni Rest Rest 55.0-61.0 34.0-37.0 30.0-34.0
  Cr 20.0-23.0 28.0-31.0 15.0-18.0 18.0-21.0 18.0-21.0
  Fe ≤ 1.0 ≤ 1.0 Rest Rest Rest
Max Continuous Service Temperature() 1200 1250 1150 1100 1100
Resistivity at 20
(μ Ω · m)
1.09 1.18 1.12 1.04 1.04
Density(g/cm3) 8.4 8.1 8.2 7.9 7.9

Thermal Conductivity

(KJ/m· h· )

60.3 45.2 45.2 43.8 43.8
Coefficient of Thermal Expansion(α × 10-6/) 18 17 17 19 19
Melting Point() 1400 1380 1390 1390 1390
Elongation(%) > 20 > 20 > 20 > 20 > 20
Micrographic Structure austenite austenite austenite austenite austenite
Magnetic Property nonmagnetic nonmagnetic nonmagnetic nonmagnetic nonmagnetic



Regular size:

We supply products in the shape of wire,flat wire,strip.We can also make customized material according to useris requests.

Strip:0.1mm~3.0mm,width 8mm~250mm



Process:

Strip:Material preparation→melting(vacuum,medium frequency)→electroslag→lathe-forging→planing→hot rolling→annealing→polish by high pressurewater→rolling→degrease→annealing→welding→rolling→edge shearing→annealing→slitting→inspection→package



Product features:

1)Excellent anti-oxidation and mechanical strength at high temperature;

2)High resistivity and low temperature coefficient of resistance;

3)Excellent reelability and forming performance;

4)Excellent welding performace

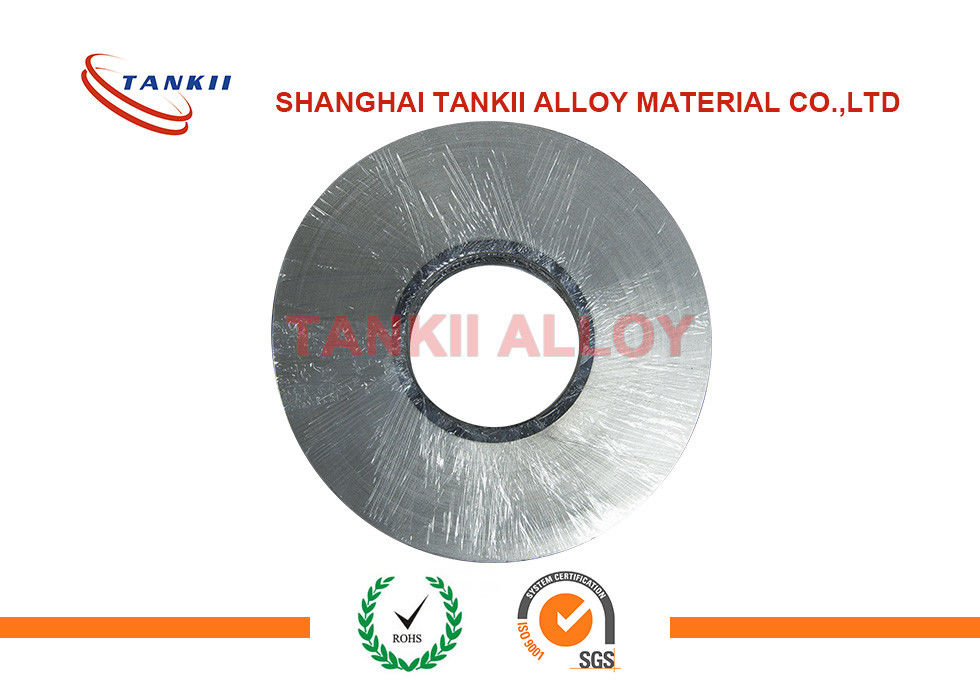

Nichrome Ribbon Ni35Cr20 Electric Heating Resistance Ribbon For LED Display Heat Elements 0Nichrome Ribbon Ni35Cr20 Electric Heating Resistance Ribbon For LED Display Heat Elements 1Nichrome Ribbon Ni35Cr20 Electric Heating Resistance Ribbon For LED Display Heat Elements 2
