Product Details:
|
| Name: | Fecral Alloy Strip | Color: | Grey |
|---|---|---|---|
| Material: | Fecral Alloy | Size: | Customized |
| Delivery: | Depends On The Quantity | ||
| High Light: | electrical heating wire,high temperature wire |
||

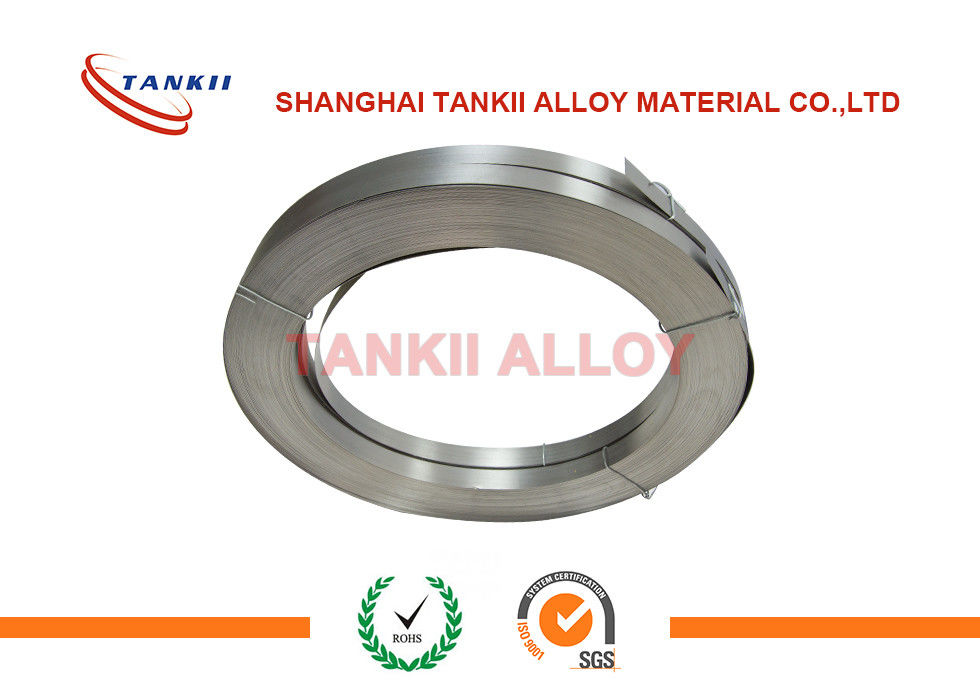

Stainless steel strip Fecral Alloy strip Electric Resistance For Medical machinery
FeCrAl alloy has the characteristic of high resistivity,low temperature resistance coefficient,high operating temperature,good anti-oxidation and anti-corrosion under high temperature.
It is widely used in industrial furnace, household appliances, industry furnace, metallurgy, machinery, aircraft, automotive, military and other industries producing heating elements and resistance elements.
Specification
| Properties/Grade | 1Cr13Al4 | 0Cr21Al4 | 0Cr21Al6 | 0Cr23Al5 | 0Cr25Al5 | 0Cr21Al6Nb | 0Cr27Al7Mo2 | |
| Main Chemical composition(%) |
Cr | 12.0-15.0 | 18.0-21.0 | 19.0-22.0 | 22.5-24.5 | 23.0-26.0 | 21.0-23.0 | 26.5-27.8 |
| Al | 4.0-6.0 | 3.0-4.2 | 5.0-7.0 | 4.2-5.0 | 4.5-6.5 | 5.0-7.0 | 6.0-7.0 | |
| Fe | Balance | Balance | Balance | Balance | Balance | Balance | Balance | |
| Re | opportune | opportune | opportune | opportune | opportune | opportune | opportune | |
| Nb:0.5 | Mo:1.8-2.2 | |||||||
| Max. continuous service temp. of element |
950 | 1100 | 1250 | 1250 | 1250 | 1350 | 1400 | |
| Resistivity at 20oC (μ Ω @ m) |
1.25+-0.08 | 1.23+-0.06 | 1.42+-0.07 | 1.35+-0.07 | 1.42+-0.06 | 1.45+-0.07 | 1.53+-0.07 | |
| Density (g/cm3) | 7.4 | 7.35 | 7.16 | 7.25 | 7.1 | 7.1 | 7.1 | |
| Thermal conductivity (KJ/m@ h@ oC) |
52.7 | 46.9 | 63.2 | 60.2 | 46.1 | 46.1 | 45.2 | |
| Coefficient of lines expansion(α × 10-6/oC) |
15.4 | 13.5 | 14.7 | 15 | 16 | 16 | 16 | |
| Melting point (approx. )( oC) | 1450 | 1500 | 1500 | 1500 | 1500 | 1510 | 1520 | |
| Elongation at rupture (%) | ≥16 | ≥12 | ≥12 | ≥12 | ≥12 | ≥12 | ≥10 | |
| Micrographic structure | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | Ferrite | |
| Magnetic properties | magnetic | magnetic | magnetic | magnetic | magnetic | magnetic | magnetic | |
