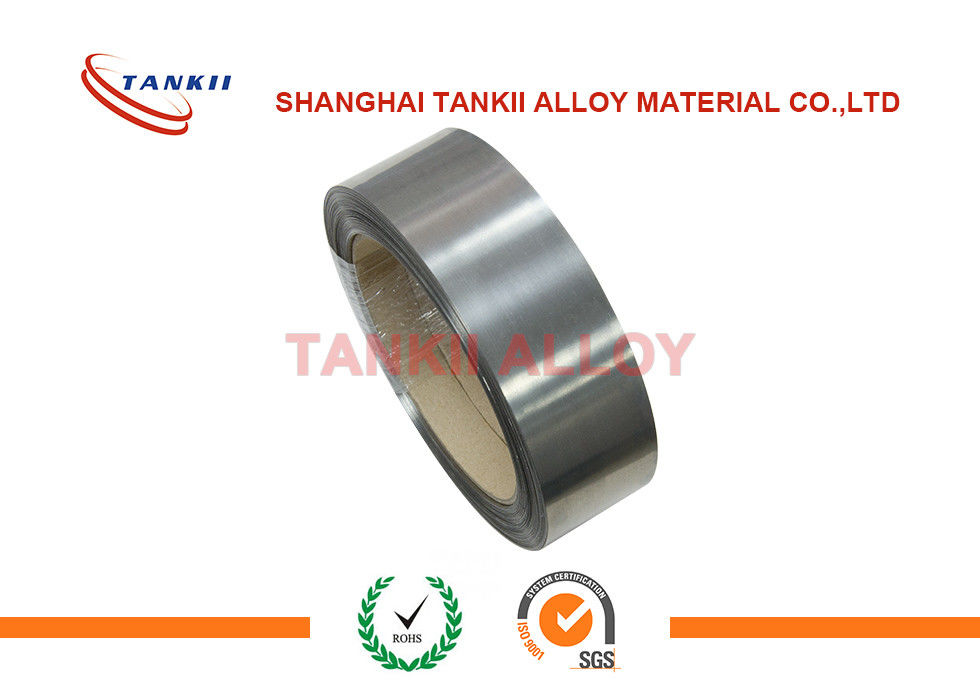

Bright Color Fecral Alloy Ribbon 0cr25al5 For Home Automation Heat Elements

Product Details

Place of Origin: China

Brand Name: Tankii

Certification: ISO9001

Model Number: 0Cr25Al5

Payment & Shipping Terms

Minimum Order Quantity: 25kg

Price: 5.1 usd / kg

Packaging Details: spool or coil

Delivery Time: 5-35 days

Payment Terms: T/T, Western Union

Supply Ability: 25000 ton / month

Get Best Price
Contact Now
Specifications
Highlight:

electrical heating wire

,

high temperature wire

Product Name:
Fecral 0Cr25Al5 Ribbon Fecral Alloy Strip For Home Automation Heat Elements
Color:
Bright
Material:
FeCrAl Alloy
Delivery:
Depends On The Quantity
Surface:
Bright
Usage:
Heat Elements
Package:
Spool Or Coil
Product Name:
Fecral 0Cr25Al5 Ribbon Fecral Alloy Strip For Home Automation Heat Elements
Color:
Bright
Material:
FeCrAl Alloy
Delivery:
Depends On The Quantity
Surface:
Bright
Usage:
Heat Elements
Package:
Spool Or Coil
Description
Bright Color Fecral Alloy Ribbon 0cr25al5 For Home Automation Heat Elements
Fecral 0Cr25Al5 ribbon Fecral Alloy strip for home automation heat elements

1.Specification



Alloy Nomenclature Performance 1Cr13Al4 0Cr25Al5 0Cr21Al6 0Cr23Al5 0Cr21Al4 0Cr21Al6Nb 0Cr27Al7Mo2
Main Chemical composition Cr 12.0-15.0 23.0-26.0 19.0-22.0 20.5-23.5 18.0-21.0 21.0-23.0 26.5-27.8
Al 4.0-6.0 4.5-6.5 5.0-7.0 4.2-5.3 3.0-4.2 5.0-7.0 6.0-7.0
Re opportune opportune opportune opportune opportune opportune opportune
Fe Rest Rest Rest Rest Rest Rest Rest
            Nb0.5 Mo1.8-2.2
Max. continuous service temp. of element(°C) 950 1250 1250 1250 1100 1350 1400
Resistivity at 20ºC(μΩ·m) 1.25 1.42 1.42 1.35 1.23 1.45 1.53
Density(g/cm3) 7.4 7.1 7.16 7.25 7.35 7.1 7.1
Thermal conductivity(KJ/m·h·ºC) 52.7 46.1 63.2 60.2 46.9 46.1 --
Coefficient of lines expansion(α×10-6/ºC) 15.4 16 14.7 15 13.5 16 16
Melting point approx.( ºC) 1450 1500 1500 1500 1500 1510 1520
Tensile strength(N/mm2) 580-680 630-780 630-780 630-780 600-700 650-800 680-830
Elongation at rupture(%) >16 >12 >12 >12 >12 >12 >10
Variation of area(%) 65-75 60-75 65-75 65-75 65-75 65-75 65-75
Repeat Bending frequency(F/R) >5 >5 >5 >5 >5 >5 >5
Hardness(H.B.) 200-260 200-260 200-260 200-260 200-260 200-260 200-260
continuous service time(Hours/ ºC) -- ≥80/1300 ≥80/1300 ≥80/1300 ≥80/1250 ≥50/1350 ≥50/1350
Micrographic structure Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite
Magnetic properties Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic Magnetic



2.Introduction

(1)Resistance wire includes pure nickel, chromel alloy, Fe-Cr-Al alloy and copper nickel alloy.
Resistance heating wire is produced by smelting, steel rolling, forging, annealing, drawing, surface treatment, resistance control test, etc.

(2)It is widely used for making heating equipment like industrial furnace, civil heating appliance, various electrical resistors and locomotive braking resistor.
Bright Color Fecral Alloy Ribbon 0cr25al5 For Home Automation Heat Elements 0Bright Color Fecral Alloy Ribbon 0cr25al5 For Home Automation Heat Elements 1Bright Color Fecral Alloy Ribbon 0cr25al5 For Home Automation Heat Elements 2
