Product Details:
|
| Material: | Nichrome Nickel | Surface: | Bright |
|---|---|---|---|
| Thickness: | 0.2mm~1.0mm | Leading Time: | 20 Days After Getting The Payment |
| Application: | -200～900 ℃ | Item: | Nichrome Nickel N Type Thermocouple Strips Used For Thermocouple Tabs From 0.2mm To 0.8mm Thickness |
| High Light: | nichrome resistance wire,nichrome wire |
||

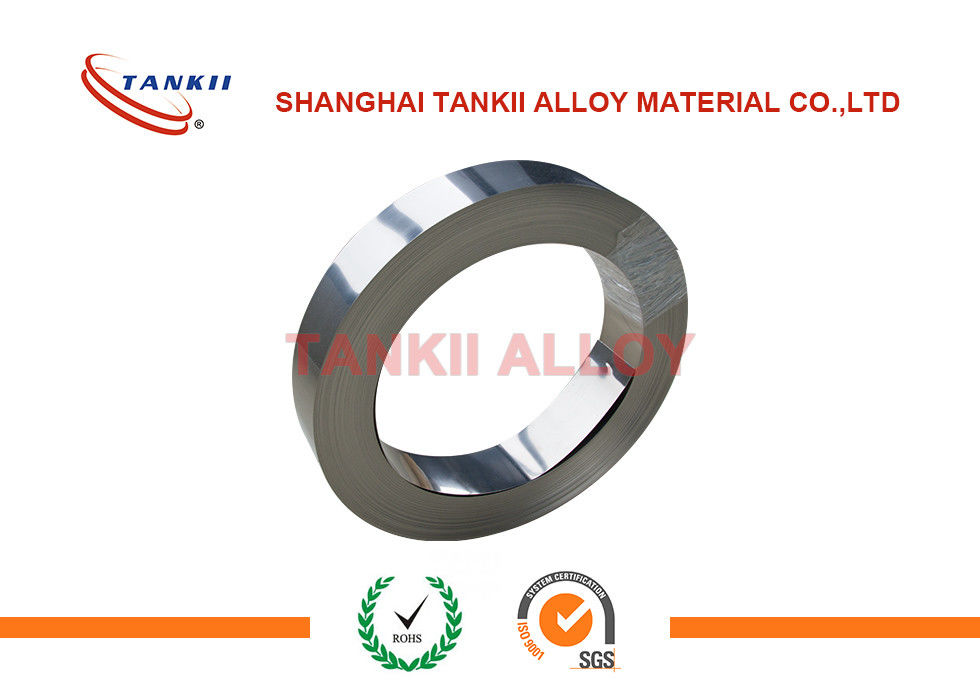

Nichrome Nickel N Type Thermocouple Strips Used For Thermocouple Tabs From 0.2mm to 0.8mm Thickness
Quick Description
A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.
The thermocouple strip have excellent performance and are extensively used in the thermcouple connector's plug.
Thermocouple temperature range and tolerance
| Type | Standard | Operating temperature range (°C) | Tolerance(°C) | |||
| Long term | Short term | Grade | Temperature range | Tolerance | ||
| Type K | GB/T2614 K | 1200 | 1300 | I | -40~1100 | ±1.5°C/±0.4%t |
| II | -40~1300 | ±2.5°C/±0.75%t | ||||
| Type N | GB/T17615 N | 1200 | 1300 | I | -40~1100 | ±1.5°C/±0.4%t |
| II | -40~1300 | ±2.5°C/±0.75%t | ||||
| Type E | GB/T4993 E | 750 | 900 | I | -40~800 | ±1.5°C/±0.4%t |
| II | -40~900 | ±2.5°C/±0.75%t | ||||
| Type J | GB/T4994 J | 600 | 750 | I | 0~750 | ±1.5°C/±0.4%t |
| II | ±2.5°C/±0.75%t | |||||
| Type T | GB/T2903 T | 300 | 350 | I | -40~350 | ±0.5°C/±0.4%t |
| II | ±1°C/±0.75%t | |||||
| III | -200~40 | ±1°C/±1.5%t | ||||
Tankii's thermocouple products list includes the following:
