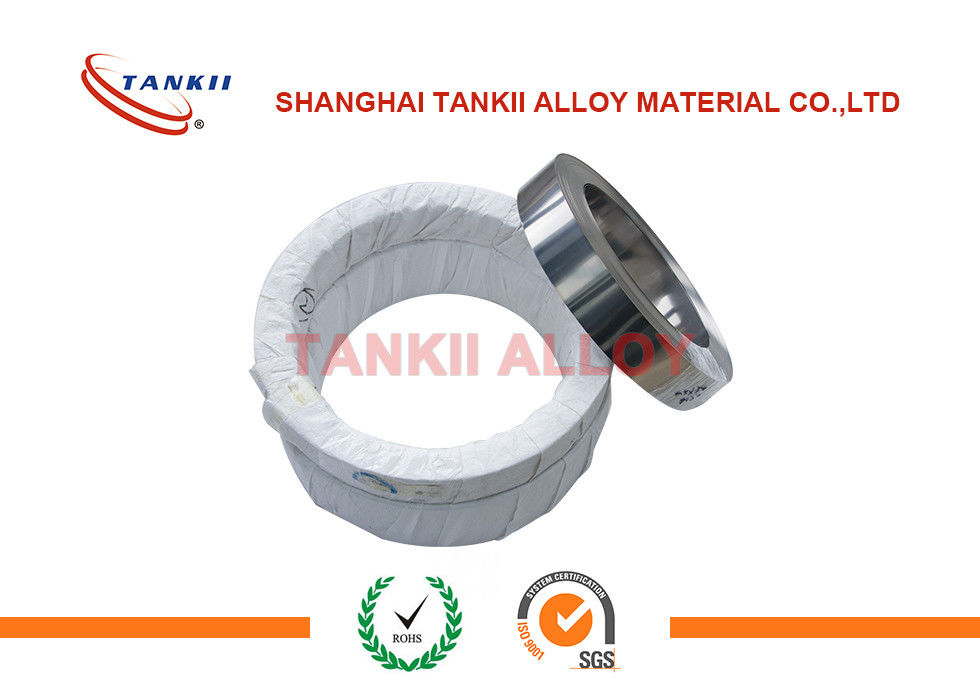

K Type Thermocouple Bare Strip Chromel Alumel Strips With Bright Surface

K Type Thermocouple Bare Strip Chromel Alumel Strips With Bright Surface
K Type Thermocouple Bare Strip Chromel Alumel Strips With Bright Surface K Type Thermocouple Bare Strip Chromel Alumel Strips With Bright Surface K Type Thermocouple Bare Strip Chromel Alumel Strips With Bright Surface K Type Thermocouple Bare Strip Chromel Alumel Strips With Bright Surface

Large Image :  K Type Thermocouple Bare Strip Chromel Alumel Strips With Bright Surface

Product Details:
Place of Origin: China Mainland
Brand Name: Tankii
Certification: ISO9001
Model Number: KP /KN, NP /NN
Payment & Shipping Terms:
Minimum Order Quantity: 50kg per leg
Price: USD25.6~30/kg
Packaging Details: Standard exoprt package
Delivery Time: About 20 days after getting the payment
Payment Terms: T/T, Paypal, Western Union, MoneyGram,
Supply Ability: 1000Ton per year

K Type Thermocouple Bare Strip Chromel Alumel Strips With Bright Surface

Description
Material: Chromel Alumel Surface: Bright
Thickness: 0.2mm~1.0mm Leading Time: 20 Days After Getting The Payment
Application: -200~900 ℃ Item: K Type Thermocouple Strips Chromel Alumel Strips Used For Thermocouple Connector Plug / Male Tab
Highlight:

nichrome resistance wire

,

nichrome wire



K Type Thermocouple Strips Chromel Alumel Strips Used For Thermocouple Connector Plug / Male Tab



Quick Description



A typical thermocouple construction consists of a pair of dissimilar metals that are electrically joined together at the sensing point and connected to a voltage measuring instrument at the other end. When one junction is hotter than the other, a thermal “electromotive” force (in millivolts) is produced that is roughly proportional to the difference in temperature between the hot and cold junctions.



The thermocouple strip have excellent performance and are extensively used in the thermcouple connector's plug.



Thermocouple temperature range and tolerance



Type Standard Operating temperature range (°C) Tolerance(°C)
Long term Short term Grade Temperature range Tolerance
Type K  GB/T2614 K 1200 1300 I -40~1100 ±1.5°C/±0.4%t
II -40~1300 ±2.5°C/±0.75%t
Type N  GB/T17615 N 1200 1300 I -40~1100 ±1.5°C/±0.4%t
II -40~1300 ±2.5°C/±0.75%t
Type E   GB/T4993 E 750 900 I -40~800 ±1.5°C/±0.4%t
II -40~900 ±2.5°C/±0.75%t
Type J  GB/T4994 J 600 750 I 0~750 ±1.5°C/±0.4%t
II ±2.5°C/±0.75%t
Type T GB/T2903 T 300 350 I -40~350 ±0.5°C/±0.4%t
II ±1°C/±0.75%t
III -200~40 ±1°C/±1.5%t






Tankii's thermocouple products list includes the following:

  • Thermocouple wire - round and flat
  • Thermocouple strip
  • Thermocouple extension leads/extension cables
  • Thermocouple compensatingcables
  • Bunched wire (Stranded wire)
  • Thermocouple protection tubes
  • Thermocouple connectors & plug
Application Range of thermocouple :

1. Aerospace and Composites
2. Aluminum
3. Food and Pharmaceutical
4. Forgings
5. Glass, Ceramics, Clay Tiles, Bricks
6. Heat Treating
7. Petroleum, Downhole Oil & Gas
8. Sensor Manufacturing
9. Steel
10. Utilities Power Generation

The application picture of thermocouple wire : thermocouple connector's plug
K Type Thermocouple Bare Strip Chromel Alumel Strips With Bright Surface 0




 Delivery and Packing of thermocouple wire:

1. Packaging Details :  with plastic film wrapped and carton package.

2. Leading time : 5 - 7 days, as the order quantity of thermocouple strip.

3. Delivery: By express, air, sea as per thermocouple strip


Please contact us if you are in the market of thermocouple strips.
