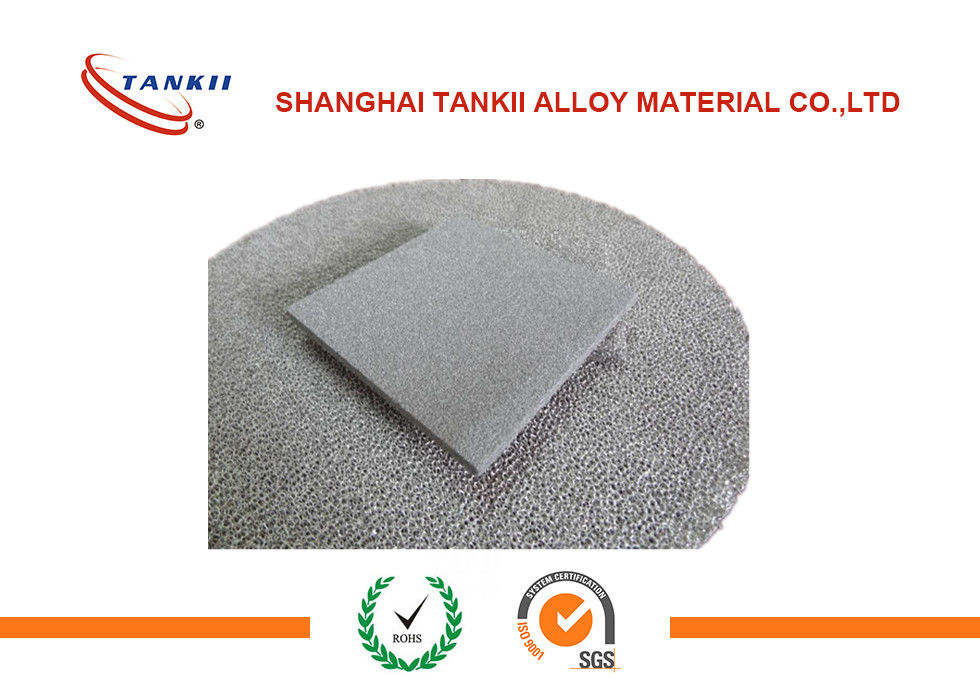

5mm Nickel Foam Three-Dimensional Mesh For Automotive Exhaust Gas Filtration

5mm Nickel Foam Three-Dimensional Mesh For Automotive Exhaust Gas Filtration
5mm Nickel Foam Three-Dimensional Mesh For Automotive Exhaust Gas Filtration 5mm Nickel Foam Three-Dimensional Mesh For Automotive Exhaust Gas Filtration 5mm Nickel Foam Three-Dimensional Mesh For Automotive Exhaust Gas Filtration 5mm Nickel Foam Three-Dimensional Mesh For Automotive Exhaust Gas Filtration

Large Image :  5mm Nickel Foam Three-Dimensional Mesh For Automotive Exhaust Gas Filtration

Product Details:
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: ISO9001:2008 ROHS
Model Number: Ni-CD
Payment & Shipping Terms:
Minimum Order Quantity: 20kg
Price: To negotiate
Packaging Details: Spool, Coil, Carton, Plywood Case with Plastic Film As Custom demands
Delivery Time: 7-12 days
Payment Terms: L/C, T/T, Western Union, Paypal
Supply Ability: 20+TON+MONTH

5mm Nickel Foam Three-Dimensional Mesh For Automotive Exhaust Gas Filtration

Description
Shape: 3D Mesh Foam Type: Pure Nickel Foam
Dimension: Tailor Made Thickness: 5 Mm
Porosity: 95%-98% Composition: Nickel, Cobalt
High Light:

nickel 200 strip

,

nickel copper alloy

5mm Nickel Foam Three-Dimensional Mesh For Automotive Exhaust Gas Filtration



Fast Review:

Nickel foam is a type of new material, it can be used in many applications. It can be used as electrode material, fuel cells, material catalyst, absorbent sound ect. Our factory has a long history in the production of this type of material. Normally we do it according to the specific request of the client. The size can be different, such as 500mm * 500mm * 10mm, 500mm * 500mm * 15mm, 1000mm * 500mm * 10mm, etc. The core size is usually 5mm, length, width and thickness can be made according to your specific needs. Our factory has a long history in the production of this material, what quality can be guaranteed, also the price is very competitive. If you have any questions about the material please do not hesitate to contact us.



Application areas:
Exhaust gas filter carrier material for diesel and gasoline engines

Metallurgical, chemical engineering and industrial waste gas filtration (such as aluminum water filtration and industrial oil mist filtration), kitchen fume and other civil filtration

Gas layer material for various industrial and civil infrared burners

Fluidized plate porous material made of foam metal material

The control of fluid distribution state, the transfer of powder materials and the fluidized bed operation have been widely used in industrial processes. Especially, fluidized bed technology is an important means for mass transfer, heat transfer, mixing and chemical reaction in chemical processes. . Among them, the control of the gas distribution state requires the use of a gas permeable orifice material. The foam metal porous fluidized plate is made by cutting using the world's leading new porous metal material. It has a unique three-dimensional uniform through-hole structure, uniform pores, porosity of 95%, and through-hole ratio of over 98%. It can be used in petrochemical, metallurgical machinery, energy and environmental protection, textile and electric power, aerospace, pharmaceutical and other industries with rectification, powder conveying, gas diffusion, drying, soaking, environmental protection and other functional requirements.

Foam metal for automobile exhaust gas catalytic converter carrier

The foam metal carrier catalyst has the advantages of quick ignition, small volume, high strength and good heat resistance, and has been widely used in motorcycle exhaust gas purification. It is pretreated on the surface of the metal foam carrier, and a transition layer is formed between the metal foam carrier and the active coating to solve the thermal expansion matching gradient transition between the metal material and the active coating, and the coating layer is coated with Ce. The active coating of rare earth elements such as La, Pr, etc., and then loaded with an active component containing a noble metal such as Pt or Rh. The surface treatment of the carrier forms a transition layer, and the bonding strength of the coating is good; the high temperature resistant surface area material is used, the high temperature resistance of the catalyst is good; the ratio of noble metal to rare earth element is optimized, the catalyst has a low light-off temperature; Oxygen material formula, high efficiency of catalytic converter purification; automatic coating equipment suitable for metal honeycomb carrier, uniform coating uniformity; long life of metal catalyst: gasoline vehicles up to 80,000 km; strict quality control and inspection The product quality is stable; the formulas of different costs can be selected, and the emission is up to standard while taking into account the economy.

The advantages of foam metal over honeycomb ceramics:

1. Foam metal possesses the characteristics of metal, can be deformed and resists shock, greatly improving the service life of three-way catalytic converter for automobile and motorcycle exhaust.

2. The high temperature resistance and thermal shock resistance of foam metal is better than that of foam ceramics.



Nickel Foam,
Thickness:0.9mm, Bulk density:0.62g.cm-3, Porosity:93%, Pores/cm:20, Purity:99.5%
Nickel Foam,
Thickness:1.6mm, Bulk density:0.45g.cm-3, Porosity:95%, Pores/cm:20, Purity:99.5%
Nickel Foam,
Thickness:6mm, Bulk density:0.45g.cm-3, Porosity:95%, Pores/cm:4, Purity:99.5%
Nickel Foam,
Thickness:6mm, Bulk density:0.45g.cm-3, Porosity:95%, Pores/cm:8, Purity:99.5%
Nickel Foam,
Thickness:6mm, Bulk density:0.45g.cm-3, Porosity:95%, Pores/cm:16, Purity:99.5%



5mm Nickel Foam Three-Dimensional Mesh For Automotive Exhaust Gas Filtration 05mm Nickel Foam Three-Dimensional Mesh For Automotive Exhaust Gas Filtration 1
