Product Details
Place of Origin: China
Brand Name: Tankii
Certification: ISO RoHS AISI ASTM GB
Model Number: 0Cr21Al6Nb
Payment & Shipping Terms
Minimum Order Quantity: 20K g
Price: USD 10.86/Kg
Packaging Details: Wooden Pallet, Wooden Case, Spool
Delivery Time: 10-20 working days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Tons/Month
Packing: |
Wooden Pallet, Wooden Case, Spool |
Surface: |
Bright Or Oxidated |
Craft: |
Cold Rolled |
Characteristics: |
High Resistivity, Good Oxidation Resistance |
The Highest Use Temperature: |
1350c |
Density: |
7.1g/cm3 |
Resisivity: |
1.45 |
Sample: |
Free |
Shape: |
Strip/Wire/Ribbon/Pipe/Sheet/Bar/Foil |
Grade: |
OCr25Al5 OCr23AL5 Cr21AL6 Alloy875 Resistohm 145 |
Packing: |
Wooden Pallet, Wooden Case, Spool |
Surface: |
Bright Or Oxidated |
Craft: |
Cold Rolled |
Characteristics: |
High Resistivity, Good Oxidation Resistance |
The Highest Use Temperature: |
1350c |
Density: |
7.1g/cm3 |
Resisivity: |
1.45 |
Sample: |
Free |
Shape: |
Strip/Wire/Ribbon/Pipe/Sheet/Bar/Foil |
Grade: |
OCr25Al5 OCr23AL5 Cr21AL6 Alloy875 Resistohm 145 |

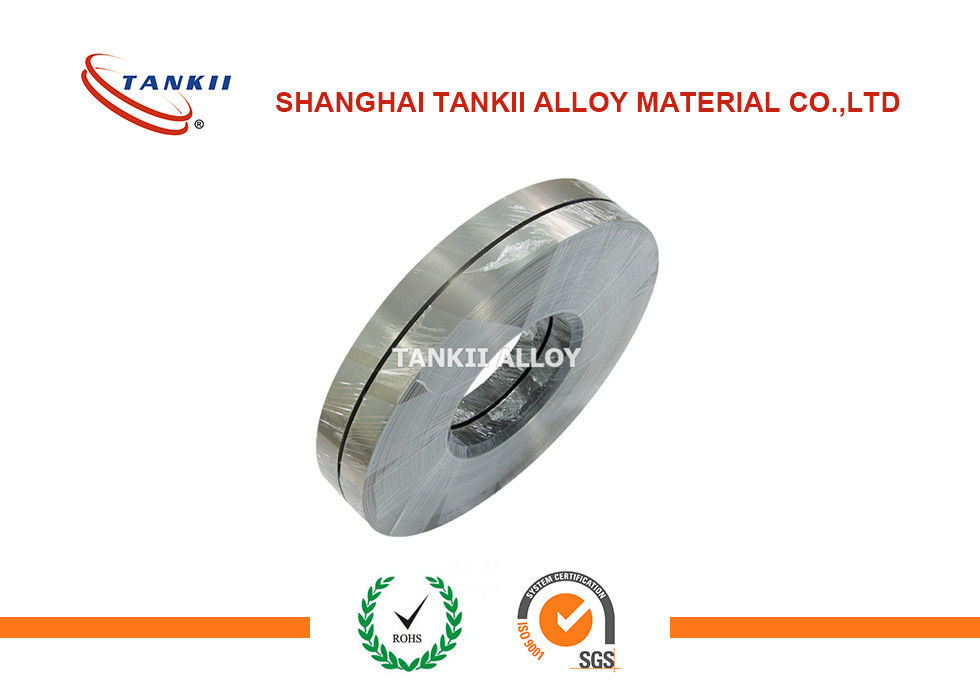

0.03*80mm Bright Silver White 0Cr21Al6Nb Flat wire for Battery
Fecral (0Cr21Al6)
1. Introduction to products
FeCrAl Cr21Al6, With the characteristics of high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature,
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max0.06 | Max 0.025 | Max 0.025 | Max0.70 | Max 1.0 | 19.0~22.0 | Max 0.60 | 5.0~7.0 | Bal. | - |
2. Application
FeCrAl Resistance Wire, widely apply to chemical industry, metallurgy mechanism, glass industry, ceramic industry, home appliance area and so on.
3. Characteristics
FeCrAl Resistance wire, Stable performance; Anti-oxidation; Corrosion resistance; High temperature stability; Excellent coil-forming ability; Uniform and beautiful surface condition without spots.
4. Advantage
High quality, short delivery time, small MOQ.
5. Packing detail
Spool, coil, wooden case(as per client's requiryment).
6. Size
Wires: 0.018-10mm Ribbons: 0.05*0.2-2.0*6.0mm
| The allowable tolerance of alloy wire and rod diameter GB/T1234-2102 | ||
| Category | Diameter(mm) | Tolerance(mm) |
| Cold-drawn steel wire | 0.02 ~ 0.025 | 0.02 ~ 0.025 |
| 0.025 ~ 0.03 | 0.025 ~ 0.03 | |
| 0.03 ~ 0.05 | 0.03 ~ 0.05 | |
| 0.05 ~ 0.1 | 0.05 ~ 0.1 | |
| 0.1 ~ 0.3 | 0.1 ~ 0.3 | |
| 0.3 ~ 0.5 | 0.3 ~ 0.5 | |
| 0.5 ~ 1.0 | 0.5 ~ 1.0 | |
| 1.0 ~ 3.0 | 1.0 ~ 3.0 | |
| 3.0 ~ 6.0 | 3.0 ~ 6.0 | |
| 6.0 ~ 8.0 | 6.0 ~ 8.0 | |
| 8.0 ~ 10.0 | 8.0 ~ 10.0 | |
| Hot-finished rod | 5.5 ~ 12.0 | ±0.4 |
Furnace resistance alloy heating wire
1. A quite reasonable price
2. Stable performance:
3 high working temperature
Furnace resistance alloy heating wire
Specification:
We specializing in Ferro-Chrome (Fe-Cr-AL) wire, Nickel-Chrome (Nichrome) wire, Copper Nickel (Constantan) wire, Stainless steel wire and related products in alloys tailored to meet specific customer requirements.
Round wire from SWG 0 to SWG 48(Dia 0.04mm-8.0mm).
Ribbon/strip: Thickness: 0.04mm-0.75mm
Width: 0.08mm-6.0mm
Our furnace resistance alloy heating ribbon is of high quality with following features:
1. A quite reasonable price
2. Stable performance: High working temperature(The highest temperature can be 1400), high strength under temperature, corrosion resistance, long life-span, allowable high surface load, small specific gravity, good formability and weldability.
Delivery status and supply state of furnace resistance alloy heating ribbon
Wire and plate with the looseness or oxidation colour soft modal supply.
Strip except special requirements outside, general with after annealing oxidation colour supply.
The flat silk thread and protecting gas to light after annealing soft modal supply.
2, product packaging of furnace resistance alloy heating ribbon
Wire or strips to pack cloth bandaged volumes supply.
Thread and flat silk, axis encapsulate supply.
3, export products and users have special requirement, negotiation.
Note
1, when the design should be based on the power wiring method, reasonable surface load, the correct choice of silk diameter,
2, before installation coping furnace thorough examination, cleared ferritic, "carbon, and the electric stove contact risks to avoid short circuit, in case caused furnace silk breakdown,
3, when installation should press design wiring method properly connected;
4, in use before should check the sensitivity of the temperature control system, in case of failure, cause temperature burnt.
