Product Details
Place of Origin: Shanghai china
Brand Name: TANKII
Certification: SGS ISO
Model Number: Ni201
Payment & Shipping Terms
Minimum Order Quantity: 1KG
Price: 454USD/ KG
Packaging Details: Spool + carton+ Wooden case
Delivery Time: 7-12 works
Payment Terms: L/C, T/T, Western Union
Supply Ability: 50Tons per month
Packing: |
Wooden Cases Or Cartons |
The Highest Use Temperature: |
1200c |
Resisivity: |
1.09uΩ/M |
Density: |
8.4G/Cm3 |
Surface: |
Bright |
Characteristics: |
High Resistivity, Good Oxidation Resistance |
Sample: |
Free |
Shape: |
Strip/Wire/Ribbon/Pipe/Sheet/Bar/Foil |
Trade Term: |
FOB, EXW, CIF |
Packing: |
Wooden Cases Or Cartons |
The Highest Use Temperature: |
1200c |
Resisivity: |
1.09uΩ/M |
Density: |
8.4G/Cm3 |
Surface: |
Bright |
Characteristics: |
High Resistivity, Good Oxidation Resistance |
Sample: |
Free |
Shape: |
Strip/Wire/Ribbon/Pipe/Sheet/Bar/Foil |
Trade Term: |
FOB, EXW, CIF |

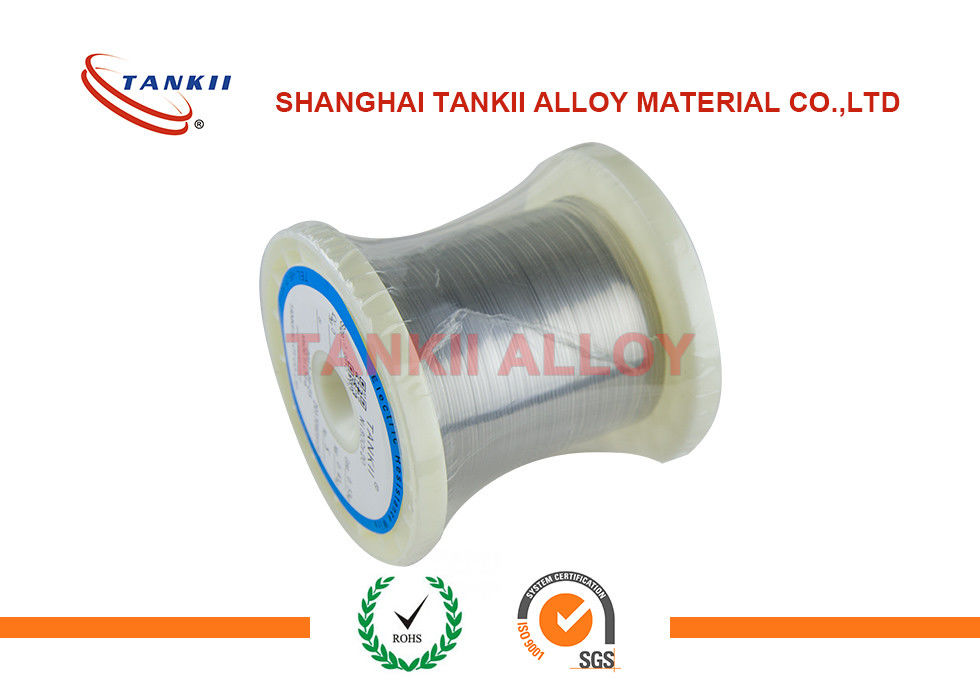

99.6%Min Ni201 / Ni200 / Ni212 /NiMn2 Pure Nickel Micro wire / Strip for Medical 0.025mm
Pure Nickel Strip is primarily used for chemical treatment, preservation and production of synthetic fiber materials. The Pure Nickel strip can be operated up to 600F. It has outstanding magnetic properties and thermal and electrical conductivity.
Pure Nickel strip can be used as cathode tap, cell connector of nickel metal hydride battery, nickel cadmiumbattery and lithium battery. It is also used as the pin of PTC devices and Electric vacuum components.
Specification of Pure Nickel Strip:
| Strip Size | Thickness - 0.005mm above, Width- 0.2mm above |
Chemical Composition of Pure Nickel Strip:
| Nickel | 99.6% |
| Copper | 0.25% |
| Iron | 0.40% |
| Manganese | 0.35% |
| Carbon | 0.15% |
| Silicon | 0.35% |
| Sulfur | 0.01% |
Physical properties of Pure Nickel Strip:
Density, g/cm3 |
8.89 |
Melting Range, °C |
1435-1446 |
Specific Heat, J/kg.°C |
456 |
Curie Temperature, °C |
360 |
The description of products
1) The chemical composition:
Name |
Brand | Main chemical composition,% | executive standard |
||||||
| Ni+Co | Cu | Si | Mn | C | Mg | impurity | |||
| Pure nickel |
Ni201 | ≥99.0 | ≤0.015 | ≤0.03 | ≤0.002 | ≤0.01 | ≤0.01 | ≤0.1 | GB/T5235-2007 |
| Ni200 | ≥99.0 | ≤0.10 | ≤0.10 | ≤0.05 | ≤0.10 | ≤0.10 | ≤0.5 | ||
2) Size and Tolerances
| Diameter | 0.025-0.03 | >0.03-0.10 | >0.10-0.40 | >0.40-0.80 | >0.80-1.20 | >1.20-2.00 |
| Tolerance | ±0.0025 | ±0.005 | ±0.006 | ±0.013 | ±0.02 | ±0.03 |
3) Properties of Products
| Diameter(mm) | Status | Tensile strength,N/mm2 | Elongation% (no less than) |
|
| Ni201 | Ni200 | |||
| 0.03-0.20 | M | ≥370 | ≥420 | 15 |
| 0.20-0.50 | ≥340 | ≥390 | 20 | |
| 0.50-1.00 | ≥310 | ≥370 | 20 | |
| 1.00-6.00 | ≥290 | ≥340 | 25 | |
| 0.10-0.50 | Y2 | 685-885 | 780-980 | - |
| 0.50-1.00 | 580-785 | 685-835 | - | |
| 1.00-6.00 | 490-640 | 540-685 | - | |
| 0.03-0.09 | Y | 780-1275 | 880-1325 | - |
| 0.09-0.50 | 753-980 | 830-1080 | - | |
| 0.50-1.00 | 685-880 | 735-980 | - | |
| 1.00-6.00 | 535-835 | 640-885 | - | |
