Min 99.5% Pure Nickel Wire N02200 / N02201 Filament Wire For Positive Electrode

Min 99.5% Pure Nickel Wire N02200 / N02201 Filament Wire For Positive Electrode
Min 99.5% Pure Nickel Wire N02200 / N02201 Filament Wire For Positive Electrode Min 99.5% Pure Nickel Wire N02200 / N02201 Filament Wire For Positive Electrode Min 99.5% Pure Nickel Wire N02200 / N02201 Filament Wire For Positive Electrode Min 99.5% Pure Nickel Wire N02200 / N02201 Filament Wire For Positive Electrode

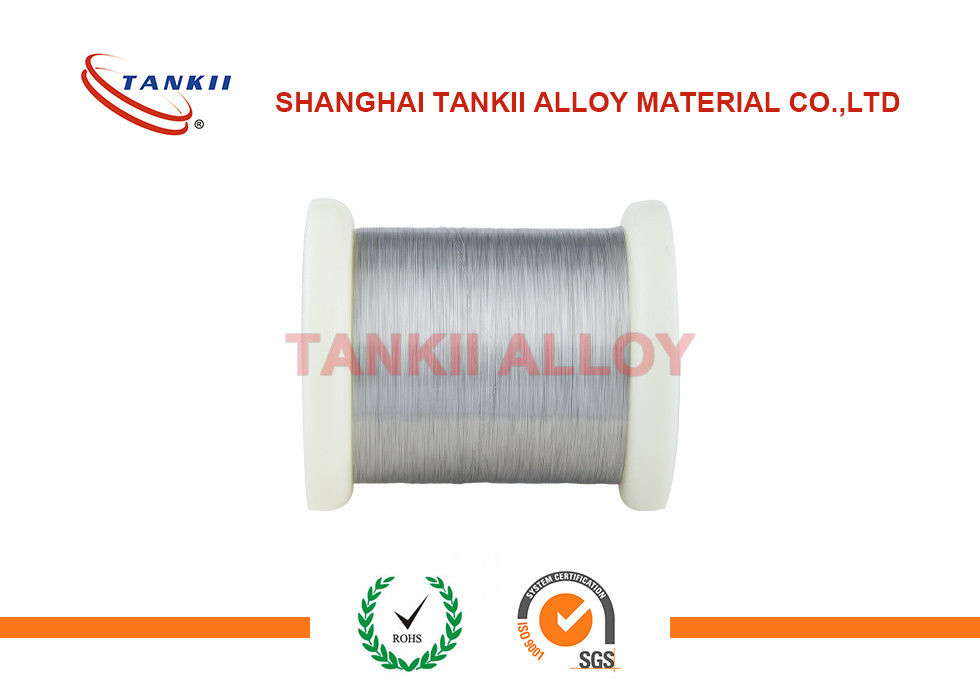

Large Image :  Min 99.5% Pure Nickel Wire N02200 / N02201 Filament Wire For Positive Electrode

Product Details:
Place of Origin: Shanghai,China
Brand Name: TANKII
Certification: ISO9001:2008
Model Number: Ni200
Payment & Shipping Terms:
Minimum Order Quantity: 20kg
Price: To negotiate
Packaging Details: spool, coil, carton, wooden case with plastic film according to client's requirements
Delivery Time: 7-12DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000+TON+YEAR

Min 99.5% Pure Nickel Wire N02200 / N02201 Filament Wire For Positive Electrode

Description
Purity: 99.5% Min Surface: Bright, Shiny
Material: Nickel Type: Filament, Microfilament
Colour: Silver Feature: Low Resistivity, Corrosion Resistance
High Light:

nickel foil

,

nickel 200 strip

Min 99.5% Pure Nickel Wire N02200 / N02201 Filament Wire For Positive Electrode



The mechanical properties of nickel are close to that of carbon steel, and the corrosion resistance of the metal is only inferior to that of silver in the metal materials, and the surface of the nickel wire will produce a layer of protective film. Used for electric light source materials, coating with high surface quality, good processing performance, for production work such as anode, spacer, electrode holder, etc., in the lighting as a guide wire, also in the chlor alkali industry plays a very important role. Electrical grade material for use in different conditions, and a variety of components of the alloy. And the electrode materials are required to have low electrical resistivity lest cause the electrode to overheat, high temperature strength to reduce.



Material:Ni200,Ni201

Size:Thickness 0.15-50mm, Width10-1000mm, Length according to your request

Purity:>=99.6%

Standard: ASTM B162

Processing: Hot/cold rolled



Chemical composition



Grade

Element Composition/%
Ni+Co Mn Cu Fe C Si Cr S
Ni201 ≥99.0 ≤0.35 ≤0.25 ≤0.30 ≤0.02 ≤0.3 ≤0.2 ≤0.01
Ni200 ≥99.0 /≤0.35 ≤0.25 ≤0.30 ≤0.15 ≤0.3 ≤0.2 ≤0.01













1.advantage



1)the specifications can be made according to consumer's request.



2)we also can pouch the Nickel into pieces according to different request,the sizec can be customized.



2.Features

High strength heat-resistant properties and corrosion resistance



3.Application

Chemical processing,marine engineering, power generation,oil and gas extraction,petrochemical processing,telecomminications etc



Type Wire gauge Length in Spools
A1 wire 20/22/24/26/28/30/32/34/36 Gauge 5m;10m;50m,100m,50g,100g,500g,1kg,3kg
Nickel wire 20/22/24/26/28/30/32/34//36 Gauge 5m;10m;50m,100m,50g,100g,500g,1kg,3kg
Nichrome 80 wire 20/22/24/26/28/30/32/34/36 Gauge 5m;10m;50m,100m,50g,100g,500g,1kg,3kg
Titanium wire 20/22/24/26/28/30/32/34/36 Gauge 5m;10m;50m,100m,50g,100g,500g,1kg,3kg
Stainless steel 304, 316 wire 20/22/24/26/28/30/32/34/36 Gauge 5m;10m;50m,100m,50g,100g,500g,1kg,3kg
Flat wire

5m;10m;50m,100m,50g,100g,500g,1kg,3kg







Nickel 200 Characteristic as below:
Highly resistant to various reducing chemicals

Excellent resistance to caustic alkalies

High electrical conductivity

Excellent corrosion resistance to distilled and natural waters

Resistance to neutral and alkaline salt solutions

Excellent resistance to dry fluorine

Widely used to handle caustic soda

Good thermal, electrical and magnetostrictive properties

Offers some resistance to hydrochloric and sulfuric acids at modest temperatures and concentrations
