Product Details
Place of Origin: SHANGHAI
Brand Name: TANKII
Certification: ISO9001
Model Number: Inconel 600
Payment & Shipping Terms
Minimum Order Quantity: 100kg
Price: usd + 19.5 + kg
Packaging Details: Wooden cases or cartons
Delivery Time: 10~15day
Payment Terms: L/C, T/T, D/P, Western Union, MoneyGram
Supply Ability: 50 + Ton + month
Type: |
Seamless Pipe/ Tube |
Colour: |
Silver |
Application: |
Exhaust System Parts, Thermalcouple Pipe |
Material: |
Nickel, Chromium, Iron |
Feature: |
Corrosion Reisitance, Good Mechanical Property |
Surface: |
Solid, Bright |
Type: |
Seamless Pipe/ Tube |
Colour: |
Silver |
Application: |
Exhaust System Parts, Thermalcouple Pipe |
Material: |
Nickel, Chromium, Iron |
Feature: |
Corrosion Reisitance, Good Mechanical Property |
Surface: |
Solid, Bright |

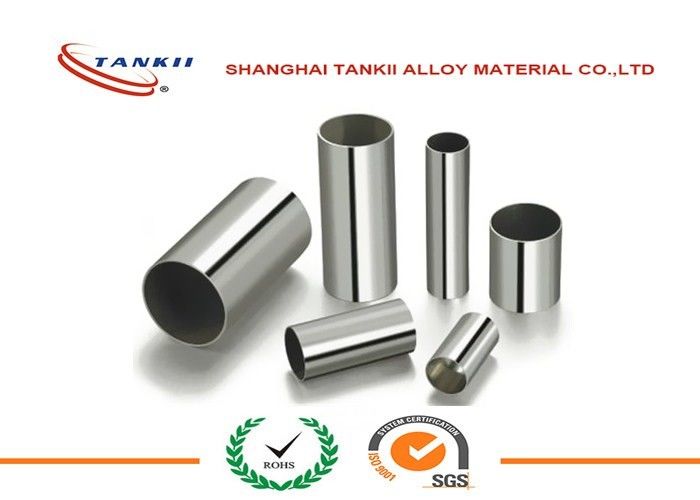

Inconnel600 Seamless Stainless Steel Pipe Tube With Good Mechanical Property
You can find below Characters of Inconel 600:
(1) has the very good reduction, oxidation resistance, nitride medium corrosion performance;
(2) has good resistance to stress corrosion cracking at noemal and high temperature performance;
(3) has good performance of dry chlorine and hydrogen chloride gas corrosion resistant;
(4) has good mechanical properties at the zero, room and high temperature;
(5) has the very good creep rupture strength, recommended above 700 ° C working environment;
Application Field of Inconel 600:
(1)thermowell in the erosion atmosphere;
(2)vinyl chloride monomer production: corrosion resistance to chlorine, hydrogen chloride, oxidation and carbonization;
(3)uranium oxide into six fluoride: hydrogen corrosion resistance;
(4)the production and usage of caustic alkali metal field, especially the environment of using sulfide;
(5)make titanium dioxide in the way of chlorine;
(6)organic or inorganic chloride and fluoride production: corrosion resistance to chlorine and fluorine;
(7)nuclear reactor;
(8)retort and parts of heat treatment furnace, especially in the carbide and nitride atmosphere;
(9)catalytic regenerator in petrochemical production which in the application of above 700°C is recommended to use alloy 600 to obtain a longer service life;
Chemical Compositon of Inconel 600 Wt.%:
| Inconel 600 (UNS N06600/NS 312) | ||||||||||||||
| % | Ni | Cr | Fe | C | Mn | Si | Cu | P | S | |||||
| Min | 72 | 14 | 6 | |||||||||||
| Max | 17 | 10 | 0.15 | 1 | 0.5 | 0.5 | 0.015 | 0.015 | ||||||
| Typical Mechanical Properties | Tensile Srength Rm N/mm2 | Yield Strength Rp0.2N/mm2 | Elongation A5 % | Hardness HB |
| annealed treatment | 550 | 240 | 30 | 195 |
| solution treatment | 500 | 180 | 35 | 185 |
Close Grade:
GH3600,GH600(China),
NC15Fe(France),
W. Nr .2.4816,NiCr15Fe(Germany),
NA14(Britain),
Inconel600,UNS NO6600(USA)
NiCr15Fe8(ISO)
Inconel600 Standard:UNS N06600,DIN/EN 2.4816,ASTM B168,ASME SB-168,AMS 5540,NCF 600
| Ni | C | Mn | Fe | S | Si | Cu | Cr | Al | Ti | Nb | Mo | |
| Nickel 200 | 99.5 | 0.08 | 0.2 | 0.2 | 0.005 | 0.2 | 0.1 | -- | -- | -- | -- | -- |
| Nickle 201 | 99.5 | 0.01 | 0.2 | 0.2 | 0.005 | 0.2 | 0.1 | -- | -- | -- | -- | -- |
| Monel 400 | 66.5 | 0.2 | 1 | 1.2 | 0.01 | 0.2 | 31.5 | -- | -- | -- | -- | -- |
| Monel 401 | 42.5 | 0.05 | 1.6 | 0.4 | 0.008 | 0.1 | -- | -- | -- | -- | -- | |
| Monel K500 | 66.5 | 0.1 | 0.8 | 1 | 0.005 | 0.2 | 29.5 | -- | 2.7 | 0.5 | -- | -- |
| Inconel 600 | 76 | 0.08 | 0.5 | 8 | 0.006 | 0.2 | 0.2 | 15.5 | -- | -- | -- | -- |
| Inconel 601 | 60.5 | 0.05 | 0.5 | 14.1 | 0.007 | 0.2 | 0.5 | 23 | 1.4 | -- | -- | -- |
| Inconel 718 | 52.5 | 0.04 | 0.2 | 18.5 | 0.008 | 0.2 | 0.2 | 19 | 0.5 | 0.9 | 5.1 | 3 |
| Inconel X-715 | 73 | 0.04 | 0.5 | 7 | 0.005 | 0.2 | 0.2 | 15.5 | 0.7 | 2.5 | 1 | -- |
| Incoloy 800 | 32.5 | 0.05 | 0.8 | 46 | 0.008 | 0.5 | 0.4 | 21 | 0.4 | 0.4 | -- | -- |
| Incoloy 803 | 32.0-37.0 | 0.06-0.10 | ≤1.50 | ≤0.015 | ≤1.0 | ≤0.75 | 25.0-29.0 | 0.15-0.60 | 0.15-0.6 | -- | -- | |
| Incoloy 825 | 42 | 0.03 | 0.5 | 30.4 | 0.02 | 0.2 | 2.2 | 21.5 | 0.1 | 0.9 | -- | 3 |
