Product Details
Place of Origin: Shanghai, Tankii
Brand Name: TANKII
Certification: ISO9001
Model Number: Ni80Cr20
Payment & Shipping Terms
Minimum Order Quantity: 20kg
Price: TO negotiate
Packaging Details: Spool, Coil, Carton, Wooden Case with Plastic Film According to Custom's demands
Delivery Time: 7-12 DAYS
Payment Terms: L/C, T/T, Western Union, MoneyGram
Supply Ability: 2000+TON+YERA
Advantage: |
High Working Temperature, Corrosion Resistance |
Port: |
Shanghai, China |
Shape: |
Strip/Tape/ Foil/ Sheet |
Material: |
Nichrome |
Feature: |
Good Corrosion Resistance, High Operating Temperature |
Insulation Material: |
None |
Advantage: |
High Working Temperature, Corrosion Resistance |
Port: |
Shanghai, China |
Shape: |
Strip/Tape/ Foil/ Sheet |
Material: |
Nichrome |
Feature: |
Good Corrosion Resistance, High Operating Temperature |
Insulation Material: |
None |

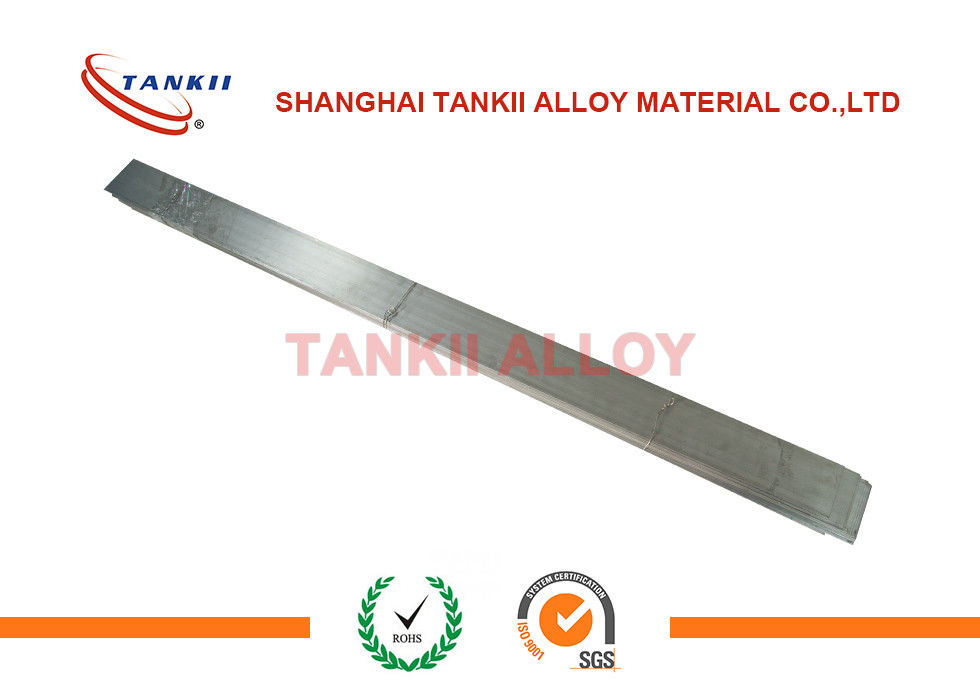

Nchw-1 Nickel Chromium Alloy Strip Stainless Steel Strip High Working Temperature
Nickel Chromium Alloy Introduction:
Nickel Chromium alloy has high resistivity, good anti-oxidation properties, high temperature strength, very good form stability and weld ability. It is widely used in electrical heating element material, resistor, industrial furnaces, etc.
Detailed Description:
Grade: NiCr 80/20 is also called Chromel A, Nikrothal 80, N8, Nichrome V, HAI-NiCr 80, Tophet A, Resistohm 80, Cronix 80, Protoloy, Nikrothal 8, Alloy A, MWS-650, Stablohm 650, NCHW1
We also produce other kind of nichrome resistance wire, such as NiCr 70/30,NiCr 60/15,NiCr 60/23,NiCr 37/18, NiCr 35/20, NiCr 35/20, NiCr 25/20,Karma
Grade: Ni80Cr20 ,also called Nikrothal 8,MWS-650,NiCrA,Tophet A,HAI-NiCr 80,Chromel A,Alloy A,N8,Resistohm 80, Stablohm 650,Nichorme V,Nikrothal 80 etc.
Chemical Content(%)
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.03 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 20.0~23.0 | Bal. | Max 0.50 | Max 1.0 | - |
Mechanical Properties of nichrome wire
| Max Continuous Service Temperature: | 1200ºC |
| Resisivity 20ºC: | 1.09 ohm mm2/m |
| Density: | 8.4 g/cm3 |
| Thermal Conductivity: | 60.3 KJ/m·h·ºC |
| Coefficient of Thermal Expansion: | 18 α×10-6/ºC |
| Melting Point: | 1400ºC |
| Elongation: | Min 20% |
| Micrographic Structure: | Austenite |
| Magnetic Property: | nonmagnetic |
Temperature Factors Of Electrical Resistivity
| 20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC |
| 1 | 1.006 | 1.012 | 1.018 | 1.025 | 1.026 | 1.018 |
| 700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC | 1300ºC |
| 1.01 | 1.008 | 1.01 | 1.014 | 1.021 | 1.025 | - |
Regular size of Nickel alloy wire :
We supply products in the shape of wire,flat wire,strip.We can also make customized material according to useris requests.
Bright and white wire--0.025mm~3mm
Pickling wire:1.8mm~10mm
Oxidized wire:0.6mm~10mm
Flat wire:thickness 0.05mm~1.0mm,width 0.5mm~5.0mm
Application
Cr20Ni80:in braking resistors,industrial furnaces,flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.
Cr30Ni70:in industrial furnaces. well suited for reducing atmospheres, as it is not subject to 'green rot'.
Cr15Ni60:in braking resistors,industrial furnaces,hot plates, grills, toaster ovens and storage heaters. For suspended coils in air heaters in clothes dryers, fan heaters, hand dryers.
Cr20Ni35:in braking resistors,industrial furnaces.In night-storage heaters, convection heaters, heavy duty rheostats and fan heaters. For heating cables and rope heaters in defrosting and de-icing elements, electric blankets and pads, car seats, baseboard heaters and floorheater.
Cr20Ni30:in solid hot plates, open coil heaters in HVAC systems, night-storage heaters, convection heaters, heavy duty rheostats and fan heaters.For heating cables and rope heaters in defrosting and de-icing elements, electric blankets and pads, car seats, baseboard heaters, floor heaters and resistors.
