Product Details
Place of Origin: Shanghia, China
Brand Name: TANKII
Certification: SGS
Model Number: 0Cr21Al6Nb
Payment & Shipping Terms
Minimum Order Quantity: 100KG
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union, paypal
Supply Ability: 300 Tons per month
Material: |
0Cr21Al6Nb |
Resistivity: |
1.45 |
Density: |
7.1 G/m3 |
Shape: |
Wire / Strip / Ribbon / Flat Wire |
Surface: |
Bright / Oxidation |
Width: |
1.0-1000mm |
Thickness: |
0.02mm-6.0mm |
Diameter: |
0.05-8.0mm |
Material: |
0Cr21Al6Nb |
Resistivity: |
1.45 |
Density: |
7.1 G/m3 |
Shape: |
Wire / Strip / Ribbon / Flat Wire |
Surface: |
Bright / Oxidation |
Width: |
1.0-1000mm |
Thickness: |
0.02mm-6.0mm |
Diameter: |
0.05-8.0mm |

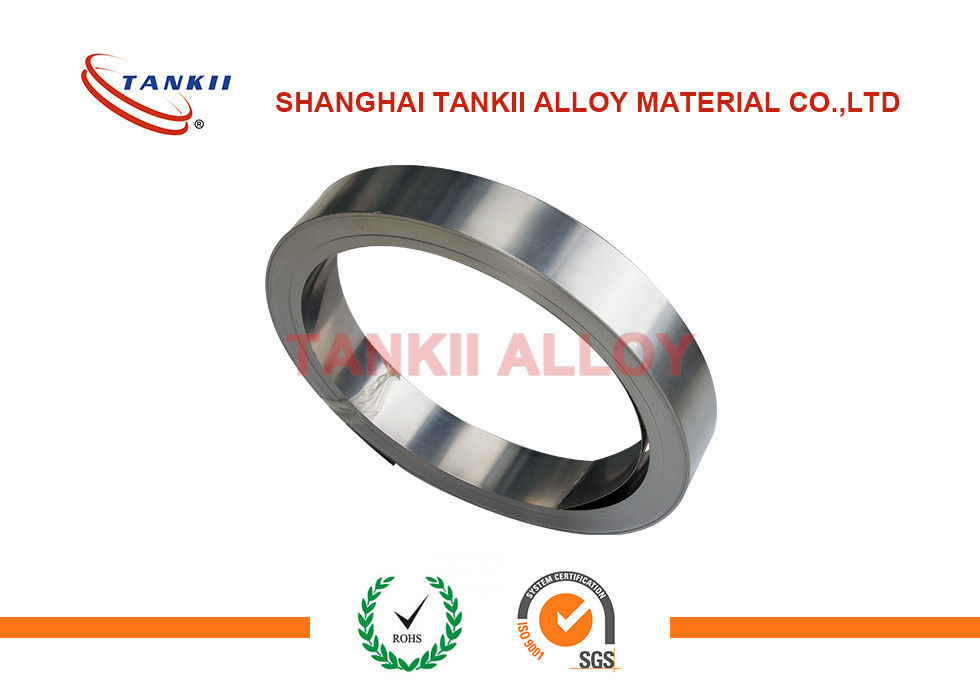

Heating Element, 0cr21al6nb Strip for Higt-Temperature Industrial Furnace
General Description
FeCrAl alloy is made by a high-temperature, ferritic iron-chromium-aluminium alloy which can be used at temperatures up to 1350degrees. Typical applications for 0Cr21Al6Nb are as electrical heating elements in high-temperature furnaces in the heat treating, ceramics, glass, steel, and electronics industries.
Chemical Content, %
| Alloy material | Chemical composition % | |||||||||
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | others | |
| max(≤) | ||||||||||
| 1Cr13Al4 | 0.12 | 0.025 | 0.025 | 0.7 | ≤1.00 | 12.5-15.0 | — | 3.5-4.5 | Rest | — |
| 0Cr15Al5 | 0.12 | 0.025 | 0.025 | 0.7 | ≤1.00 | 14.5-15.5 | — | 4.5-5.3 | Rest | — |
| 0Cr25Al5 | 0.06 | 0.025 | 0.025 | 0.7 | ≤0.60 | 23.0-26.0 | ≤0.60 | 4.5-6.5 | Rest | — |
| 0Cr23Al5 | 0.06 | 0.025 | 0.025 | 0.7 | ≤0.60 | 20.5-23.5 | ≤0.60 | 4.2-5.3 | Rest | — |
| 0Cr21Al6 | 0.06 | 0.025 | 0.025 | 0.7 | ≤1.00 | 19.0-22.0 | ≤0.60 | 5.0-7.0 | Rest | — |
| 0Cr19Al3 | 0.06 | 0.025 | 0.025 | 0.7 | ≤1.00 | 18.0-21.0 | ≤0.60 | 3.0-4.2 | Rest | — |
| 0Cr21Al6Nb | 0.05 | 0.025 | 0.025 | 0.7 | ≤0.60 | 21.0-23.0 | ≤0.60 | 5.0-7.0 | Rest | Nb add0.5 |
| 0Cr27Al7Mo2 | 0.05 | 0.025 | 0.025 | 0.2 | ≤0.40 | 26.5-27.8 | ≤0.60 | 6.0-7.0 | Rest | |
Feature:
With long service life.Heating up fast.High thermal efficiency.Temperature uniformity. Can use vertically. When being used in the rated voltage,there is no volatile matter.It is an environmental protection electric heating wire. And an alternative to the costly nichrome wire.Can be customized according to customer requirements
FeCrAl alloys are characterized by excellent oxidation resistance and very good form stability resulting in long element life.
They are typically used in electrical heating elements in industrial furnaces and home appliances.
Fe-Cr-Al alloy with high resistivity and serviceability temperature than that for NiCr alloy and also has lower price.
Main technical characteristics of FeCrAl Alloy:
|
Brand Property |
1Cr13Al4 | 1Cr21Al4 | 0Cr21Al6 | 0Cr23Al5 | 0Cr25Al5 | 0Cr21Al6Nb | 0Cr27Al7Mo2 | |
| Major chemical component% | Cr | 12.0-12.5 | 17.0-21.0 | 19.0-22.0 | 20.5-23.5 | 23.0-26.0 | 21.0-23.0 | 26.5-27.8 |
| Al | 4.0-6.0 | 2.0-4.0 | 5.0-7.0 | 4.2-5.3 | 4.5-6.5 | 5.0-7.0 | 6.0-7.0 | |
| Fe | Balance | Balance | Balance | Balance | Balance | Balance | Balance | |
| Re | Appropriate | Appropriate | Appropriate | Appropriate | Appropriate | Appropriate | Appropriate | |
| Addition Nb:0.5 |
Addition Mo:1.8-2.2 |
|||||||
| Component max. use temperature | 950 | 1100 | 1250 | 1250 | 1250 | 1350 | 1400 | |
| Melting Point | 1450 | 1500 | 1500 | 1500 | 1500 | 1510 | 1510 | |
| Density g/cm3 | 7.40 | 7.35 | 7.16 | 7.25 | 7.10 | 7.10 | 7.10 | |
| Resistivity μΩ·m,20 | 1.25±0.08 | 1.23±0.06 | 1.42±0.07 | 1.35±0.06 | 1.45±0.07 | 1.45±0.07 | 1.53±0.07 | |
| Tensile Strength Mpa | 588-735 | 637-784 | 637-784 | 637-784 | 637-784 | 637-784 | 684-784 | |
| Extension rate% | 16 | 12 | 12 | 12 | 12 | 10 | ||
| Repeated bending frequency | 5 | 5 | 5 | 5 | 5 | |||
| Fast lift h/ | - | 80/1300 | 80/1300 | 50/1350 | ||||
| Specific Heat J/g. | 0.490 | 0.490 | 0.520 | 0.460 | 0.494 | 0.494 | 0.494 | |
| Heat Conduction Coefficient KJ/M.h | 52.7 | 46.9 | 63.2 | 60.1 | 46.1 | 46.1 | 45.2 | |
|
Linear expansion coefficient aX10-6/ (20-1000) |
15.4 | 13.5 | 14.7 | 15.0 | 16.0 | 16.0 | 16.0 | |
| Hardness HB | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | |
| Microstructure | Ferritic | Ferritic | Ferritic | Ferritic | Ferritic | Ferritic | Ferritic | |
| Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | |
Applications
0Cr21Al6 Iron-chrome-aluminium electric resistor strip is widely used for making electric heating elements in home appliances and industrial furnaces. Typical applications are flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements
application area
Our products are widely used in heat treatment equipment, auto parts, iron and steel manufacturing,
aluminum industry, metallurgical equipment, petrochemical equipment, glass machinery, ceramic machinery,
food machinery, pharmaceutical machinery, and power engineering industry.
RFQ
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, we can produce 10KG,
2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
