Product Details
Place of Origin: Shanghia, China
Brand Name: TANKII
Certification: SGS
Model Number: 0Cr19Al3
Payment & Shipping Terms
Minimum Order Quantity: 100KG
Price: negotiable
Packaging Details: Wooden case
Delivery Time: 7-15 work days
Payment Terms: L/C, T/T, Western Union, paypal
Supply Ability: 300 Tons per month
Material: |
Cr:19% Al:3% |
Resistivity: |
1.23 |
Density: |
7.35 G/m3 |
Shape: |
Wire / Strip / Ribbon / Flat Wire |
Surface: |
Bright / Oxidation |
Width: |
1000mm MAX |
Thickness: |
0.02mm-6.0mm |
Diameter: |
0.05-10mm |
Material: |
Cr:19% Al:3% |
Resistivity: |
1.23 |
Density: |
7.35 G/m3 |
Shape: |
Wire / Strip / Ribbon / Flat Wire |
Surface: |
Bright / Oxidation |
Width: |
1000mm MAX |
Thickness: |
0.02mm-6.0mm |
Diameter: |
0.05-10mm |

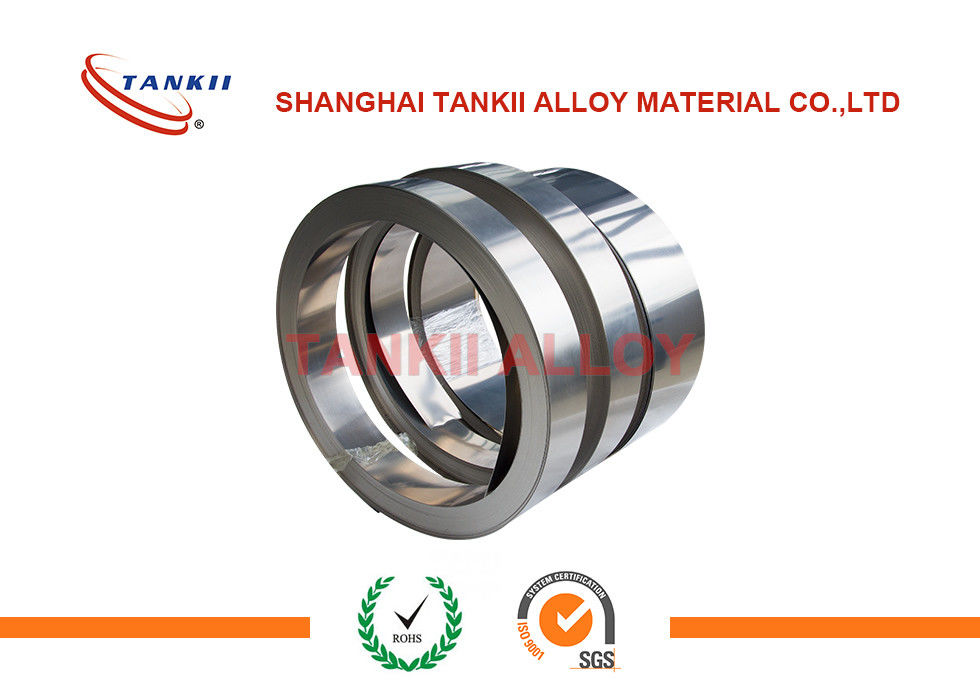

fecral Iron Chrome Aluminum resistance heating strip 1cr13al4, 0cr19al3,0cr21al4,0cr25al5, 0cr20al6Re, 0cr21al6nb,
Chemical Content, %
| Alloy material | Chemical composition % | |||||||||
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | others | |
| max(≤) | ||||||||||
| 1Cr13Al4 | 0.12 | 0.025 | 0.025 | 0.7 | ≤1.00 | 12.5-15.0 | — | 3.5-4.5 | Rest | — |
| 0Cr15Al5 | 0.12 | 0.025 | 0.025 | 0.7 | ≤1.00 | 14.5-15.5 | — | 4.5-5.3 | Rest | — |
| 0Cr25Al5 | 0.06 | 0.025 | 0.025 | 0.7 | ≤0.60 | 23.0-26.0 | ≤0.60 | 4.5-6.5 | Rest | — |
| 0Cr23Al5 | 0.06 | 0.025 | 0.025 | 0.7 | ≤0.60 | 20.5-23.5 | ≤0.60 | 4.2-5.3 | Rest | — |
| 0Cr21Al6 | 0.06 | 0.025 | 0.025 | 0.7 | ≤1.00 | 19.0-22.0 | ≤0.60 | 5.0-7.0 | Rest | — |
| 0Cr19Al3 | 0.06 | 0.025 | 0.025 | 0.7 | ≤1.00 | 18.0-21.0 | ≤0.60 | 3.0-4.2 | Rest | — |
| 0Cr21Al6Nb | 0.05 | 0.025 | 0.025 | 0.7 | ≤0.60 | 21.0-23.0 | ≤0.60 | 5.0-7.0 | Rest | Nb add0.5 |
| 0Cr27Al7Mo2 | 0.05 | 0.025 | 0.025 | 0.2 | ≤0.40 | 26.5-27.8 | ≤0.60 | 6.0-7.0 | Rest | |
Feature:
With long service life.Heating up fast.High thermal efficiency.Temperature uniformity. Can use vertically. When being used in the rated voltage,there is no volatile matter.It is an environmental protection electric heating wire. And an alternative to the costly nichrome wire.Can be customized according to customer requirements
FeCrAl alloys are characterized by excellent oxidation resistance and very good form stability resulting in long element life.
They are typically used in electrical heating elements in industrial furnaces and home appliances.
Fe-Cr-Al alloy with high resistivity and serviceability temperature than that for NiCr alloy and also has lower price.
Main technical characteristics of FeCrAl Alloy:
|
Brand Property |
1Cr13Al4 | 1Cr21Al4 | 0Cr21Al6 | 0Cr23Al5 | 0Cr25Al5 | 0Cr21Al6Nb | 0Cr27Al7Mo2 | |
| Major chemical component% | Cr | 12.0-12.5 | 17.0-21.0 | 19.0-22.0 | 20.5-23.5 | 23.0-26.0 | 21.0-23.0 | 26.5-27.8 |
| Al | 4.0-6.0 | 2.0-4.0 | 5.0-7.0 | 4.2-5.3 | 4.5-6.5 | 5.0-7.0 | 6.0-7.0 | |
| Fe | Balance | Balance | Balance | Balance | Balance | Balance | Balance | |
| Re | Appropriate | Appropriate | Appropriate | Appropriate | Appropriate | Appropriate | Appropriate | |
| Addition Nb:0.5 |
Addition Mo:1.8-2.2 |
|||||||
| Component max. use temperature | 950 | 1100 | 1250 | 1250 | 1250 | 1350 | 1400 | |
| Melting Point | 1450 | 1500 | 1500 | 1500 | 1500 | 1510 | 1510 | |
| Density g/cm3 | 7.40 | 7.35 | 7.16 | 7.25 | 7.10 | 7.10 | 7.10 | |
| Resistivity μΩ·m,20 | 1.25±0.08 | 1.23±0.06 | 1.42±0.07 | 1.35±0.06 | 1.45±0.07 | 1.45±0.07 | 1.53±0.07 | |
| Tensile Strength Mpa | 588-735 | 637-784 | 637-784 | 637-784 | 637-784 | 637-784 | 684-784 | |
| Extension rate% | 16 | 12 | 12 | 12 | 12 | 10 | ||
| Repeated bending frequency | 5 | 5 | 5 | 5 | 5 | |||
| Fast lift h/ | - | 80/1300 | 80/1300 | 50/1350 | ||||
| Specific Heat J/g. | 0.490 | 0.490 | 0.520 | 0.460 | 0.494 | 0.494 | 0.494 | |
| Heat Conduction Coefficient KJ/M.h | 52.7 | 46.9 | 63.2 | 60.1 | 46.1 | 46.1 | 45.2 | |
|
Linear expansion coefficient aX10-6/ (20-1000) |
15.4 | 13.5 | 14.7 | 15.0 | 16.0 | 16.0 | 16.0 | |
| Hardness HB | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | |
| Microstructure | Ferritic | Ferritic | Ferritic | Ferritic | Ferritic | Ferritic | Ferritic | |
| Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | |
| Category | Thickness ( mm ) | Tolerance ( mm) | ||
| Common precision | High precision | |||
| Cold-rolled strip | 0.05 ~ 0.1 | ±0.01 | ±0.005 | |
| 0.1 ~ 0.2 | ±0.015 | ±0.01 | ||
| 0.2 ~ 0.5 | ±0.02 | ±0.015 | ||
| 0.5 ~ 1.0 | ±0.03 | ±0.025 | ||
| 1.0 ~ 1.8 | ±0.04 | ±0.03 | ||
| 1.8 ~ 2.5 | ±0.05 | ±0.04 | ||
| 2.5 ~ 4.0 | ±0.06 | ±0.05 | ||
| Hot-rolled Strip | 2.5 ~ 5.0 | ±0.25 | ±0.2 | |
| 5.0 ~ 7.0 | ±0.3 | ±0.25 | ||
| 7.0 ~ 10.0 | ±0.4 | ±0.35 | ||
| 10.0 ~ 20.0 | ±0.5 | ±0.45 | ||
| The allowable tolerance of alloy strip GB/T1234-2012 | ||||
| Category | Width ( mm ) | Tolerance ( mm ) | ||
| side cut | Nonside cut | |||
| Common precision | High precision | |||
| Cold-rolled Strip | 5.0 ~ 10.0 | ±0.2 | ±0.1 | -0.6 |
| 10.0 ~ 20.0 | -0.8 | |||
| 20.0 ~ 30.0 | -1 | |||
| 30.0 ~ 50.0 | ±0.3 | ±0.15 | -1.2 | |
| 50.0 ~ 100.0 | ±1.0 | |||
| 100.0 ~ 200.0 | ±0.5 | ±0.25 | ±1.5 | |
| 200.0 ~ 300.0 | ±1.8 | |||
| Hot-rolled Strip | 15.0 ~ 60.0 | / | ±1.5 | |
| 60.0 ~ 200.0 | ±2.5 | |||
| 200.0 ~ 300.0 | ±3.0 | |||
Applications
0Cr21Al6 Iron-chrome-aluminium electric resistor strip is widely used for making electric heating elements in home appliances and industrial furnaces. Typical applications are flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements
application area
Our products are widely used in heat treatment equipment, auto parts, iron and steel manufacturing,
aluminum industry, metallurgical equipment, petrochemical equipment, glass machinery, ceramic machinery,
food machinery, pharmaceutical machinery, and power engineering industry.
