Product Details:
|
| Material: | Cr:21% Al:6% | Resistivity: | 1.42 |
|---|---|---|---|
| Density: | 7.16 G/m3 | Shape: | Wire / Strip / Ribbon / Flat Wire |
| Surface: | Bright / Oxidation | Width: | 1000mm MAX |
| Thickness: | 0.02mm-5mm | ||
| High Light: | high temperature wire,electrical heating wire |
||

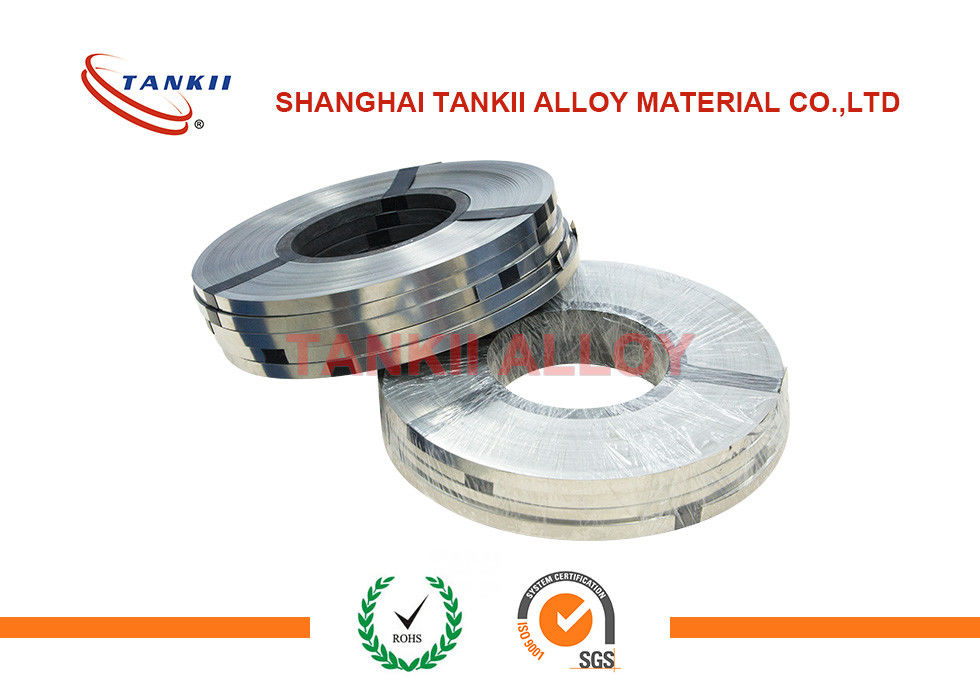

0Cr21Al6 Iron-chrome-aluminium electric resistor strip for industrial furnace
About our company
- Shanghai Tankii Alloy is a professional manufacturer of High Resistance heating alloys for more than 30 years in China. Now we can supply more than 5000 tons for different types of nickel base alloy per year.
- We can supply Ni-Cr, Fe-Cr-Al,Ni-Fe, Supper alloys, welding materials in forms of wire,strip,bar,sheet,pipe etc. with different size,Such as Ni80Cr20,Monel,Inconel,Incoloy,Invar, kanthal,hastelloy,kover and so on.
- We can also customize the goods apply to customer. Now we supply nickel base alloys for companies from USA, Europe, Russia, Ukraine, India, Korea, Iran,UK, etc.
FeCrAl alloys are characterized by excellent oxidation resistance and very good form stability resulting in long element life.
They are typically used in electrical heating elements in industrial furnaces and home appliances.
Fe-Cr-Al alloy with high resistivity and serviceability temperature than that for NiCr alloy and also has lower price.
Forms:wire, bar, strip,sheet / plate,forging,tube/pipe,etc.
Main technical characteristics of FeCrAl Alloy:
|
Brand Property |
1Cr13Al4 | 1Cr21Al4 | 0Cr21Al6 | 0Cr23Al5 | 0Cr25Al5 | 0Cr21Al6Nb | 0Cr27Al7Mo2 | |
| Major chemical component% | Cr | 12.0-12.5 | 17.0-21.0 | 19.0-22.0 | 20.5-23.5 | 23.0-26.0 | 21.0-23.0 | 26.5-27.8 |
| Al | 4.0-6.0 | 2.0-4.0 | 5.0-7.0 | 4.2-5.3 | 4.5-6.5 | 5.0-7.0 | 6.0-7.0 | |
| Fe | Balance | Balance | Balance | Balance | Balance | Balance | Balance | |
| Re | Appropriate | Appropriate | Appropriate | Appropriate | Appropriate | Appropriate | Appropriate | |
| Addition Nb:0.5 |
Addition Mo:1.8-2.2 |
|||||||
| Component max. use temperature | 950 | 1100 | 1250 | 1250 | 1250 | 1350 | 1400 | |
| Melting Point | 1450 | 1500 | 1500 | 1500 | 1500 | 1510 | 1510 | |
| Density g/cm3 | 7.40 | 7.35 | 7.16 | 7.25 | 7.10 | 7.10 | 7.10 | |
| Resistivity μΩ·m,20 | 1.25±0.08 | 1.23±0.06 | 1.42±0.07 | 1.35±0.06 | 1.45±0.07 | 1.45±0.07 | 1.53±0.07 | |
| Tensile Strength Mpa | 588-735 | 637-784 | 637-784 | 637-784 | 637-784 | 637-784 | 684-784 | |
| Extension rate% | 16 | 12 | 12 | 12 | 12 | 10 | ||
| Repeated bending frequency | 5 | 5 | 5 | 5 | 5 | |||
| Fast lift h/ | - | 80/1300 | 80/1300 | 50/1350 | ||||
| Specific Heat J/g. | 0.490 | 0.490 | 0.520 | 0.460 | 0.494 | 0.494 | 0.494 | |
| Heat Conduction Coefficient KJ/M.h | 52.7 | 46.9 | 63.2 | 60.1 | 46.1 | 46.1 | 45.2 | |
|
Linear expansion coefficient aX10-6/ (20-1000) |
15.4 | 13.5 | 14.7 | 15.0 | 16.0 | 16.0 | 16.0 | |
| Hardness HB | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | 200-260 | |
| Microstructure | Ferritic | Ferritic | Ferritic | Ferritic | Ferritic | Ferritic | Ferritic | |
| Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | Magnetic | |
| Category | Thickness ( mm ) | Tolerance ( mm) | ||
| Common precision | High precision | |||
| Cold-rolled strip | 0.05 ~ 0.1 | ±0.01 | ±0.005 | |
| 0.1 ~ 0.2 | ±0.015 | ±0.01 | ||
| 0.2 ~ 0.5 | ±0.02 | ±0.015 | ||
| 0.5 ~ 1.0 | ±0.03 | ±0.025 | ||
| 1.0 ~ 1.8 | ±0.04 | ±0.03 | ||
| 1.8 ~ 2.5 | ±0.05 | ±0.04 | ||
| 2.5 ~ 4.0 | ±0.06 | ±0.05 | ||
| Hot-rolled Strip | 2.5 ~ 5.0 | ±0.25 | ±0.2 | |
| 5.0 ~ 7.0 | ±0.3 | ±0.25 | ||
| 7.0 ~ 10.0 | ±0.4 | ±0.35 | ||
| 10.0 ~ 20.0 | ±0.5 | ±0.45 | ||
| The allowable tolerance of alloy strip GB/T1234-2012 | ||||
| Category | Width ( mm ) | Tolerance ( mm ) | ||
| side cut | Nonside cut | |||
| Common precision | High precision | |||
| Cold-rolled Strip | 5.0 ~ 10.0 | ±0.2 | ±0.1 | -0.6 |
| 10.0 ~ 20.0 | -0.8 | |||
| 20.0 ~ 30.0 | -1 | |||
| 30.0 ~ 50.0 | ±0.3 | ±0.15 | -1.2 | |
| 50.0 ~ 100.0 | ±1.0 | |||
| 100.0 ~ 200.0 | ±0.5 | ±0.25 | ±1.5 | |
| 200.0 ~ 300.0 | ±1.8 | |||
| Hot-rolled Strip | 15.0 ~ 60.0 | / | ±1.5 | |
| 60.0 ~ 200.0 | ±2.5 | |||
| 200.0 ~ 300.0 | ±3.0 | |||
Applications
0Cr21Al6 Iron-chrome-aluminium electric resistor strip is widely used for making electric heating elements in home appliances and industrial furnaces. Typical applications are flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements
application area
Our products are widely used in heat treatment equipment, auto parts, iron and steel manufacturing,
aluminum industry, metallurgical equipment, petrochemical equipment, glass machinery, ceramic machinery,
food machinery, pharmaceutical machinery, and power engineering industry.
