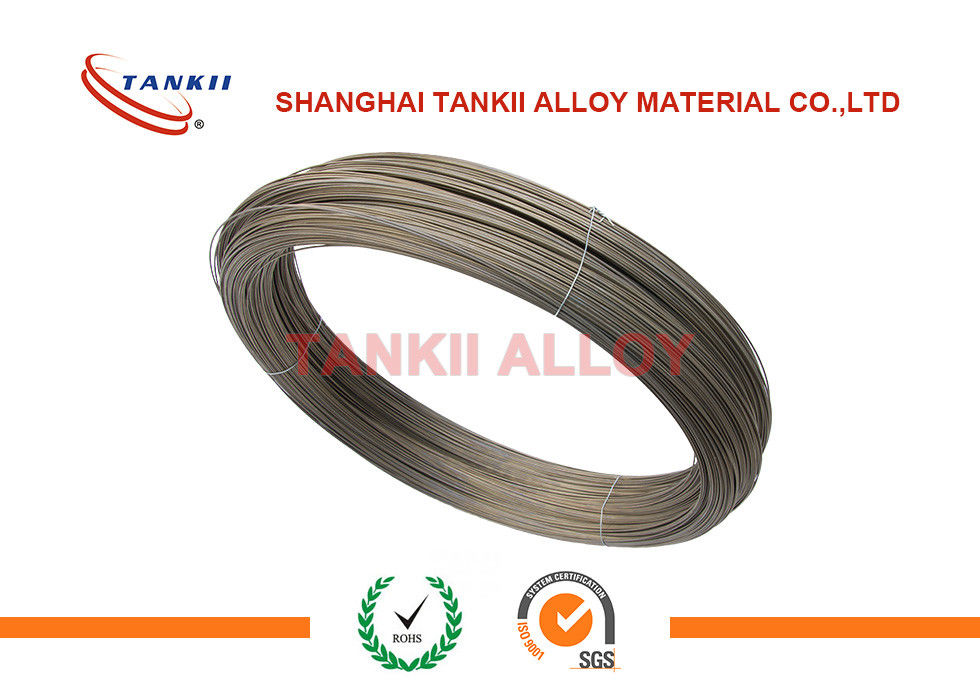

Golden Surface TKA1(Cr24Al6) dia. 2.0mm, 2.5mm, 3.0mm, 4.0 mm high temperature heating resistance wire
TKA1 large-sized cold-drawn wire products can be used for high-temperature resistance furnace. Practice has proved that: the product process is stable, integrated performance is good. Has good high temperature oxidation resistance and longer service life; excellent winding properties at room temperature processing, ease of processing molding; little rebound resilience and so on. Processing performance is very good; operating temperature can reach 1400 ℃.
Main specifications and uses:
Conventional Product specifications: 0.5 ~ 10 mm
Uses: mainly used in powder metallurgy furnace, diffusion furnace, radiant tube heater and all kinds of high-temperature furnace heating body.
MAIN CHEMICAL ELEMENTS AND PROPERTIES
|Max Continuous Service Temperature(ºC)||Diameter 1.0-3.0||Diameter large than 3.0,|
|Resisivity 20ºC (ohm*mm2/m)||1.45|
|Approximate Melting Point( ºC)||1500|
|Repeatedly Bend Frequency(F/R) 20℃||7-12|
|Continuous Service Time under 1350 ℃||More than 60 hours|
|The relationship between the maximum operating temperature and the furnace atmosphere|
|Furnace||Dry Air||Humid Air||hydrogen-argon||Argon||Decomposition|
