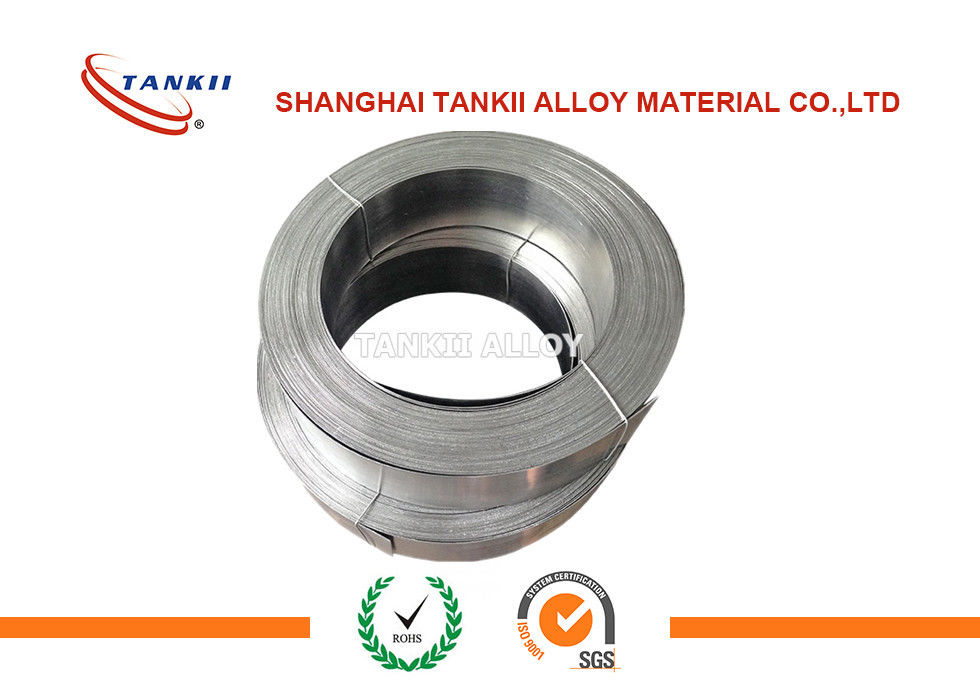

Resistance Electric Heating Strip 1.0 X 400mm 1cr13al4 Alkrothal 720 Fecral

Product Details

Place of Origin: Shanghai China,

Brand Name: TANKII

Certification: SGS

Model Number: 1Cr13Al4

Payment & Shipping Terms

Minimum Order Quantity: 100KGS

Price: Negotiable

Packaging Details: Roll+Wooden case

Delivery Time: 7-12days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 500Ton per month

Get Best Price
Contact Now
Specifications
Highlight:

high temperature wire

,

electrical heating wire

Material:
Ferro Chrome Aluminum Alloy
Application:
Industry And Household Appliances
Shape:
Strip / Ribbon / Flat Strip
Surface:
Bright
Material:
Ferro Chrome Aluminum Alloy
Application:
Industry And Household Appliances
Shape:
Strip / Ribbon / Flat Strip
Surface:
Bright
Description
Resistance Electric Heating Strip 1.0 X 400mm 1cr13al4 Alkrothal 720 Fecral

1.0x400mm 1Cr13Al4 Alkrothal 720 FeCrAl resistance electric heating strip

1.Introduction to products

With the characteristics of high resistance, low coefficient of electric resistance, high operating temperature, good corrosion resistance under high temperature, as well as the lower price, it is widely used in industrial electric furnace, household electrical appliance and far infrared ray device.



2.Marking

Each spool/package of alloy is supplied with a label or tag showing alloy type, nominal size, tare and net weight, resistance W/m (W/ft), charge number and a reference number.



3.size

wires:0.018-10mm Ribbons:0.05*0.2-2.0*6.0mm

Strips:0.5*5.0-5.0*1000mm Bars:D10-100mm



4.Application

Our Products widely apply to chemical industry, metallurgy mechanism, glass industry, ceramic industry, home appliance area and so on.



5. properties

Grade: 0Cr21Al6Nb FeCrAl145



Chemical Composition: Cr 21-23% Al 5-7% Nb 0.5% Fe Rest



Max. continuous service temp. of element(°C) :1350degrees



Resistivity at 20ºC(μΩ·m):1.45 ohm mm2/m



FeCrAl series: 1Cr13Al4, 0Cr19Al3, 0Cr21Al4, 0Cr21Al6, 0Cr23Al5, 0Cr25Al5, 0Cr21Al6Nb, 0Cr27Al7Mo2

Alloy Nomenclature Performance 1Cr13Al4 0Cr25Al5 0Cr21Al6 0Cr23Al5 0Cr21Al4 0Cr21Al6Nb 0Cr27Al7Mo2
Main Chemical composition Cr 12.0-15.0 23.0-26.0 19.0-22.0 20.5-23.5 18.0-21.0 21.0-23.0 26.5-27.8
Al 4.0-6.0 4.5-6.5 5.0-7.0 4.2-5.3 3.0-4.2 5.0-7.0 6.0-7.0
Re opportune opportune opportune opportune opportune opportune opportune
Fe Rest Rest Rest Rest Rest Rest Rest
            Nb0.5 Mo1.8-2.2
Max. continuous service temp. of element(°C) 950 1250 1250 1250 1100 1350 1400
Resistivity at 20ºC(μΩ·m) 1.25 1.42 1.42 1.35 1.23 1.45 1.53
Density(g/cm3) 7.4 7.1 7.16 7.25 7.35 7.1 7.1
Thermal conductivity(KJ/m·h·ºC) 52.7 46.1 63.2 60.2 46.9 46.1
Coefficient of lines expansion(α×10-6/ºC) 15.4 16 14.7 15 13.5 16 16
Melting point approx.( ºC) 1450 1500 1500 1500 1500 1510 1520
Tensile strength(N/mm2) 580-680 630-780 630-780 630-780 600-700 650-800 680-830
Elongation at rupture(%) >16 >12 >12 >12 >12 >12 >10
Variation of area(%) 65-75 60-75 65-75 65-75 65-75 65-75 65-75
Repeat Bending frequency(F/R) >5 >5 >5 >5 >5 >5 >5
Hardness(H.B.) 200-260 200-260 200-260 200-260 200-260 200-260 200-260
continuous servicetime(Hours/ ºC) -- ≥80/1300 ≥80/1300 ≥80/1300 ≥80/1250 ≥50/1350 ≥50/1350
Micrographic structure Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite Ferrite
