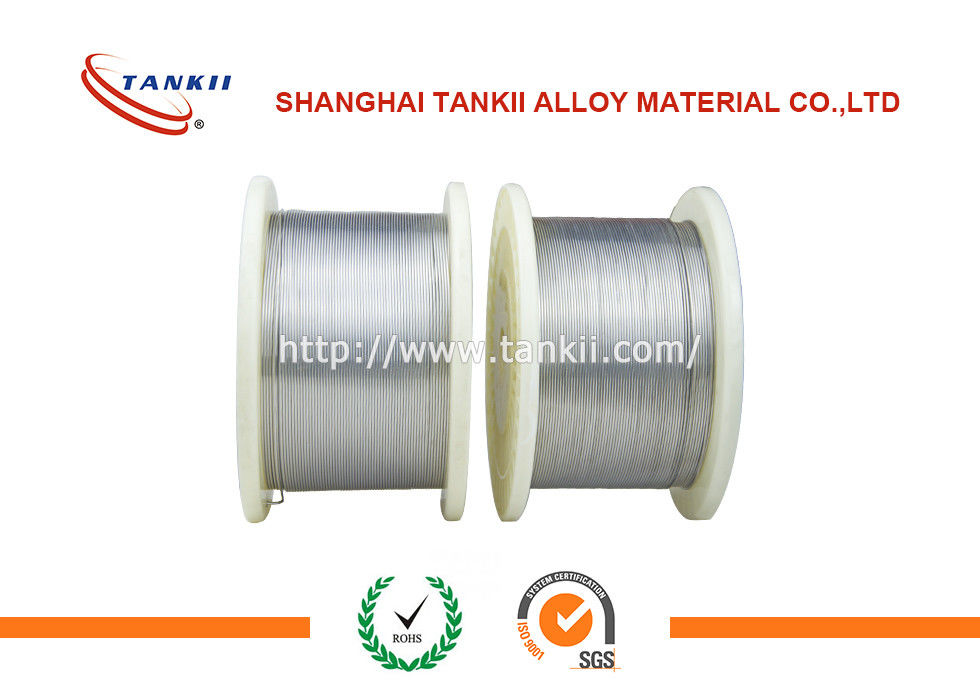

0.54mm Pure Nickel Manganese Alloys Stranded Wire Din200 Spool Nimn2 Nimn3 Nimn5

Product Details

Place of Origin: Shanghai china,

Brand Name: TANKII

Certification: SGS

Model Number: Nimn5 NiMn3 NiMn2

Payment & Shipping Terms

Minimum Order Quantity: 10KG

Price: negotiable

Packaging Details: Spool+Wooden case

Delivery Time: 7-0days,

Payment Terms: L/C, T/T, Western Union, paypal

Supply Ability: 150Tons per month

Get Best Price
Contact Now
Specifications
Highlight:

nickel alloys

,

nichrome wire

Material:
Ni95%,Mn5%
Sample:
Free
Size:
0.01-6.0mm
Surface:
Smooth
State:
Soft, 1/2H, Hard
Packing:
Spool+wooden Case
Name:
Ni-Mn Alloy Wire
Material:
Ni95%,Mn5%
Sample:
Free
Size:
0.01-6.0mm
Surface:
Smooth
State:
Soft, 1/2H, Hard
Packing:
Spool+wooden Case
Name:
Ni-Mn Alloy Wire
Description
0.54mm Pure Nickel Manganese Alloys Stranded Wire Din200 Spool Nimn2 Nimn3 Nimn5



0.54mm, DIN200 Spool, NiMn2, NiMn3, NiMn5 Pure Nickel Manganese Alloys wire / Stranded wire





Pure NIckel 201


Nickel 201 is a low carbon variety compared with Nickel 200, possessing low annealed hardness and a very low work-hardening rate, desirable for cold forming operations. It is highly resistant to corrosion by neutral and alkaline salt solutions, fluorine and chlorine, but in oxidising salt solutions severe attack will occur.

The applications of pure nickel includes food and synthetic fiber processing equipment, electronic parts, aerospace and missile components, handling of sodium hydroxide above 300℃.



Chemical Composition

Alloy Ni% Mn% Fe% Si% Cu% C% S%
Nickel 201 Min 99 Max 0.35 Max 0.4 Max 0.35 Max 0.25 Max 0.02 Max 0.01



Physical Data

Density 8.9g/cm3
Specific Heat 0.109(456 J/kg.℃)
Electrical Resistivity 0.085×10-6ohm.m
Melting Point 1435-1445℃
Thermal Conductivity 79.3 W/m-K
Mean Coeff Thermal Expansion 13.1×10-6m/m.℃



Description

Manganese compounds have been used by man for thousands of years. The ancient Egyptians and Romans used manganese compounds for dyeing in glass manufacture. In 1774 Johann Gottlieb Gahn succeeded in extracting pure manganese from brownstone. In the structure of the earth's crust manganese is the second most common heavy metal after iron.

Important manganese ore deposits are to be found in South Africa, Australia, India, China, Mexico, Ukraine and Russia amongst others.

"Manganese nodules" can also be found in the deep sea.



Main Composition

  Code No. Main Composition %
Ni Mn Si
NiMn2 Bal. 1.5-2.5 0.3
NiMn3 Bal. 2.3-3.3 0.3
NiMn5 Bal. 4.6-5.4 0.5





Manganese is a grey-white, hard heavy metal. In the air it remains stable by the formation of an oxide film.



Properties

Code No. Dia. mm TS. N/mm2 Elongation %
NiMn2 ≤6.0 ≥350 ≥20
NiMn3 ≤6.0 ≥350 ≥20
NiMn5 ≤6.0 ≥350 ≥20





Application

Due to its high affinity to sulphur and oxygen it is a vital element for the metal industry.

About 90 to 95% of the produced amount, preferably ferromanganese is used in the iron and steel industry

1. for deoxidizing and desulphuring iron and steel

2. as nickel substitute in corrosion-proof stainless steels

3. as strength-increasing alloy element for steels



Products and services
1). Fine after-sale services;
2). Small order accepted;
3). Fast delivery;
