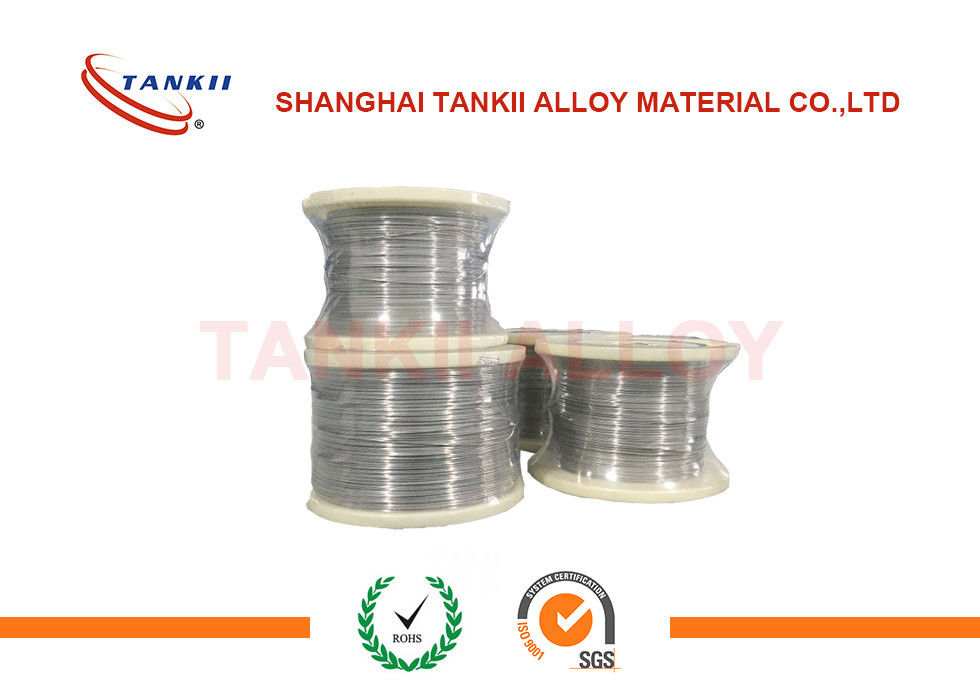

0.25mm 0.38mm Din200 Spool Pure Nickel Manganese Alloys Wire Ni201 Ni200 Nimn3

Name: 0.25mm 0.38mm Din200 Spool Pure Nickel Manganese Alloys Wire Ni201 Ni200 Nimn3
Brand: TANKII
SKU: Nimn3,NI200,Ni201
Rating: 4.5 (113 reviews)

Product Details

Place of Origin: Shanghai china,

Brand Name: TANKII

Certification: SGS

Model Number: Nimn3,NI200,Ni201

Payment & Shipping Terms

Minimum Order Quantity: 10KG

Price: negotiable

Packaging Details: Spool+Wooden case

Delivery Time: 7-0days,

Payment Terms: L/C, T/T, Western Union, paypal

Supply Ability: 150Tons per month

Get Best Price

Contact Now

Specifications

Description

Specifications

Highlight:
                                                                                                                                                                                                                                                                                                                                                                                                                                    nickel alloys, nichrome resistance wire


Material:	Ni97%,Mn3%	Sample:	Free
Diameter:	0.01-6.0mm	Surface:	Bright
State:	Soft, 1/2H, Hard	Packing:	Spool+Box

Material:	Ni97%,Mn3%
Sample:	Free
Diameter:	0.01-6.0mm
Surface:	Bright
State:	Soft, 1/2H, Hard
Packing:	Spool+Box

Description

0.25mm 0.38mm Din200 Spool Pure Nickel Manganese Alloys Wire Ni201 Ni200 Nimn3

0.25mm, 0.38mm, DIN200 Spool, Nickel Manganese Alloys wire NiMn3 / Pure NIckel Ni201,Ni200

1.Description

Manganese compounds have been used by man for thousands of years. The ancient Egyptians and Romans used manganese compounds for dyeing in glass manufacture. In 1774 Johann Gottlieb Gahn succeeded in extracting pure manganese from brownstone. In the structure of the earth's crust manganese is the second most common heavy metal after iron.

Important manganese ore deposits are to be found in South Africa, Australia, India, China, Mexico, Ukraine and Russia amongst others.

"Manganese nodules" can also be found in the deep sea.

2.Properties

Code No.	Main Composition %
Code No.	Ni	Mn	Si
NiMn2	Bal.	1.5-2.5	0.3
NiMn3	Bal.	2.3-3.3	0.3
NiMn5	Bal.	4.6-5.4	0.5

Manganese is a grey-white, hard heavy metal. In the air it remains stable by the formation of an oxide film.

Code No.	Dia. mm	TS. N/mm2	Elongation %
NiMn2	≤6.0	≥350	≥20
NiMn3	≤6.0	≥350	≥20
NiMn5	≤6.0	≥350	≥20

3. Specification

diameter:0.01mm-6.0mm

4.Application

Due to its high affinity to sulphur and oxygen it is a vital element for the metal industry.

About 90 to 95% of the produced amount, preferably ferromanganese is used in the iron and steel industry

for deoxidizing and desulphuring iron and steel
as nickel substitute in corrosion-proof stainless steels
as strength-increasing alloy element for steels

5. Products and services
1). Fine after-sale services;
2). Small order accepted;
3). Fast delivery;

Pure NIckel 201

Nickel 201 is a low carbon variety compared with Nickel 200, possessing low annealed hardness and a very low work-hardening rate, desirable for cold forming operations. It is highly resistant to corrosion by neutral and alkaline salt solutions, fluorine and chlorine, but in oxidising salt solutions severe attack will occur.

The applications of pure nickel includes food and synthetic fiber processing equipment, electronic parts, aerospace and missile components, handling of sodium hydroxide above 300℃.

Chemical Composition

Alloy	Ni%	Mn%	Fe%	Si%	Cu%	C%	S%
Nickel 201	Min 99	Max 0.35	Max 0.4	Max 0.35	Max 0.25	Max 0.02	Max 0.01

Physical Data

Density	8.9g/cm3
Specific Heat	0.109(456 J/kg.℃)
Electrical Resistivity	0.085×10-6ohm.m
Melting Point	1435-1445℃
Thermal Conductivity	79.3 W/m-K
Mean Coeff Thermal Expansion	13.1×10-6m/m.℃
