Electric Heating Ni80Cr20 Nichrome Strip Sealing Wire Nicr Alloy

Product Details

Place of Origin: Shanghai

Brand Name: Tankii

Certification: Rohs, SGS

Model Number: Ni80Cr20

Payment & Shipping Terms

Minimum Order Quantity: 50kg

Price: Negotiable

Packaging Details: Wooden case, pallet

Delivery Time: 7~30 working days

Payment Terms: L/C, T/T, Western Union, Paypal

Supply Ability: 3000T/Year

Get Best Price
Contact Now
Specifications
Highlight:

nickel alloys

,

nichrome wire

Features:
High Resistivity
Material:
NiCr
Package:
Wooden Case
Specification:
Negotiable
Use:
Resistance Materials
Resistivity At 20oC (μΩ·m):
1.09
Density (g/cm3):
8.4
Melting Point (approx.)(℃):
1400
Thermal Conductivity(KJ/m·h·oC):
60.3
Coefficient Of Lines Expansion (α×10-6/oC):
18.0
Elongation At Rupture (%):
>20
Features:
High Resistivity
Material:
NiCr
Package:
Wooden Case
Specification:
Negotiable
Use:
Resistance Materials
Resistivity At 20oC (μΩ·m):
1.09
Density (g/cm3):
8.4
Melting Point (approx.)(℃):
1400
Thermal Conductivity(KJ/m·h·oC):
60.3
Coefficient Of Lines Expansion (α×10-6/oC):
18.0
Elongation At Rupture (%):
>20
Description
Electric Heating Ni80Cr20 Nichrome Strip Sealing Wire Nicr Alloy

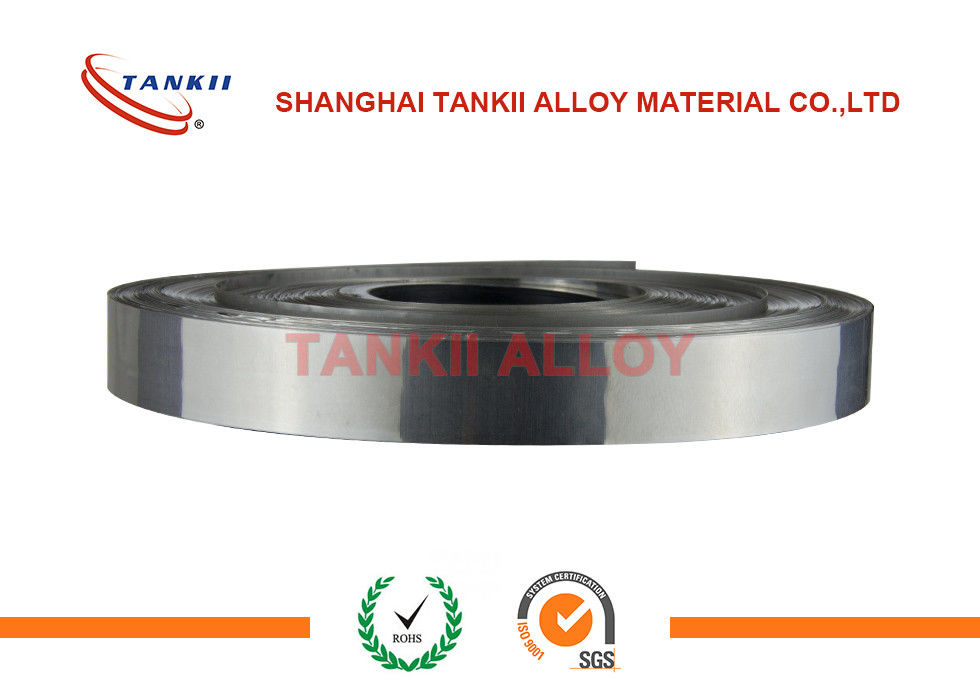

Ni80Cr20 nichrome strip sealing wire for using with vacuum sealing machine

Nickel Chromium Alloy Introduction:
Nickel Chromium alloy has high resistivity, good anti-oxidation properties, high temperature strength, very good form stability and weld ability. It is widely used in electrical heating element material, resistor, industrial furnaces, etc.

Detailed Description:
Grade: NiCr 80/20 is also called Chromel A, Nikrothal 80, N8, Nichrome V, HAI-NiCr 80, Tophet A, Resistohm 80, Cronix 80, Protoloy, Nikrothal 8, Alloy A, MWS-650, Stablohm 650, NCHW1

We also produce other kind of nichrome resistance wire, such as NiCr 70/30,NiCr 60/15,NiCr 60/23,NiCr 37/18, NiCr 35/20, NiCr 35/20, NiCr 25/20,Karma

Nickel chrome Ni80Cr20 Electrical resistivity of alloy main technical performance



brand Cr Ni Al Fe C P S Mn Si
Ni80Cr20 20.0~23.0 Remain ≤0.5 ≤1 0.08 0.02 0.15 0.60 0.75~1.6





Use Time Test



brand Test temperature/ºC time/h
Ni80Cr20 1200 80





Electric Heating Ni80Cr20 Nichrome Strip Sealing Wire Nicr Alloy 0
