Product Details
Place of Origin: Shanghai China
Brand Name: TANKII
Certification: SGS
Model Number: Ni Cr Alloy Strip
Payment & Shipping Terms
Minimum Order Quantity: 30Kg
Price: USD 20-35 KG
Packaging Details: Wooden case
Delivery Time: 7-12 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300Tons per month
Color: |
Silver Gray |
Temper: |
Soft,hard Etc. |
HS Code: |
7506200000 |
Size: |
72x0.5mm |
Serve: |
Small Order Accepted |
Purity: |
76%Min |
Standard: |
BG/DIN/ASTM/JIS |
Specification: |
Customers′ Requirement |
Color: |
Silver Gray |
Temper: |
Soft,hard Etc. |
HS Code: |
7506200000 |
Size: |
72x0.5mm |
Serve: |
Small Order Accepted |
Purity: |
76%Min |
Standard: |
BG/DIN/ASTM/JIS |
Specification: |
Customers′ Requirement |

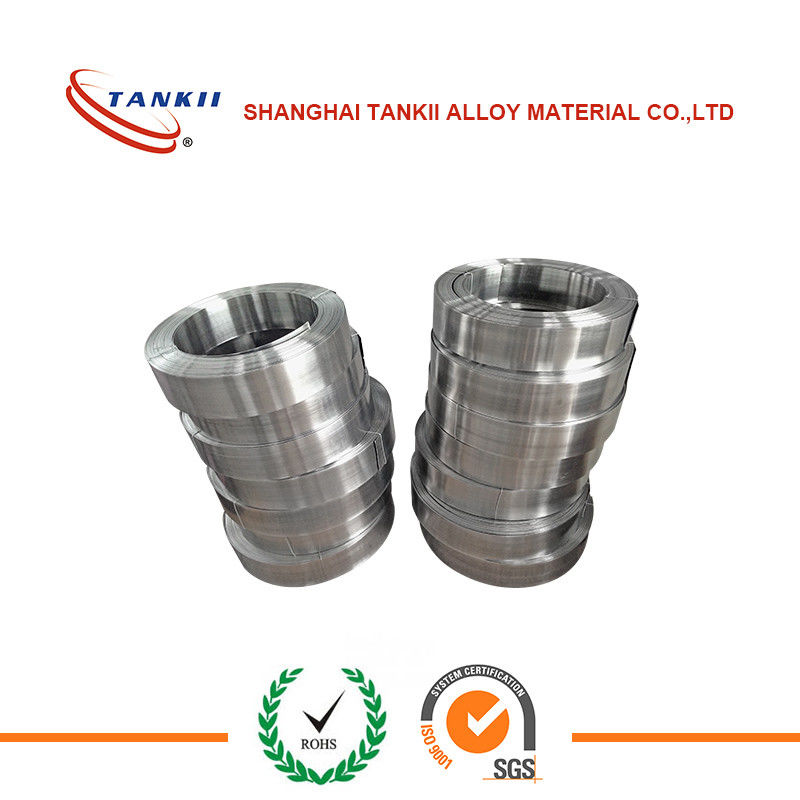

72x0.5mm 140x0.5mm Nichrome Resistance Heating Alloy Ni80cr20 Wire / Strip MWS-650/ 675 /800
Product Description
Grade: Ni80Cr20 ,also called Nikrothal 8,MWS-650,NiCrA,Tophet A,HAI-NiCr 80,Chromel A,Alloy A,N8,Resistohm 80, Stablohm 650,Nichorme V,Nikrothal 80 etc.
Chemical Content(%)
| C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.03 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 20.0~23.0 | Bal. | Max 0.50 | Max 1.0 | - |
Mechanical Properties of nichrome wire
| Max Continuous Service Temperature: | 1200ºC |
| Resisivity 20ºC: | 1.09 ohm mm2/m |
| Density: | 8.4 g/cm3 |
| Thermal Conductivity: | 60.3 KJ/m·h·ºC |
| Coefficient of Thermal Expansion: | 18 α×10-6/ºC |
| Melting Point: | 1400ºC |
| Elongation: | Min 20% |
| Micrographic Structure: | Austenite |
| Magnetic Property: | nonmagnetic |
Temperature Factors Of Electrical Resistivity
| 20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 500ºC | 600ºC |
| 1 | 1.006 | 1.012 | 1.018 | 1.025 | 1.026 | 1.018 |
| 700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1200ºC | 1300ºC |
| 1.01 | 1.008 | 1.01 | 1.014 | 1.021 | 1.025 | - |
Regular size of Nickel alloy wire :
We supply products in the shape of wire,flat wire,strip.We can also make customized material according to useris requests.
Bright and white wire--0.025mm~3mm
Pickling wire:1.8mm~10mm
Oxidized wire:0.6mm~10mm
Flat wire:thickness 0.05mm~1.0mm,width 0.5mm~5.0mm
Process:
Wire:Material preparation→melting→re-melting→forging→hot rolling→heat treatment→surface treatment→drawing(rolling)→finish heat treatment→inspection→package→warehouse
Product features of nichrome wire:
1)Excellent anti-oxidation and mechanical strength at high temperature;
2)High resistivity and low temperature coefficient of resistance;
3)Excellent reelability and forming performance;
4)Excellent welding performace
Application of all grades:
Cr20Ni80:in braking resistors,industrial furnaces,flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.
Cr30Ni70:in industrial furnaces. well suited for reducing atmospheres, as it is not subject to 'green rot'.
Cr15Ni60:in braking resistors,industrial furnaces,hot plates, grills, toaster ovens and storage heaters.
For suspended coils in air heaters in clothes dryers, fan heaters, hand dryers.
Cr20Ni35:in braking resistors,industrial furnaces.In night-storage heaters, convection heaters, heavy
duty rheostats and fan heaters. For heating cables and rope heaters in defrosting and de-icing
elements, electric blankets and pads, car seats, baseboard heaters and floorheater.
Cr20Ni30:in solid hot plates, open coil heaters in HVAC systems, night-storage heaters, convection heaters, heavy duty rheostats and fan heaters.For heating cables and rope heaters in defrosting and
de-icing elements, electric blankets and pads, car seats, baseboard heaters, floor heaters and resistors.
Delivery-When the pre-payment is confirmed:
1)The requested products are in stock,we will send them out within 3 day
2)The raw material is in stock,we will send out the products within 10 days.
3)When we need to re-melt the material,it will take 20-25 days to send the products/
Shipping-By sea,by air,by express or other ways:
| By sea | By air | By express | |
| Japan,Korea,Taiwan | 2-3 days | ||
| Southeast Asia | 7-9 days | 2-3 days | |
| The Middle East | 20-25 days | 3-5 days | 3-5 days |
| India-Pakistan | 15-22 days | 3-5 days | 3-5 days |
| Mediterranean | 28-30 days | 3-5 days | 3-5 days |
| Europe | 28-35 days | 3-5 days | 3-5 days |
| Africa | 40-45 days | about 7 days | about 7 days |
| Australia | 18-32 days | 3-5 days | 3-5 days |
| West of America | 12-15 days | 3-5 days | 3-5 days |
| East of America | 25-35 days | 3-5 days | 3-5 days |
| Middle and South America | 30-55 days | about 7 days | about 7 days |
Our Services
1).Offer OEM service;
2).Test report will be sent accompanying the products;
3).Adding metal elements according to the standard of different countries as per the user's requirements.
