Product Details
Place of Origin: Shanghai China
Brand Name: TANKII
Certification: SGS
Model Number: NiCrA
Payment & Shipping Terms
Minimum Order Quantity: 20Kg
Price: USD 20-35 KG
Packaging Details: Wooden case
Delivery Time: 7-12 work days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300Tons per month
Color: |
Silver Gray |
Temper: |
Soft,1/4hard,1/2hard,hard,T-hard |
HS Code: |
7506200000 |
Packing: |
Waterproof Paper, Weave Bag, Wooden Case |
Size: |
140x0.5mm |
Serve: |
Small Order Accepted |
Purity: |
76%Min |
Origin: |
Shanghai China |
Color: |
Silver Gray |
Temper: |
Soft,1/4hard,1/2hard,hard,T-hard |
HS Code: |
7506200000 |
Packing: |
Waterproof Paper, Weave Bag, Wooden Case |
Size: |
140x0.5mm |
Serve: |
Small Order Accepted |
Purity: |
76%Min |
Origin: |
Shanghai China |

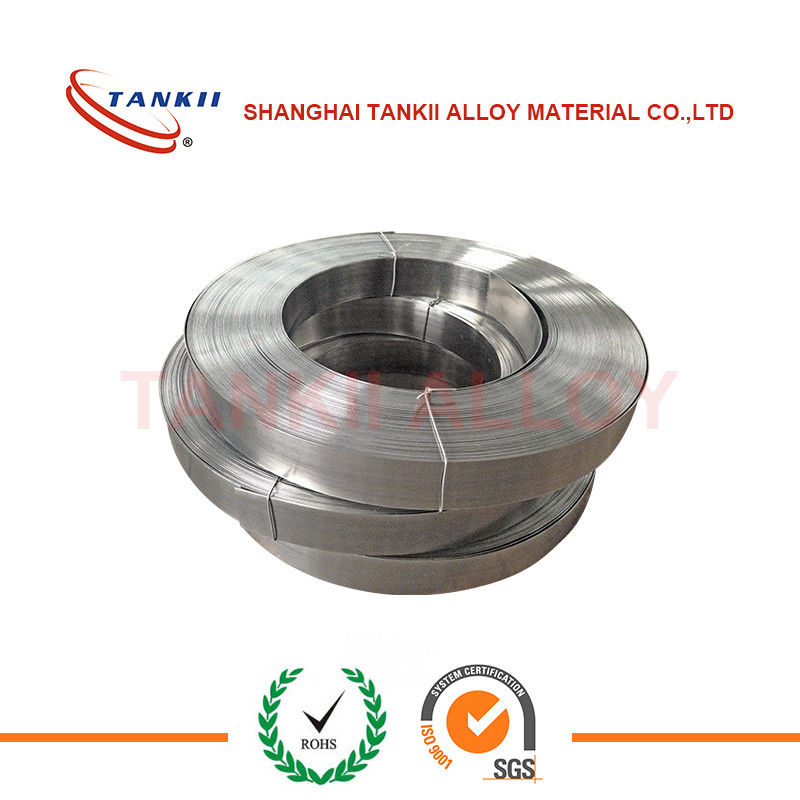

Ni80 NiCrA NiCrAA Industrial Furnace Nichrome 80 20 Heating Strip (2.0mm*20mm)
Ni80Cr20 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life compared to Iron chromium alumium alloys.
Typical applications for Ni80Cr20 are electric heating elements in home appliances,industrial furnaces and resistors(wirewound resistors,metal film resistors), flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.
Normal composition%
C |
P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.03 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 20.0~23.0 | Bal. | Max 0.50 | Max 1.0 | - |
Typical Mechanical properties
Yield strength |
Tensile Strength | Elongation |
| Mpa | Mpa | % |
| 420 | 810 | 30 |
Typical Physical properties
Density (g/cm3) |
8.4 |
| Electrical resistivity at 20ºC(mm2/m) | 1.09 |
| Conductivity coefficient at 20ºC (WmK) | 15 |
| Coefficient of thermal expansion | |
| Temperature | Coefficient of Thermal Expansion x10-6/ºC |
| 20 ºC- 1000ºC | 18 |
| Specific heat capacity | |
| Temperature | 20ºC |
| J/gK | 0.46 |
| Melting point (ºC) | 1400 |
| Max continuous operating temperature in air (ºC) | 1200 |
| Magnetic properties | non-magnetic |
| Temperature Factors Of Electrical Resistivity | |||||
| 20ºC | 100ºC | 200ºC | 300ºC | 400ºC | 600ºC |
| 1 | 1.006 | 1.012 | 1.018 | 1.025 | 1.018 |
| 700ºC | 800ºC | 900ºC | 1000ºC | 1100ºC | 1300ºC |
| 1.01 | 1.008 | 1.01 | 1.014 | 1.021 | - |
Style of supply
| Alloys Name | Type | Dimension | ||
| Ni80Cr20W | Wire | D=0.03mm~8mm | ||
| Ni80Cr20R | Ribbon | W=0.4~40 | T=0.03~2.9mm | |
| Ni80Cr20S | Strip | W=8~250mm | T=0.1~3.0 | |
| Ni80Cr20F | Foil | W=6~120mm | T=0.003~0.1 | |
| Ni80Cr20B | Bar | Dia=8~100mm | L=50~1000 | |
