Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: SGS
Model Number: CuNi44
Payment & Shipping Terms
Minimum Order Quantity: 20KG
Price: USD 15- 25 KG
Packaging Details: Spool+ Box+ Wooden Case
Delivery Time: 7-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300Tons per month
Sample: |
Free |
Purity: |
45%Ni |
Surface: |
Bright |
Standard: |
GB/ASTM |
Size: |
0.03- 1.2*0.5-5.0mm |
Application: |
Heating / Resistance / Resistor |
Resistivity 20C: |
0.49+/-3% |
MOQ: |
20KG |
Sample: |
Free |
Purity: |
45%Ni |
Surface: |
Bright |
Standard: |
GB/ASTM |
Size: |
0.03- 1.2*0.5-5.0mm |
Application: |
Heating / Resistance / Resistor |
Resistivity 20C: |
0.49+/-3% |
MOQ: |
20KG |

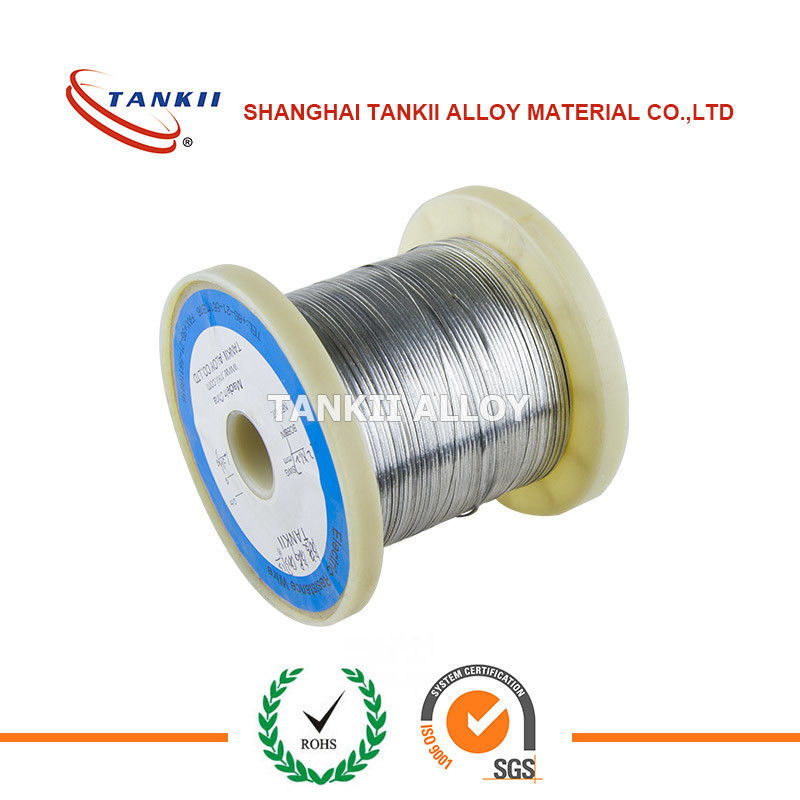

Konstantan Constant CuNi44 CuNi45 Cu56Ni44 CuNi44Mn Constantan Copper nickel alloy resistance flat ribbon wire
1 Introduction
sometimes cupro-nickels, there exists a range of different cooper nickel alloys that possess different properties and hence are suited to a range of different applications.
2 Products and services
1. CE and ROHS cerfication;
2. Small orders are accepted;
3. Factory direct sale;
4. Timely delivery;
5. Samples are available;
3 Features
1. Good resistance to corrosion;
2. Good malleability performance;
3. Good heating resistance;
4. Easy to be processed and lead welded;
5. Constant resistivity over a wide range of temperatures;
6. constantan is characterized by good fatigue life and relatively high elongation capability .
4 Applications
It is suilable for electrical resistors, potentiometers, heating wires, heating cables and underground heating mesh; braiding and shielding in flexible coaxial cable and communication cable, a variety of audio and video cable, vehicle signal cable, network cable, data transmission cables ang so on.
5 Size
Wire: 0.018mm-10mm
Ribbon: 0.05*0.2mm-2.0*6.0mm
Strip: 0.5*5.0mm-5.0*250mm
Bar: 10-100mm
6 When you inquiry, pls specify the details
1. Material and model of wire
2. Diameter, if strip, thickness and width;
3. Quantity;
4. Special requirement if you have.
| Chemical Composition and Main Property of Cu-Ni Low Resistance Alloy | |||||||
| PropertiesGrade | CuNi1 | CuNi2 | CuNi6 | CuNi8 | CuMn3 | CuNi10 | |
| Main Chemical Composition | Ni | 1 | 2 | 6 | 8 | _ | 10 |
| Mn | _ | _ | _ | _ | 3 | _ | |
| Cu | Bal | Bal | Bal | Bal | Bal | Bal | |
| Max Continuous Service Temperature(ºC) | 200 | 200 | 200 | 250 | 200 | 250 | |
| Resisivity at 20ºC (Ω*mm²/m) | 0.03 | 0.05 | 0.1 | 0.12 | 0.12 | 0.15 | |
| Density(g/cm³) | 8.9 | 8.9 | 8.9 | 8.9 | 8.8 | 8.9 | |
| Thermal Conductivity(α×10-6ºC) | <100 | <120 | <60 | <57 | <38 | <50 | |
| Tensile Strength(Mpa) | ≥210 | ≥220 | ≥250 | ≥270 | ≥290 | ≥290 | |
| EMF vs Cu(μVºC)(0~1000ºC) | -8 | -12 | -12 | -22 | _ | -25 | |
| Approximate Melting Point(ºC) | 1085 | 1090 | 1095 | 1097 | 1050 | 1100 | |
| Micrographic Structure | austenite | austenite | austenite | austenite | austenite | austenite | |
| Magnetic Property | non | non | non | non | non | non | |
| PropertiesGrade | CuNi14 | CuNi19 | CuNi23 | CuNi30 | CuNi34 | CuNi44 | |
| Main Chemical Composition | Ni | 14 | 19 | 23 | 30 | 34 | 44 |
| Mn | 0.3 | 0.5 | 0.5 | 1 | 1 | 1 | |
| Cu | Bal | Bal | Bal | Bal | Bal | Bal | |
| Max Continuous Service TemperatureºC) | 300 | 300 | 300 | 350 | 350 | 400 | |
| Resisivity at 20ºC (Ω*mm²/m) | 0.2 | 0.25 | 0.3 | 0.35 | 0.4 | 0.49 | |
| Density(g/cm³) | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | 8.9 | |
| Thermal Conductivity(α×10-6ºC) | <30 | <25 | <16 | <10 | <0 | <-6 | |
| Tensile Strength(Mpa) | ≥310 | ≥340 | ≥350 | ≥400 | ≥400 | ≥420 | |
| EMF vs Cu(μVºC)(0~1000ºC) | -28 | -32 | -34 | -37 | -39 | -43 | |
| Approximate Melting Point(ºC) | 1115 | 1135 | 1150 | 1170 | 1180 | 1280 | |
| Micrographic Structure | austenite | austenite | austenite | austenite | austenite | austenite | |
| Magnetic Property | non | non | non | non | non | non | |
OTHER Chemical Composition And Main Properties
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
