FeCrAl815 FeCrAl750 FeCrAl875 0Cr23Al5 Iron - Chromium - Aluminium Resistance Electric Flat Wire

FeCrAl815 FeCrAl750 FeCrAl875 0Cr23Al5 Iron - Chromium - Aluminium Resistance Electric Flat Wire
FeCrAl815 FeCrAl750 FeCrAl875 0Cr23Al5 Iron - Chromium - Aluminium Resistance Electric Flat Wire FeCrAl815 FeCrAl750 FeCrAl875 0Cr23Al5 Iron - Chromium - Aluminium Resistance Electric Flat Wire FeCrAl815 FeCrAl750 FeCrAl875 0Cr23Al5 Iron - Chromium - Aluminium Resistance Electric Flat Wire FeCrAl815 FeCrAl750 FeCrAl875 0Cr23Al5 Iron - Chromium - Aluminium Resistance Electric Flat Wire

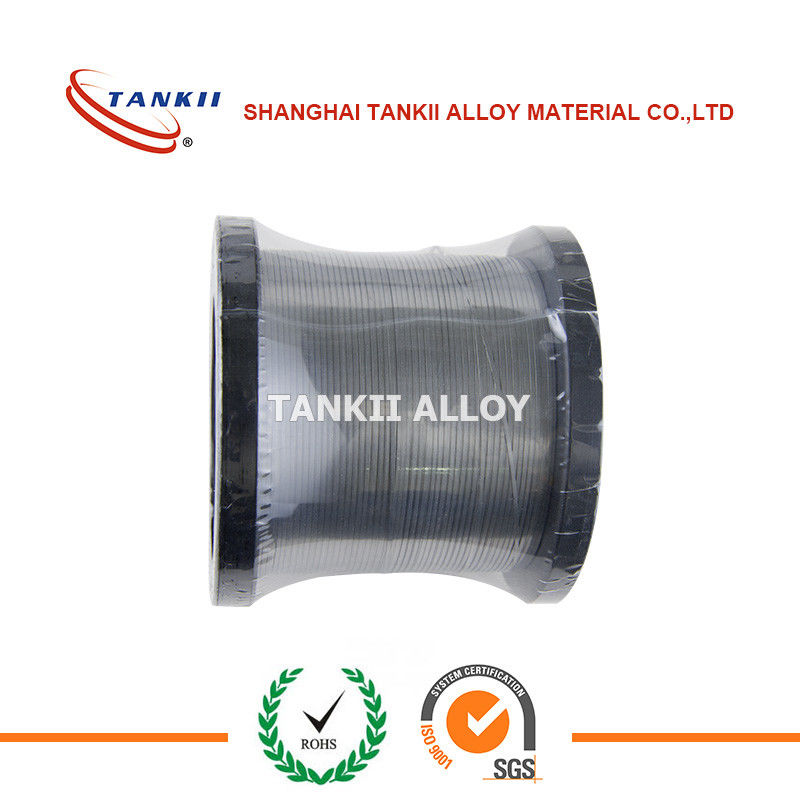

Large Image :  FeCrAl815 FeCrAl750 FeCrAl875 0Cr23Al5 Iron - Chromium - Aluminium Resistance Electric Flat Wire

Product Details:
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: SGS
Model Number: FeCr23Al5
Payment & Shipping Terms:
Minimum Order Quantity: 20KG
Price: USD 3.5- 10 KG
Packaging Details: Spool+ Box+ Wooden Case
Delivery Time: 7-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300Tons per month

FeCrAl815 FeCrAl750 FeCrAl875 0Cr23Al5 Iron - Chromium - Aluminium Resistance Electric Flat Wire

Description
Sample: Free Purity: 23%Cr
Surface: Bright Flat Wire Standard: GB/ASTM
Size: 3x0.3mm Application: Heating / Resistance / Resistor
Resistivity 20C: 1.35+/-3% HS Code: 7223000000
High Light:

fecral wire

,

high temperature wire

3.0x0.3mm, FeCrAl815 FeCrAl750 FeCrAl875 0Cr23Al5 Iron-chromium-aluminium resistance electric flat wire

Chemical Content, %

FeCrAl Alloy Grade

Chemical Composition %















C

P

S

Mn

Si

Cr

Ni

Al

Fe

Re

Others

max(≤)





















1Cr13Al4

0.12

0.025

0.025

0.7

≤1.00

12.5-15.0

----

3.5-4.5

0.1

Bal.

0Cr15Al5

0.12

0.025

0.025

0.7

≤1.00

14.5-15.5

----

4.5-5.3

0.1

Bal.

0Cr25Al5

0.06

0.025

0.025

0.7

≤0.60

23.0-26.0

≤0.60

4.5-6.5

0.1

Bal.

0Cr23Al5

0.06

0.025

0.025

0.7

≤0.60

20.5-23.5

≤0.60

4.2-5.3

0.1

Bal.

0Cr21Al6

0.06

0.025

0.025

0.7

≤1.00

19.0-22.0

≤0.60

5.0-7.0

0.1

Bal.

0Cr21Al4

0.06

0.025

0.025

0.7

≤1.00

21.0-23.0

≤0.60

3.0-5.2

0.1

Bal.

0Cr21Al6Nb

0.05

0.025

0.025

0.7

≤0.60

21.0-23.0

≤0.60

5.0-7.0

0.1

Bal.

0Cr27Al7Mo2

0.05

0.025

0.025

0.7

≤0.40

26.5-27.8

≤0.60

6.0-7.0

0.1

Bal.


Feature:
With long service life.Heating up fast.High thermal efficiency.Temperature uniformity. Can use vertically. When being used in the rated voltage,there is no volatile matter.It i the ne environmental protection electric heating wire.And an alternative to the costly nichrome wire.Can be customized according to customer requirements
Usage:
It is widely used in industrial furnace, household electrical appliances, infrared heater, etc.
Mechanical Properties

Max Continuous Service Temperature:
Resisivity 20℃:
Density:
Thermal Conductivity:
Coefficient of Thermal Expansion:
Melting Point:
Elongation:
Micrographic Structure:
Magnetic Property:

1300℃
1.35+/-0.06ohm mm2/m
7.25g/cm3
60.2 KJ/m·h·℃
15.0×10-6/℃ (20℃~1000℃)
1500℃
Min 12%
Ferrite
magnetic


OTHER Chemical Composition And Main Properties
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
