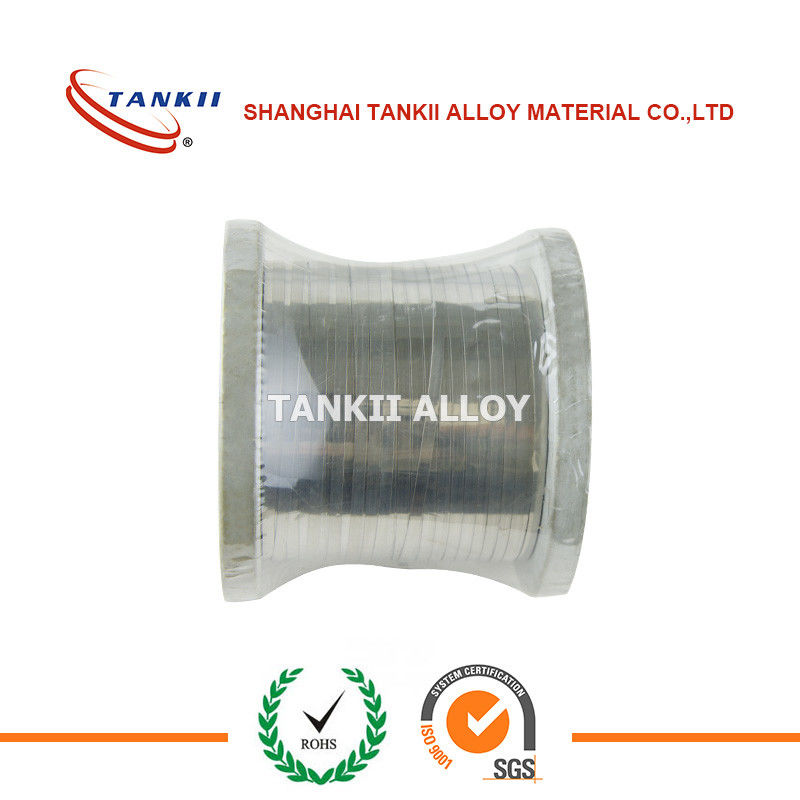

0Cr25Al5 0Cr23Al5 FeCr23Al5 FeCrAl Alloy Flat Electric Heating Ribbon Wire 5.0x0.3mm

Product Details

Place of Origin: Shanghai, China

Brand Name: TANKII

Certification: SGS

Model Number: FeCr23Al5

Payment & Shipping Terms

Minimum Order Quantity: 20KG

Price: USD 3.5- 10 KG

Packaging Details: Spool+ Box+ Wooden Case

Delivery Time: 7-10days

Payment Terms: L/C, T/T, Western Union

Supply Ability: 300Tons per month

Get Best Price
Contact Now
Specifications
Highlight:

fecral wire

,

high temperature wire

Sample:
Free
Purity:
23%Cr 5%Al
Surface:
Bright
Standard:
GB/ASTM
Size:
5.0x0.3mm
Application:
Heating / Resistance / Resistor
Resistivity 20C:
1.35+/-3%
HS Code:
7220900000
Sample:
Free
Purity:
23%Cr 5%Al
Surface:
Bright
Standard:
GB/ASTM
Size:
5.0x0.3mm
Application:
Heating / Resistance / Resistor
Resistivity 20C:
1.35+/-3%
HS Code:
7220900000
Description
0Cr25Al5 0Cr23Al5 FeCr23Al5 FeCrAl Alloy Flat Electric Heating Ribbon Wire 5.0x0.3mm



0Cr25Al5 0Cr23Al5 FeCr23Al5 FeCrAl23/5 Flat electric heating Ribbon wire 5.0x0.3mm



Chemical Content, %

C P S Mn Si Cr Ni Al Fe Other
Max
0.06 0.025 0.020 0.50 ≤0.6 20.5-23.5 ≤0.60 4.2-5.3 Balance -



Feature:
With long service life.Heating up fast.High thermal efficiency.Temperature uniformity. Can use vertically. When being used in the rated voltage,there is no volatile matter.It i the ne environmental protection electric heating wire.And an alternative to the costly nichrome wire.Can be customized according to customer requirements

Usage:
It is widely used in industrial furnace, household electrical appliances, infrared heater, etc.

Mechanical Properties

Max Continuous Service Temperature:

Resisivity 20℃:

Density:

Thermal Conductivity:

Coefficient of Thermal Expansion:

Melting Point:

Elongation:

Micrographic Structure:

Magnetic Property:

1300℃

1.35+/-0.06ohm mm2/m

7.25g/cm3

60.2 KJ/m·h·℃

15.0×10-6/℃ (20℃~1000℃)

1500℃

Min 12%

Ferrite

magnetic



OTHER Chemical Composition And Main Properties
