Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: SGS
Model Number: NiCr 80:20
Payment & Shipping Terms
Minimum Order Quantity: 5KG
Price: USD 18- 30 KG
Packaging Details: Spool+ Box+ Wooden Case
Delivery Time: 7-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300Tons per month
Sample: |
Free |
Purity: |
76%Ni MIn |
Surface: |
Bright |
Standard: |
GB/ASTM |
Size: |
0.08X0.77mm |
Application: |
Heating / Resistance / Resistor |
Resistivity 20C: |
1.09+/-3% |
HS Code: |
7505220 |
Sample: |
Free |
Purity: |
76%Ni MIn |
Surface: |
Bright |
Standard: |
GB/ASTM |
Size: |
0.08X0.77mm |
Application: |
Heating / Resistance / Resistor |
Resistivity 20C: |
1.09+/-3% |
HS Code: |
7505220 |
nickel chromium resistance alloy Ni80Cr20 Ni70Cr30 Ni60Cr15 Ni35Cr20 Ni30Cr20

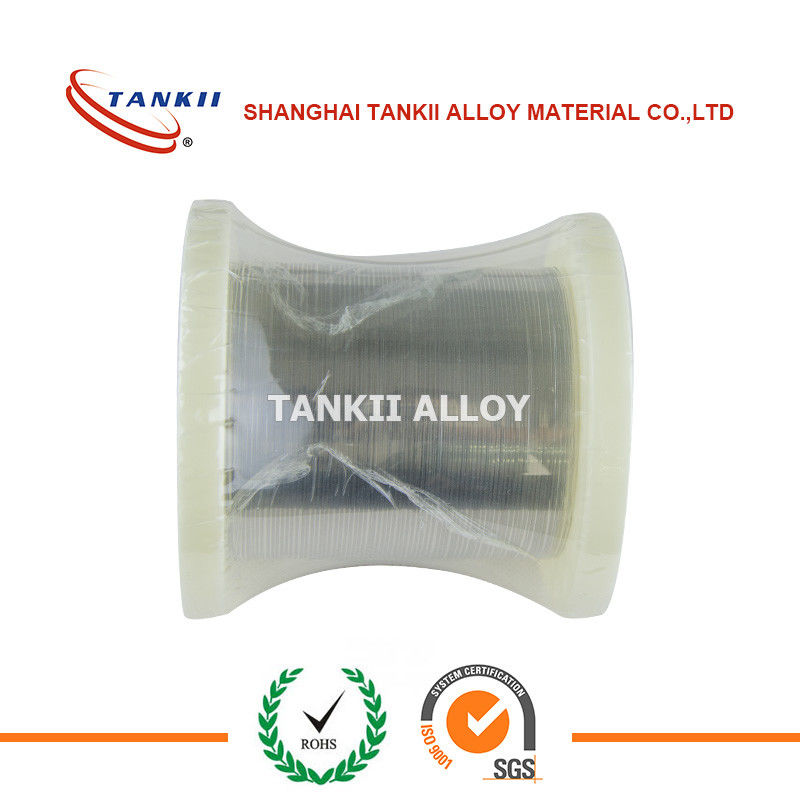

nicr flat wire and strip
NiCr 80/20 :Chromel A, Nikrothal 80, N8, Nichrome V, HAI-NiCr 80, Tophet A, Resistohm
80, Cronix 80, Protoloy, Nikrothal 8, Alloy A, MWS-650, Stablohm 650
1--Product Description
The nichrome resistance wire resistivity is steady, the temperature coefficient is small, the inoxidizability
is good, the service life is long, the reasonable price and so on a series of merits, are the industry
electric stove, the Household,appliances, in the far infrared installment ideal give off heat the material.
2--- Packaging & Shipping
Environmental protection pallets or Environmental protection box or Environmental protection wooden boxes
3--- Our Services:
We are committed to: a timely and detailed reply to the user advice, in the production, transportation, and after-sales service every link to achieve effective control.
chemical composition:
| Brand | Chemical composition | Si | Cr | Ni | Al | Fe | |||
| C | P | S | Mn | ||||||
| Not more than | |||||||||
| Cr20Ni80 | 0.08 | 0.020 | 0.015 | 0.60 | 0.75-1.60 | 20.0-23.0 | remain | ≤0.50 | ≤1.0 |
| Cr15Ni60 | 0.08 | 0.020 | 0.015 | 0.60 | 0.75-1.60 | 15.0-18.0 | 55.0-61.0 | ≤0.50 | remain |
| Cr20Ni35 | 0.08 | 0.020 | 0.015 | 1.00 | 1.00-3.00 | 18.0-21.0 | 34.0-37.0 | - | remain |
| Cr20Ni30 | 0.08 | 0.020 | 0.015 | 1.00 | 1.00-2.00 | 18.0-21.0 | 30.0-34.0 | - | remain |
Ni80Cr20 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life compared to Iron chromium alumium alloys.
Typical applications
Cooking:hot plates,domestic ovens,grills,toaster ovens,frying pans,deep fryers,rice cookers.
Water and beverage:boilers,immersion heaters,water kettles,coffee makers,dish washers,washing machines.
Space heating:radiators,storage heaters.
Others:irons,air heaters,oil heaters,glow plugs,sauna heaters
| Properties/Grade | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| Main Chemical composition | Ni | Rest | Rest | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
| Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
| Fe | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
| Max. continuous service temp. of element | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Resistivity at 20oC (μΩ·m) | 1.09 | 1.18 | 1.12 | 1.04 | 1.04 | |
| Density (g/cm3) | 8.40 | 8.10 | 8.20 | 7.90 | 7.90 | |
| Thermal conductivity(KJ/m·h·oC) | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of lines expansion(α×10-6/oC) | 18.0 | 17.0 | 17.0 | 19.0 | 19.0 | |
| Melting point (approx.)( oC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Elongation at rupture (%) | >20 | >20 | >20 | >20 | >20 | |
| Micrographic structure | austenite | austenite | austenite | austenite | austenite | |
| Magnetic properties | nonmagnetic | nonmagnetic | nonmagnetic | nonmagnetic |
nonmagnetic
|
|
Packaging & Shipping
Packaging: Products are generally supplied in standard cardboard boxes, pallets, wooden boxes.
Special packaging requirements can also be accommodated. (also depend on the customers' requirements) For the Thermal spray wires, we pack the wires on spools. Then put spools into cartons, Then put the cartons onto pallet.
Shipping: We cooperation with many logistics company, We can provide express, sea transportation, air transportation, and rail way transportation based on customers' requirement.
OTHER Chemical Composition And Main Properties
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more
in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day
or holidays.
