Product Details
Place of Origin: Shanghai, China
Brand Name: TANKII
Certification: SGS
Model Number: NiChrome 80
Payment & Shipping Terms
Minimum Order Quantity: 5KG
Price: USD 18- 30 KG
Packaging Details: Spool+ Box+ Wooden Case
Delivery Time: 7-10days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 300Tons per month
Sample: |
Free |
Purity: |
76%-78%Ni |
Surface: |
Bright |
Standard: |
GB/ASTM |
Size: |
0.6x0.2mm 0.5X0.1mm |
Application: |
Resistance / Resistor |
Color: |
Silver Gray |
Sample: |
Free |
Purity: |
76%-78%Ni |
Surface: |
Bright |
Standard: |
GB/ASTM |
Size: |
0.6x0.2mm 0.5X0.1mm |
Application: |
Resistance / Resistor |
Color: |
Silver Gray |

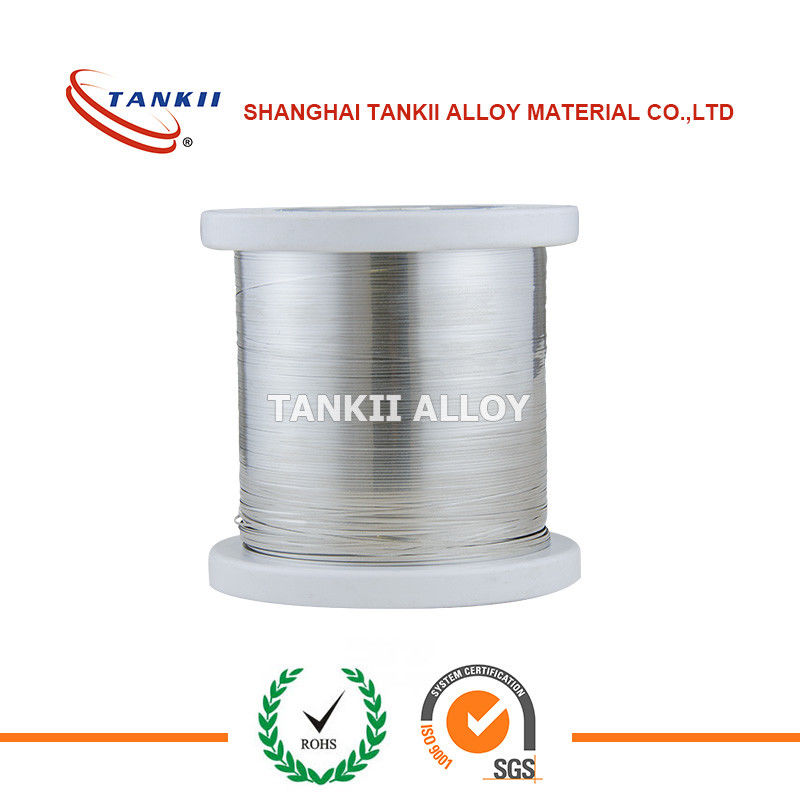

0.6x0.2mm 0.5X0.1mm Bright nichrome Ribbon Ni80cr20 NiCr 80/20 NiCr60/15 NiCr70/30 Flat Wire
NiCr 80/20 :Chromel A, Nikrothal 80, N8, Nichrome V, HAI-NiCr 80, Tophet A, Resistohm
80, Cronix 80, Protoloy, Nikrothal 8, Alloy A, MWS-650, Stablohm 650
Product Description
Ni80Cr20 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life compared to Iron chromium alumium alloys.
Typical applications for Ni80Cr20 are electric heating elements in home appliances,industrial furnaces and resistors(wirewound resistors,metal film resistors), flat irons, ironing machines, water heaters, plastic moulding dies, soldering irons, metal sheathed tubular elements and cartridge elements.
Normal composition%
C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
Max | |||||||||
0.03 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 20.0~23.0 | Bal. | Max 0.50 | Max 1.0 | - |
Properties/Grade | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
Main Chemical composition | Ni | Rest | Rest | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
Fe | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
Max. continuous service temp. of element | 1200 | 1250 | 1150 | 1100 | 1100 | |
Resistivity at 20oC (μΩ·m) | 1.09 | 1.18 | 1.12 | 1.04 | 1.04 | |
Density (g/cm3) | 8.40 | 8.10 | 8.20 | 7.90 | 7.90 | |
Thermal conductivity(KJ/m·h·oC) | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
Coefficient of lines expansion(α×10-6/oC) | 18.0 | 17.0 | 17.0 | 19.0 | 19.0 | |
Melting point (approx.)( oC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
Elongation at rupture (%) | >20 | >20 | >20 | >20 | >20 | |
Micrographic structure | austenite | austenite | austenite | austenite | austenite | |
Magnetic properties | nonmagnetic | nonmagnetic | nonmagnetic | nonmagnetic |
nonmagnetic
|
Packaging & Shipping
Packaging: Products are generally supplied in standard cardboard boxes, pallets, wooden boxes. Special
packaging requirements can also be accommodated. (also depend on the customers' requirements)
For the Thermal spray wires, we pack the wires on spools. Then put spools into cartons, Then put the cartons onto pallet.
Shipping: We cooperation with many logistics company, We can provide express, sea transportation, air transportation, and rail way transportation based on customers' requirement.
Application
OTHER Chemical Composition And Main Properties
1. What's the minimum quantity customer can order?
If we have your size in stock, we can provide any quantity you want.
If we do not have, for spool wire, we can produce 1 spool, about 2-3kg. For coil wire, 25kg.
2. How can you pay for small sample amount?
We have Western union account, wire transfer for sample amount also ok.
3. Customer do not have express account. How will us arrange the delivery for sample order?
Just need to provide your address information, we will check the express cost, you can arrange the express cost together with sample value.
4. What's our payment terms?
We can accept LC T/T payment terms, it also depending on delivery and total amount. Let's talk more in details after getting your detailed requirements.
5. Do you provide free samples?
If you want several meters and we have stock of your size, we can provide, customer need to bear the International express cost.
6. What's our working time?
We will give you reply through email/phone Online contact tool within 24 hours. No matter working day or holidays.
