Product Details
Place of Origin: Shanghai, China.
Brand Name: TANKII
Certification: SGS
Model Number: CuNi44Mn1
Payment & Shipping Terms
Minimum Order Quantity: 10 KG
Price: USD 76.9-123.07 KG
Packaging Details: Wooden case
Delivery Time: 7-12days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Tons per month
Material: |
Cu 55% Ni44% Mn 1% |
Type: |
Constan Tape |
Surface: |
Bright |
Sample: |
Free |
Standard: |
GB/ASTM |
Size: |
0.02x100mm, |
Material: |
Cu 55% Ni44% Mn 1% |
Type: |
Constan Tape |
Surface: |
Bright |
Sample: |
Free |
Standard: |
GB/ASTM |
Size: |
0.02x100mm, |
Stable Resistance Copper Nickel Alloys CuNi44 NC050 Eureka Resistance Strip / Foil 0.02x100mm
Chemical Content, %
|
Ni |
Mn |
Fe |
Si |
Cu |
Other |
ROHS Directive |
|||
|
Cd |
Pb |
Hg |
Cr |
||||||
|
44 |
1% |
- |
- |
Bal |
- |
ND |
ND |
ND |
ND |
Mechanical Properties
|
Max Continuous Service Temp |
400℃ |
|
Resisivity at 20℃ |
0.49±5%ohm mm2/m |
|
Density |
8.9 g/cm3 |
|
Thermal Conductivity |
-6(Max) |
|
Melting Point |
1280℃ |
|
Tensile Strength,N/mm2 Annealed,Soft |
340~535 Mpa |
|
Tensile Strength,N/mm2 Cold Rolled |
680~1070 Mpa |
|
Elongation(anneal) |
25%(Min) |
|
Elongation(cold rolled) |
≥Min) |

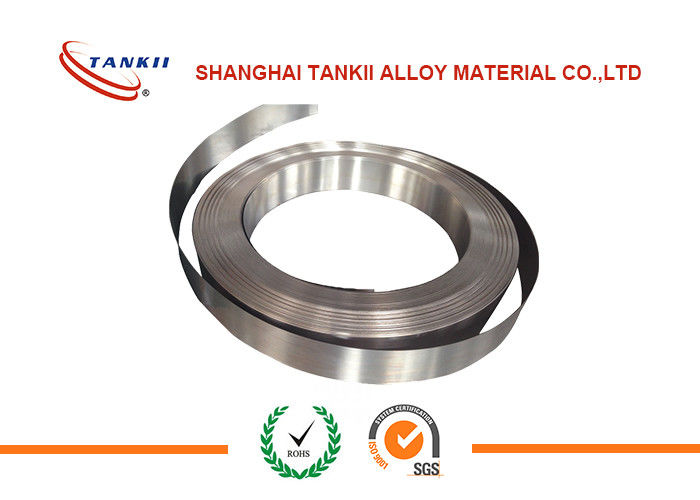

Copper Nickel CuNi44 foil / strip
cuni 44 foil: CuNi resistance Alloy ,Very good resistance to corrosion ,Very good malleability,Very good solder ability
copper nickel alloy cuni 44 foil
CuNi alloy grade: Constantan, CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuMu12Ni, CuNi34, CuNi40 (6J40), CuNi44.
Our CuNi alloy are in the form of wire, ribbon, coil, strip, foil etc.
Characteristics:
1)Manufactured according to international quality. System (ISO9001)
2)Stable resistance and long-life span
3)Mill test certificate will be provided after production
4)Size range wire:.0.018-10mm ribbons: 0.03-0.2*2-6mm strips: 0.005-2.5*1-300mm
5)Good packing methods to keep goods no damage during delivery
6)Customized lable, packing, OEM service
7)24 hours after-sale service
Applications
It could be used to make electric heating element in low-voltage apparatus, such as thermal overload relay, low-voltage circuit breaker, and so on.
Mechanical Properties
| Type |
Electrical resistivity (20degreeΩ mm²/m) |
temperature coefficient of resistance (10^6/degree) |
Dens ity g/mm² |
Max. temperature (°c) |
Melting point (°c) |
| CuNi1 | 0.03 | <1000 | 8.9 | / | 1085 |
| CuNi2 | 0.05 | <1200 | 8.9 |
200 |
1090 |
| CuNi6 | 0.10 | <600 | 8.9 | 220 | 1095 |
| CuNi8 | 0.12 | <570 | 8.9 | 250 | 1097 |
| CuNi10 | 0.15 | <500 | 8.9 | 250 | 1100 |
| CuNi14 | 0.20 | <380 | 8.9 | 300 | 1115 |
| CuNi19 | 0.25 | <250 | 8.9 | 300 | 1135 |
| CuNi23 | 0.30 | <160 | 8.9 | 300 | 1150 |
| CuNi30 | 0.35 | <100 | 8.9 | 350 | 1170 |
| CuNi34 | 0.40 | -0 | 8.9 | 350 | 1180 |
| CuNi40 | 0.48 | ±40 | 8.9 | 400 | 1280 |
| CuNi44 | 0.49 | <-6 | 8.9 | 400 | 1280 |
Our Services
Our Services
1) We can provide a free sample for testing but the freight at yours.
2) Mill test certificate will be provided after production, If it is necessary.
3) Good packing methods to keep goods no damage during delivery
4) We cooperate with many famous forwarder, will try our best to choose the safty, convenience, quick, and cheap mode of transportation for our customers.
