Product Details
Place of Origin: Shanghai, China.
Brand Name: TANKII
Certification: SGS
Model Number: Cu56Ni44
Payment & Shipping Terms
Minimum Order Quantity: 30 KG
Price: USD 19.5-30.6 KG
Packaging Details: Wooden case
Delivery Time: 7-12days
Payment Terms: L/C, T/T, Western Union
Supply Ability: 200 Tons per month
Material: |
Cu 55% Ni44% Mn 1% |
Type: |
Constan Tape |
Surface: |
Bright |
Sample: |
Free |
Standard: |
GB/ASTM |
Size: |
0.2x100mm, |
Material: |
Cu 55% Ni44% Mn 1% |
Type: |
Constan Tape |
Surface: |
Bright |
Sample: |
Free |
Standard: |
GB/ASTM |
Size: |
0.2x100mm, |

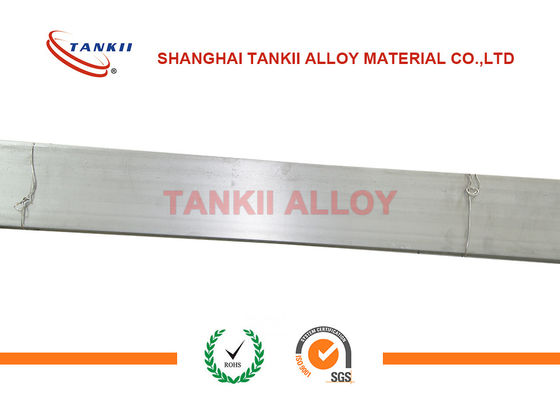

cupro nickel constantan / Konstantan / CuNi44 / CuNi 45 / CuNi 40 alloy strip for circuit breaker
Chemical Content, %
|
Ni |
Mn |
Fe |
Si |
Cu |
Other |
ROHS Directive |
|||
|
Cd |
Pb |
Hg |
Cr |
||||||
|
44 |
1% |
- |
- |
Bal |
- |
ND |
ND |
ND |
ND |
Mechanical Properties
|
Max Continuous Service Temp |
400℃ |
|
Resisivity at 20℃ |
0.49±5%ohm mm2/m |
|
Density |
8.9 g/cm3 |
|
Thermal Conductivity |
-6(Max) |
|
Melting Point |
1280℃ |
|
Tensile Strength,N/mm2 Annealed,Soft |
340~535 Mpa |
|
Tensile Strength,N/mm2 Cold Rolled |
680~1070 Mpa |
|
Elongation(anneal) |
25%(Min) |
|
Elongation(cold rolled) |
≥Min) |

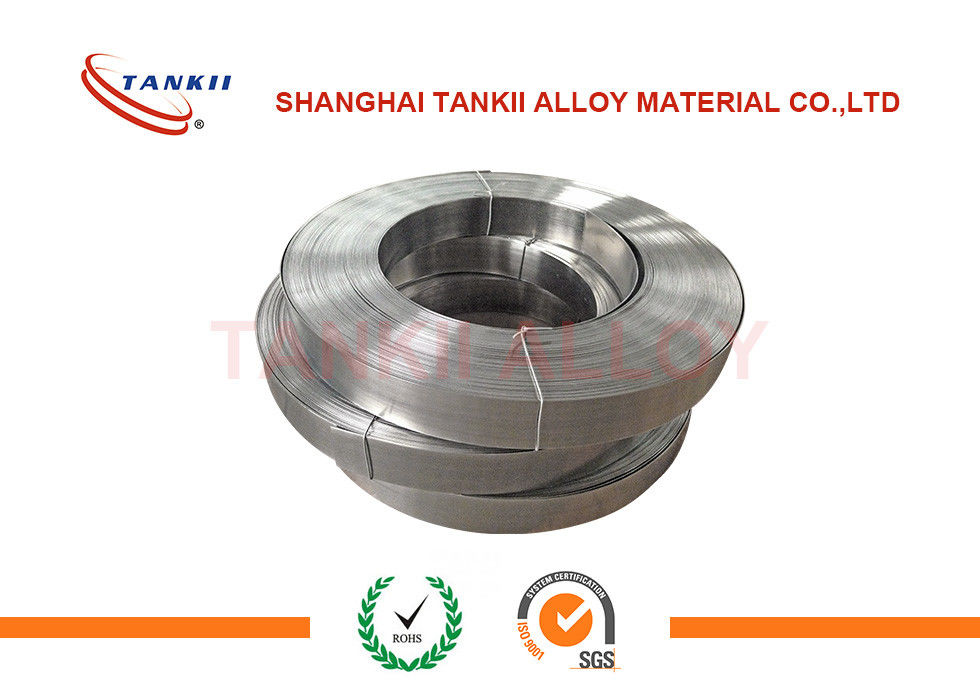

Copper Nickel CuNi44 foil / strip
cuni 44 foil: CuNi resistance Alloy ,Very good resistance to corrosion ,Very good malleability,Very good solder ability
copper nickel alloy cuni 44 foil
CuNi alloy grade: Constantan, CuNi1, CuNi2, CuNi6, CuNi8, CuNi10, CuNi14, CuNi19, CuNi23, CuMu12Ni, CuNi34, CuNi40 (6J40), CuNi44.
Copper nickel alloy sizes:
Wire: 0.018-10mm Ribbons: 0.05*0.2-2.0*6.0mm , Strip: 0.005*5.0-5.0*250mm ,Bars: OD 4-100mm
Our CuNi alloy are in the form of wire, ribbon, coil, strip, foil etc.
Characteristics:
1)Manufactured according to international quality. System (ISO9001)
2)Stable resistance and long-life span
3)Mill test certificate will be provided after production
4)Size range wire:.0.018-10mm ribbons: 0.05-0.2*2-6mm strips: 0.005-2.5*1-300mm
5)Good packing methods to keep goods no damage during delivery
6)Customized lable, packing, OEM service
7)24 hours after-sale service
Applications
It could be used to make electric heating element in low-voltage apparatus, such as thermal overload relay, low-voltage circuit breaker, and so on.
Mechanical Properties
| Type |
Electrical resistivity (20degreeΩ mm²/m) |
temperature coefficient of resistance (10^6/degree) |
Dens ity g/mm² |
Max. temperature (°c) |
Melting point (°c) |
| CuNi1 | 0.03 | <1000 | 8.9 | / | 1085 |
| CuNi2 | 0.05 | <1200 | 8.9 |
200 |
1090 |
| CuNi6 | 0.10 | <600 | 8.9 | 220 | 1095 |
| CuNi8 | 0.12 | <570 | 8.9 | 250 | 1097 |
| CuNi10 | 0.15 | <500 | 8.9 | 250 | 1100 |
| CuNi14 | 0.20 | <380 | 8.9 | 300 | 1115 |
| CuNi19 | 0.25 | <250 | 8.9 | 300 | 1135 |
| CuNi23 | 0.30 | <160 | 8.9 | 300 | 1150 |
| CuNi30 | 0.35 | <100 | 8.9 | 350 | 1170 |
| CuNi34 | 0.40 | -0 | 8.9 | 350 | 1180 |
| CuNi40 | 0.48 | ±40 | 8.9 | 400 | 1280 |
| CuNi44 | 0.49 | <-6 | 8.9 | 400 | 1280 |
