Product Details:
|
| Material: | Ni80%Cr20% | Sample: | Free |
|---|---|---|---|
| Surface: | Bright | Standard: | GB/ASTM |
| Color: | Silver Gray | Thickness: | 0.03-1.0mm |
| Widht: | 0.4-5.0mm, | Resistivity: | 1.09 |
| High Light: | nickel alloys,nichrome wire |
||

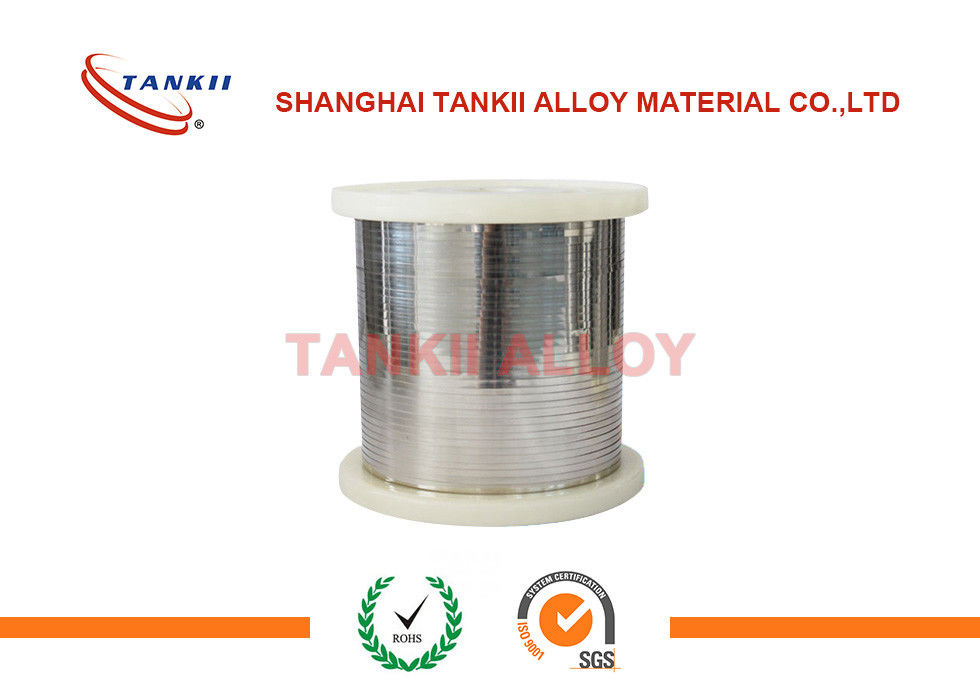

NiCr Alloy NiCr 80/20 NiCr 70/30 NiCr60/15 Ribbon Flat Wire ,Nichrome 80 Strip
NiCr 80/20 :Chromel A, Nikrothal 80, N8, Nichrome V, HAI-NiCr 80, Tophet A, Resistohm
80, Cronix 80, Protoloy, Nikrothal 8, Alloy A, MWS-650, Stablohm 650
1--Product Description
The nichrome resistance wire resistivity is steady, the temperature coefficient is small, the inoxidizability is good, the service life is long, the reasonable price and so on a series of merits, are the industry electric stove, the Household,appliances, in the far infrared installment ideal give off heat the material.
2--- Packaging & Shipping
Environmental protection pallets or Environmental protection box or Environmental protection wooden boxes
3--- Our Services:
We are committed to: a timely and detailed reply to the user advice, in the production, transportation, and after-sales service every link to achieve effective control.
Ni80Cr20 is a nickel-chromium alloy (NiCr alloy) characterized by high resistivity, good oxidation resistance and very good form stability. It is suitable for use at temperatures up to 1200°C,and hold a superior service life compared to Iron chromium alumium alloys.
Typical applications
Cooking:hot plates,domestic ovens,grills,toaster ovens,frying pans,deep fryers,rice cookers.
Water and beverage:boilers,immersion heaters,water kettles,coffee makers,dish washers,washing machines.
Space heating:radiators,storage heaters.
Others:irons,air heaters,oil heaters,glow plugs,sauna heaters
Normal composition%
C | P | S | Mn | Si | Cr | Ni | Al | Fe | Other |
| Max | |||||||||
| 0.03 | 0.02 | 0.015 | 0.60 | 0.75~1.60 | 20.0~23.0 | Bal. | Max 0.50 | Max 1.0 | - |
Chemical Composition
| Properties/Grade | Cr20Ni80 | Cr30Ni70 | Cr15Ni60 | Cr20Ni35 | Cr20Ni30 | |
| Main Chemical composition | Ni | Rest | Rest | 55.0-61.0 | 34.0-37.0 | 30.0-34.0 |
| Cr | 20.0-23.0 | 28.0-31.0 | 15.0-18.0 | 18.0-21.0 | 18.0-21.0 | |
| Fe | ≤1.0 | ≤1.0 | Rest | Rest | Rest | |
| Max. continuous service temp. of element | 1200 | 1250 | 1150 | 1100 | 1100 | |
| Resistivity at 20oC (μΩ·m) | 1.09 | 1.18 | 1.12 | 1.04 | 1.04 | |
| Density (g/cm3) | 8.40 | 8.10 | 8.20 | 7.90 | 7.90 | |
| Thermal conductivity(KJ/m·h·oC) | 60.3 | 45.2 | 45.2 | 43.8 | 43.8 | |
| Coefficient of lines expansion(α×10-6/oC) | 18.0 | 17.0 | 17.0 | 19.0 | 19.0 | |
| Melting point (approx.)( oC) | 1400 | 1380 | 1390 | 1390 | 1390 | |
| Elongation at rupture (%) | >20 | >20 | >20 | >20 | >20 | |
| Micrographic structure | austenite | austenite | austenite | austenite | austenite | |
| Magnetic properties | nonmagnetic | nonmagnetic | nonmagnetic | nonmagnetic | nonmagnetic | |
Style of supply
| Alloys Name | Type | Dimension | ||
| Ni80Cr20W | Wire | D=0.03mm~8mm | ||
| Ni80Cr20R | Ribbon | W=0.4~40 | T=0.03~2.9mm | |
| Ni80Cr20S | Strip | W=8~250mm | T=0.1~3.0 | |
| Ni80Cr20F | Foil | W=6~120mm | T=0.003~0.1 | |
| Ni80Cr20B | Bar | Dia=8~100mm | L=50~1000 | |
