|Material:||High Speed Steel||Usage:||Shield Tunneling Machine|
|Item:||Single Disc Double Disc Cutter Ring Used For Shield Tunneling Machine||Key Word:||Cutter Ring / Disc Ring|

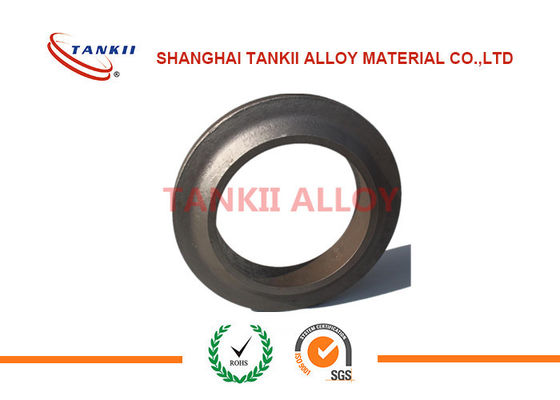

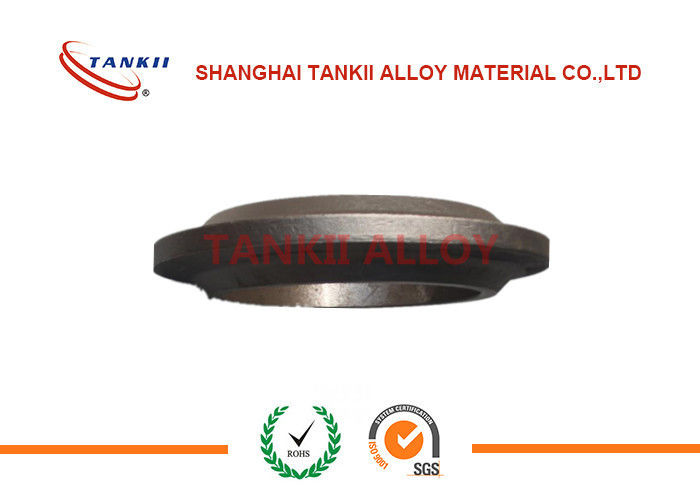

Single blade double blade cutter ring disc ring used for shield tunneling machine
Cutter rings are produced from high-speed steel alloy (H13) in different hardness to accommodate various geological conditions such as clay alluvium, granite, dolomite, basalt, and limestone. The diameter varies from 12″ to 21".
The quality and lifetime of the excavation tools have a noticeable effect on the tunnelling performance and the economic efficiency of mechanized tunnelling. The high material quality of the tools ensures the productive removal of soil or rock on the one hand, and low downtimes due to high durability on the other. The excavation tools are installed on the cutterhead - in soft ground called cutting wheel. With the rotational movement of the cutterhead and the thrust of the hydraulic jacking stations, the excavation tools loosen the rock and / or the soil at the tunnel face. Depending on the geology, the cutterhead is equipped with cutting knives and / or disc cutters (discs) or rippers. To ensure that a project remains within the calculated budget, also with respect to tooling, the excavation tools must perform as forecast even with extremely high rock strengths, abrasion and water pressures.
The nature of the ground conditions determines the choice and positioning of the excavation tools for the cutterhead or the cutting wheel. Only if the tools are perfectly matched to the geology, the TBM can achieve high tunnelling performances. However, the respective ground conditions challenge the reliability of the tools in different places. In soft soils, precautions must be taken to stop the disc cutters from getting clogged. During excavation in hard rock, such as granite, the disc cutters must pass the absolute hardness test.
The correct steel mixture and an exact work process are of crucial importance in the materials composition and production of the disc cutters. The high-alloy tool steel of the cutting ring must not only be very hard to resist wear, the material toughness is also an important factor for its lifetime. Excessively brittle steel would lead to early material spalling at the cutting ring during rock bursts, which happen occasionally. Excavation tools up to 8 inches for smaller excavation diameters are also made of high-alloy tool steel.
In addition to the geology, limited space at the cutterhead and the maximum possible load on the disc cutter bearings are also crucial factors when choosing the appropriate tool size. A wide range of cutting knives, buckets, rippers and other tools complement the spectrum for operations in loose soils. With respect to these types of tools, the durability and material composition are also key factors in optimizing time and costs. The durability of the excavation tool edges and/or teeth is improved enormously by soldering carbide metal – tungsten carbide. Depending on the geology, cutting knives, buckets and rippers are given a welded hardfacing on the tool body to protect it against abrasive soil paste.
Advantages of cutter ring:
+ In-house manufacturing of high-quality excavation tools
+ Rapid and worldwide delivery of all common excavation tools for soft ground and hard rock
+ Longer life time of the ring, to save cost for you.
+ Customized tooling as per your request
+ Lower cost
Shanghai Tankii Alloy Material Co., Ltd. specialized in production of Resistance Heating Alloy, Nickel Chromium Alloy, Iron Chromium Aluminum Alloy, high speed steel products etc.
Based on the principle of "first quality, sincere service", our managing ideology is pursuing technology innovation and creating the top brand in the alloy field. We persist in Quality - the foundation of the survival. It is our forever ideology to serve you with full heart and soul. We committed to provide customers all over the world with high-quality, competitive products and perfect service.
Our products, such us nichrome wire, nichrome strip, fecral wire, fecral strip, thermocouple wire, nickel wire, nickel strip have been exported to Europe, USA, India, Southest Asia, South America,etc.
We are willing to establish strong and long-time partnership with our customers
Your inquiry is a gift for us, your reply is a trust to us, your trust will bring us to provide you the best services in the business.
Please email or call us if there is need on cutter ring. we will do our best to meet your requirment.
